ASR35HDS06
Go off-the-grid with your camper. Tow your hunting trailer to remote trails. Take your custom rig on that overland trek.
Our HD Axle-Less trailer suspensions are built exclusively for off-roading and overlanding. With no through axle to cause hang-ups, you’ll experience exceptional ground clearance. And as an independent trailer suspension, you’ll maintain maximum control of your rig over rough off-road terrain.
Components made from heavy-gauge steel support the increased demands of off-road use. And our softer Aeon® rubber spring allows for more suspension travel without compromising strength or capacity.
Shims are also supplied giving you the option to adjust, if necessary, the suspension alignment and camber specific to your trailer frame. Polyurethane bushings — used at the pivot point on the control arm — hold the pin firmly in place, resulting in better stability and a more controlled alignment with each moving component.
Durable and weather-resistant, these suspensions are built to last in any environment, from the heat of the Australian Outback to the sub-freezing winters of Canada.
So you can tow anywhere you go — and enjoy a smooth, quiet ride along the way.

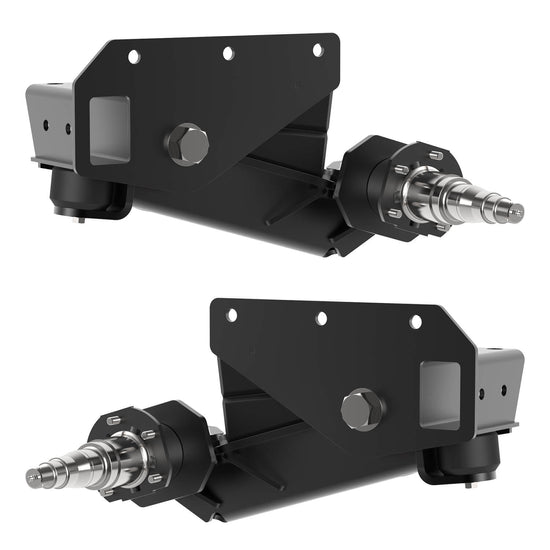

Each Axle-Less trailer suspension kit comes with both driver and passenger side to give you a full suspension.
Key Features
- 2” lift outboard arms gives you extra ground clearance
- Long spindles for use with wider off-road tires larger than 235/85R16
- Components made from heavy-gauge steel support off-road and overland demands
- HD gussets for maximum reinforcement
- Patented Aeon® hollow rubber spring for smooth, quiet ride empty or loaded
- Polyurethane bushings balance out performance, durability and comfort
- Brake flange Included for optional brakes
- Durable powder coat finish
- Easy bolt-on installation
- No thru axle
Specs
- Heavy duty 3500 lb trailer suspension capacity
- Heavy duty outboard arms with 2” lift and long spindles for tires larger than 235/85R16
Weights and Dimensions
