TA303A-SB03B
ITEM DESCRIPTION
| APPLICATION | IN/EX | ① HEAD DIA.(mm) |
② STEM DIA(mm) |
③ LENGTH(mm) |
| FA20 2014+ |
IN | 35.00 [STD] |
5.46 | 105.00 |
| EX | 29.00 [STD] |
5.45 | 97.70 |
| RAND | ENGINE | MODEL | IN/EX | VALVE PART NO. | VALVE SET PART NO. | Head Diam | Stem Diam | Length |
|---|---|---|---|---|---|---|---|---|
| NISSAN | VR38DETT | GT-R R35 | IN | TA303D-NS01A | TA303A-NS01A | 38.15mm (+1.0) | 5.96mm | 95.00mm |
| EX | TA303E-NS01A | 33.15mm (+1.0) | 5.95mm | 92.00mm | ||||
| VQ35DE | 350Z/G35 | IN | TA303D-NS04A | TA303A-NS04A | 38.15mm (+1.0) | 5.96mm | 96.60mm | |
| EX | TA303E-NS04A | 32.35mm (+1.0) | 5.97mm | 94.00mm | ||||
| VG30DETT | 300ZX Z32 | IN | TA303D-NS10A | TA303A-NS10A | 34.50mm (+0.5) | 5.97mm | 103.15mm | |
| EX | TA303E-NS10A | 30.00mm (+0.5) | 5.97mm | 103.70mm | ||||
| RB26DETT | GT-R R32/R33/R34 | IN | TA303D-NS05A | TA303A-NS05A | 35.65mm (+1.0) | 5.97mm | 102.30mm | |
| EX | TA303E-NS05A | 31.15mm (+1.0) | 6.94mm | 101.20mm | ||||
| KA24DE | 240SX | IN | TA303D-NS16A | TA303A-NS16A | 37.10mm (+0.5) | 6.97mm | 101.32mm | |
| EX | TA303E-NS16A | 32.00mm (+0.7) | 6.94mm | 99.00mm | ||||
| SR20DET | R(P)S13/S14/S15 | IN | TA303D-NS08A | TA303A-NS08A | 35.15mm (+1.0) | 5.97mm | 101.40mm | |
| EX | TA303E-NS08A | 31.15mm (+1.0) | 6.94mm | 102.40mm | ||||
| TOYOTA | 2JZ | SUPRA JZA80 | IN | TA303D-TY03A | TA303A-TY03A | 34.50mm (+1.0) | 5.98mm | 98.55mm |
| EX | TA303E-TY03A | 30.00mm (+1.0) | 5.97mm | 99.10mm | ||||
| TOYOTA/SCION | FA20 | FR-S 2013 | IN | TA303D-SB03A | TA303A-SB03A | 35.00mm (STD) | 5.46mm | 103.30mm |
| EX | TA303E-SB03A | 29.00mm (STD) | 5.45mm | 95.15mm | ||||
| FR-S 2014-2016 86 2017+ | IN | TA303D-SB03B | TA303A-SB03B | 35.00mm (STD) | 5.46mm | 105.00mm | ||
| EX | TA303E-SB03B | 29.00mm (STD) | 5.45mm | 97.70mm | ||||
| SUBARU | EJ20/EJ25 | WRX 2004-2014 | IN | TA303D-SB01A | TA303A-SB01A | 37.00mm (+1.0) | 5.96mm | 104.35mm |
| EX | TA303E-SB01A | 33.00mm (+1.0) | 5.96mm | 104.70mm | ||||
| FA20 | BRZ 2013 | IN | TA303D-SB03A | TA303A-SB03A | 35.00mm (STD) | 5.46mm | 103.30mm | |
| EX | TA303E-SB03A | 29.00mm (STD) | 5.45mm | 95.15mm | ||||
| BRZ 2014+ | IN | TA303D-SB03B | TA303A-SB03B | 35.00mm (STD) | 5.46mm | 105.00mm | ||
| EX | TA303E-SB03B | 29.00mm (STD) | 5.45mm | 97.70mm | ||||
| FA20DIT | WRX 2015+ | IN | TA303D-SB03B | TA303A-SB04A | 35.00mm (+1.0) | 5.46mm | 105.00mm | |
| EX | TA303E-SB04A | 30.00mm (+1.0) | 5.45mm | 97.70mm | ||||
| MITSUBISHI | 4G63 | EVO1-9 | IN | TA303D-MT01A | TA303A-MT01A | 35.00mm (+1.0) | 6.57mm | 109.60mm |
| EX | TA303E-MT01A | 31.50mm (+1.0) | 6.54mm | 109.60mm | ||||
| 4B11 | EVO10 | IN | TA303D-MT02A | TA303A-MT02A | 36.00mm (+1.0) | 5.47mm | 113.25mm | |
| EX | TA303E-MT02A | 30.00mm (+1.0) | 5.46mm | 105.90mm | ||||
| HYUNDAI | G4KF | GENESIS COUPE 2010-2012 | IN | TA303D-MT02A | TA303A-MT02A | 36.00mm (+1.0) | 5.47mm | 113.25mm |
| EX | TA303E-MT02A | 30.00mm (+1.0) | 5.46mm | 105.90mm | ||||
| HONDA | K20/K24 | CIVIC EP/FD/FN/FK | IN | TA303D-HN01A | TA303A-HN01A | 36.00mm (+1.0) | 5.48mm | 108.85mm |
| EX | TA303E-HN01A | 30.50mm (+1.0) | 5.45mm | 108.65mm | ||||
| B16A/B17A/B18C | CIVIC EK/INTEGRA DC | IN | TA303D-HN03A | TA303A-HN03A | 34.00mm (+1.0) | 5.48mm | 102.50mm | |
| EX | TA303E-HN03A | 28.50mm (+0.5) | 5.45mm | 102.50mm |

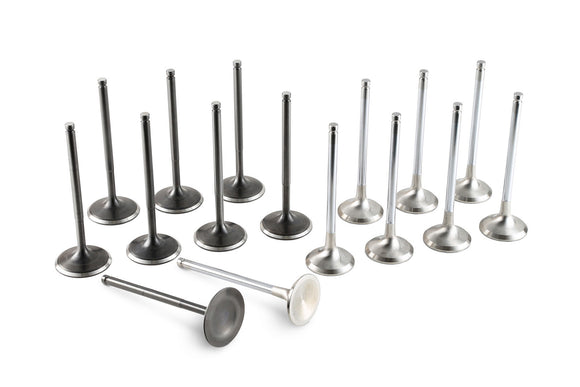

HIGH-FLOW, ULTRA DURABLE,
HEAT RESISTANT RACE SPEC VALVES
Designed to withstand high power applications
OVERSIZED VALVES
 |
The oversized head diameter is designed specifically for each application, significantly improving the flow rate. (Excl. FA20) |
WAISTED STEM
 |
 |
The waisted stem allows a greater volume of air/gases to enter and exit the combustion chamber as the valve extends. (not available on some models)
ENGINE SPECIFIC DESIGN
 |
|
Each valve is designed and precision machined specifically for the intended engine/application.The head, face, stem and lock groove designs have also been optimized to enhance sealing performance, efficiency and durability.
HEAT RESISTANCE & DURABILITY
INTAKE
SUH35 HEAT RESISTANT STEEL
with SPECIALLY FORMULATED COATING.
The intake valves are made using SUH35 HEAT RESISTANT STEEL which is more commonly used to make exhaust valves. These are then coated with a special formula that further improves the valves' resistance to heat, wear and corrosion.
EXHAUST
INCONEL 751 ALLOY
In order to withstand temperatures of up to around 1000℃, the exhaust valves are made using a nickel based heat resistant alloy, INCONEL 751.
IN&EX COMPLETE SET
Although sold as an IN&EX complete set, each valve can also be purchased individually.
