TOMEI FULL TITANIUM MUFFLER KIT EXPREME Ti ER34 2 DOOR

1999-2002 Nissan Skyline R34 Extereme Ti Full Titanium Muffler Kit by Tomei

The flexibility of the spring helps prevent cracks from vibrations, Whilst these spring provide a secure connection between each section, the clamp bands and slits on the pipe ends offer additional reassurance when installing.

The silencer casing is made with exhaust efficiency in mind. Each unit is embossed with our logo then polished and heat treated for our signature look.

The all titanium 1mm thick inner tube features 3 perforation spaced 5mm apart to achieve an open area ration of 32.6%. Using titanium maximizes weight reduction and durability whilst also providing that distint racing sound.

Long fiber glass wool is used in all of our silencers. Compared to short fiber glass wool, longer fibers are much more resiliant to wear especially against prolonged high temperature/pressure conditions.

Although conventional pressed flanges are lighter, our flanges are cut from 8mm thick titanium, making them more resistant to cracking and warping. In addition, the opening diameter is kept the same as stock to ensure a secure seal.

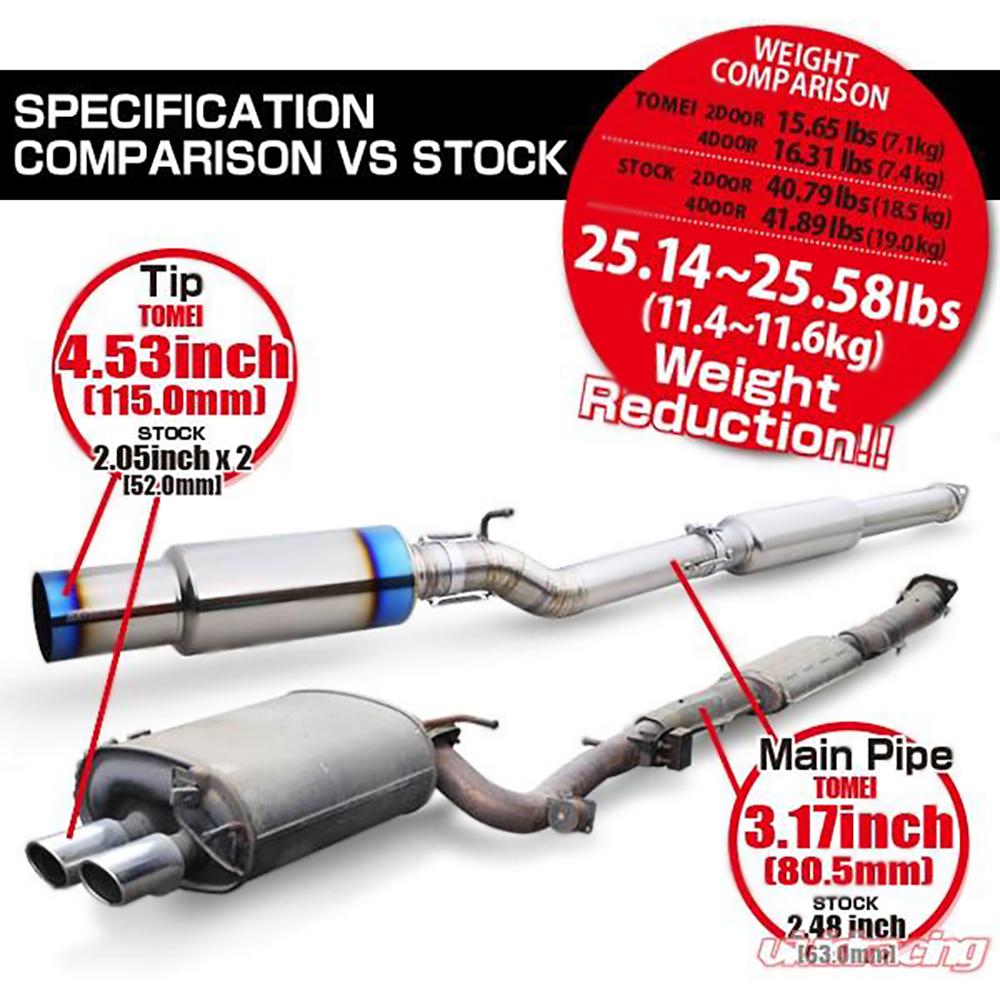

Features

• Material: Titanium
• Main Pipe Diameter: 80.5mm
• Main Pipe Thickness: 1.0mm
• Center Silencer Diameter: 118.0mm
• Center Silencer Thickness: 1.0mm
• Main Silencer Diameter: 152.0mm
• Main Silencer Thickness: 1.0mm
• Exit Diameter: 115.0mm
• Exit Thickness 1.0mm
• Weight: 15.65 lbs
• Original Titanium Material
• Lightweight, Strong, Durable
• 3pc Assembly
• Joint Springs
• Perforated Tube
• Long Fiber Glass Wool
• 8mm Thick Titanium Flanges

Benefits

• Improved Performance
• Louder and More Aggressive Exhaust Note

Applications

• 1999-2002 Nissan Skyline

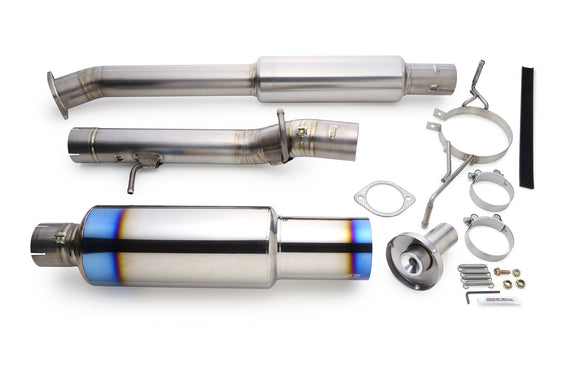

What's In The Box?

• 1 - Main Pipe A
• 1 - Main Pipe B
• 1 - Silencer
• 1 - Silencer Band
• 1 - Flange Gasket 80-2-115
• 2 - Flange Nut M10 P1.25
• 2 - 79-85 Clamp Band
• 4 - Spring
• 1 - 152mm Silencer Band Rubber
• 1 - Flange Bolt M8 P1.25 25mm
• 1 - Flange Nut M8 P1.25
• 1 - Sound Reducer Ver.2 115
• 1 - Hex Key
• 1 - Bolt Smooth Paste

Warranty

• Tomei's Limited Manufacturer's Warranty
