2063
Description

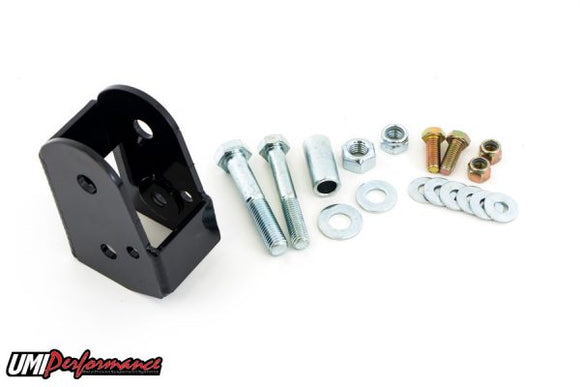

UMI’s 3rd and 4th Generation GM F-body Panhard bar lowering bracket is designed to lower the driver’s side Panhard bar mounting point by 2-¼” and fits the factory axle. The 2063 works in conjunction with UMI P/N 2024 to prevent panhard bar interference on lowered vehicles. It can also be used to relocate when using other manufacturers panhard bar relocation kits. Requires drilling of two ⅜” holes for anti-rotation hardware. Available in gloss black powder coat only. 100% designed, manufactured and raced with pride in the USA.
Features:
- For use with factory axle only. May fit Strange rear ends without modifications.
- Lowers axle side (driver’s) PHB mount by 2-¼”.
- 100% bolt-in for street use.
- Laser cut and jig built for accuracy.
- Includes high grade hardware.
- Supplied powder coated UMI Gloss Black.
Tech tip:
- Works in conjunction with UMI P/N 2024 to prevent panhard bar brace and panhard bar contact on lowered vehicles.
- Will work with other brand panhard bar relocation kits.
MAKE MODEL YEAR Make Model Year Chevrolet Camaro 1982 Chevrolet Camaro 1983 Chevrolet Camaro 1984 Chevrolet Camaro 1985 Chevrolet Camaro 1986 Chevrolet Camaro 1987 Chevrolet Camaro 1988 Chevrolet Camaro 1989 Chevrolet Camaro 1990 Chevrolet Camaro 1991 Chevrolet Camaro 1992 Chevrolet Camaro 1993 Chevrolet Camaro 1994 Chevrolet Camaro 1995 Chevrolet Camaro 1996 Chevrolet Camaro 1997 Chevrolet Camaro 1998 Chevrolet Camaro 1999 Chevrolet Camaro 2000 Chevrolet Camaro 2001 Chevrolet Camaro 2002 Pontiac Firebird 1982 Pontiac Firebird 1983 Pontiac Firebird 1984 Pontiac Firebird 1985 Pontiac Firebird 1986 Pontiac Firebird 1987 Pontiac Firebird 1988 Pontiac Firebird 1989 Pontiac Firebird 1990 Pontiac Firebird 1991 Pontiac Firebird 1992 Pontiac Firebird 1993 Pontiac Firebird 1994 Pontiac Firebird 1995 Pontiac Firebird 1996 Pontiac Firebird 1997 Pontiac Firebird 1998 Pontiac Firebird 1999 Pontiac Firebird 2000 Pontiac Firebird 2001 Pontiac Firebird 2002
