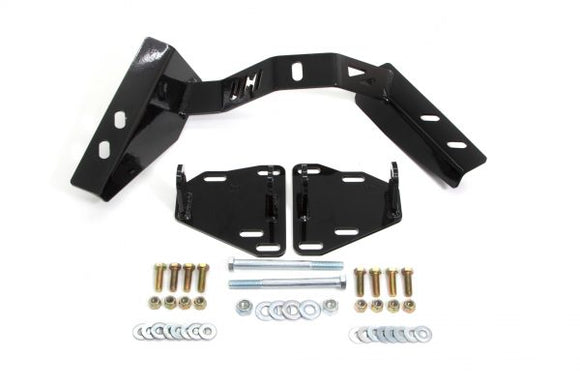

UMI Performance 82-92 GM F-Body LS/T56 Swap Kit

UMI Performance 82-92 GM F-Body LS/T56 Swap Kit

$394.39 CAD

UMI Performance SKU: umi223910-B

Earn [points_amount] when you buy this item.

Description Availability

223910-B

Description

The UMI Performance P/N 2410 LS engine mount places the popular LS engine on the factory k-member in the stock Small Block Chevy location. The design includes “stock” crankshaft height as well as slots to adjust fore/aft location. This strong, laser cut 3/16″ and 1/4″ thick mount accepts most engine-side mounts intended for 1998-2002 Camaro such as UMI 2323, 2328 as well as GM 22179268. 100% Made In USA.

  • For LSX engine swap into 3rd Gen Camaro/Firebird with stock k-member.
  • Clean, tight fit.
  • 3/4″ adjustment fore and aft.
  • Laser cut 3/16″ and 1/4″ USA steel, jig built for accuracy.
  • Use UMI 2323, 2328 or GM 22179268 engine-side mount.
  • Pairs Nicely with UMI T56 Transmission Crossmember, 2239.
  • 100% Made In USA

The UMI Performance P/N 2239 T56 transmission mount locates the popular T56 transmission in the 3rdGen GM F-Body. The design features maximum exhaust clearance as well as fore/aft adjustment of 3/4″. This strong, laser cut 3/16″ and 1/4″ thick mount accepts most common, universal transmission mounts. The use of an aftermarket torque arm such as UMI 2235/2236 is required, as the mount does not have a torque arm provision. 100% Made In USA.

  • For T56 swap into 3rd Gen Camaro/Firebird.
  • Maximum exhaust clearance.
  • Clean, tight fit.
  • 3/4″ adjustment fore and aft
  • CNC laser cut.
  • Pairs nice with UMI 2410 LS swap engine mounts.
  • Requires use of a short torque arm such as 2235/2236
    MAKE MODEL YEAR
    Make Model Year
    Chevrolet Camaro 1982
    Chevrolet Camaro 1983
    Chevrolet Camaro 1984
    Chevrolet Camaro 1985
    Chevrolet Camaro 1986
    Chevrolet Camaro 1987
    Chevrolet Camaro 1988
    Chevrolet Camaro 1989
    Chevrolet Camaro 1990
    Chevrolet Camaro 1991
    Chevrolet Camaro 1992
    Pontiac Firebird 1982
    Pontiac Firebird 1983
    Pontiac Firebird 1984
    Pontiac Firebird 1985
    Pontiac Firebird 1986
    Pontiac Firebird 1987
    Pontiac Firebird 1988
    Pontiac Firebird 1989
    Pontiac Firebird 1990
    Pontiac Firebird 1991
    Pontiac Firebird 1992

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
