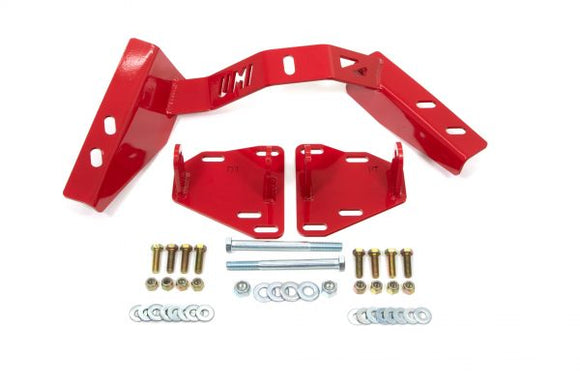

UMI Performance 82-92 GM F-Body LS/T56 Swap Kit

223910-R

Description

The UMI Performance P/N 2410 LS engine mount places the popular LS engine on the factory k-member in the stock Small Block Chevy location. The design includes “stock” crankshaft height as well as slots to adjust fore/aft location. This strong, laser cut 3/16″ and 1/4″ thick mount accepts most engine-side mounts intended for 1998-2002 Camaro such as UMI 2323, 2328 as well as GM 22179268. 100% Made In USA.

• For LSX engine swap into 3^rd Gen Camaro/Firebird with stock k-member.
• Clean, tight fit.
• 3/4″ adjustment fore and aft.
• Laser cut 3/16″ and 1/4″ USA steel, jig built for accuracy.
• Use UMI 2323, 2328 or GM 22179268 engine-side mount.
• Pairs Nicely with UMI T56 Transmission Crossmember, 2239.
• 100% Made In USA

The UMI Performance P/N 2239 T56 transmission mount locates the popular T56 transmission in the 3^rdGen GM F-Body. The design features maximum exhaust clearance as well as fore/aft adjustment of 3/4″. This strong, laser cut 3/16″ and 1/4″ thick mount accepts most common, universal transmission mounts. The use of an aftermarket torque arm such as UMI 2235/2236 is required, as the mount does not have a torque arm provision. 100% Made In USA.

• For T56 swap into 3^rd Gen Camaro/Firebird.
• Maximum exhaust clearance.
• Clean, tight fit.
• 3/4″ adjustment fore and aft
• CNC laser cut.
• Pairs nice with UMI 2410 LS swap engine mounts.
• Requires use of a short torque arm such as 2235/2236
