230511-R
Description

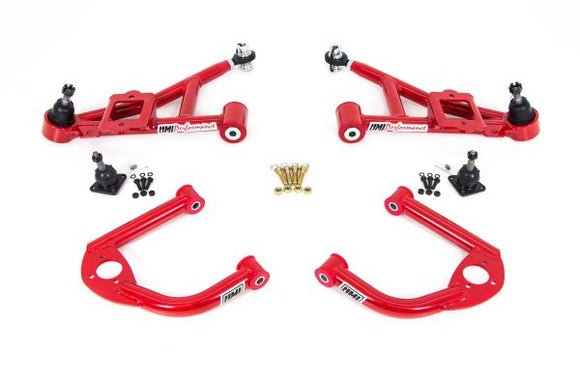

UMI’s fabricated tubular a-arms provide a rock solid foundation for your 4th Gen’s front suspension. Our a-arm kit is built to offer increased rigidity, smooth travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and welded in a jig to form the solid base. The in-house built 4130 chromoly tube adapter on the lower a-arm provides a durable attachment point for the precision rod-end while the other side features a smooth, quiet bind free polyurethane bushing. The lower a-arms feature UMI’s new bind free bushing end that uses a two piece heavy duty sleeve that allows the a-arm to pivot freely while the upper a-arms use street friendly greasebale polyurethane bushings. The unique combination of precision and comfort makes for a great street oriented a-arm kit with racing tendencies. The spring and shock attach to the lower arm via a tough 1/4” thick steel shock mount. The CNC machined lower ball joint cup and CNC laser cut upper pad feature premium ball joints installed. UMI’s tubular lower a-arms can be installed on the factory k-member or any aftermarket k-member as well as the stock spindle – making this a true bolt-on product. Manufactured with pride in Philipsburg, PA – USA
Hardware kit P/N 2303 – A-arm hardware kit includes Grade 10.9 bolts, washers and Ny-lock nuts. Kit includes everything needed to mount your new UMI a-arms to the vehicle.
Chromoly – Chromoly version uses 1-1/4” 4130 chromoly tubing, maintaining strength and reducing product weight by an additional 2lbs giving a total weight reduction of 10lbs. P/N 230511CM.
Features:
- 1-1/4” USA mild steel DOM tubing
- TIG Welded 4130 chromoly threaded tube adapters for thread durability
- CNC machined lower ball joint cup
- Heavy duty CNC laser cut ¼” thick shock mount
- Premium upper and lower ball joints installed
- ¾” Teflon lined, high load capacity race rod ends
- Greaseable polyurethane bushings
- High grade shock mounting hardware included
- Uses balance of OEM hardware or use new UMI hardware kit
- Durable red or black powder coat
- Made in Philipsburg, PA – USA
MAKE MODEL YEAR Make Model Year Chevrolet Camaro 1993 Chevrolet Camaro 1994 Chevrolet Camaro 1995 Chevrolet Camaro 1996 Chevrolet Camaro 1997 Chevrolet Camaro 1998 Chevrolet Camaro 1999 Chevrolet Camaro 2000 Chevrolet Camaro 2001 Chevrolet Camaro 2002 Pontiac Firebird 1993 Pontiac Firebird 1994 Pontiac Firebird 1995 Pontiac Firebird 1996 Pontiac Firebird 1997 Pontiac Firebird 1998 Pontiac Firebird 1999 Pontiac Firebird 2000 Pontiac Firebird 2001 Pontiac Firebird 2002
