2309-B
Description

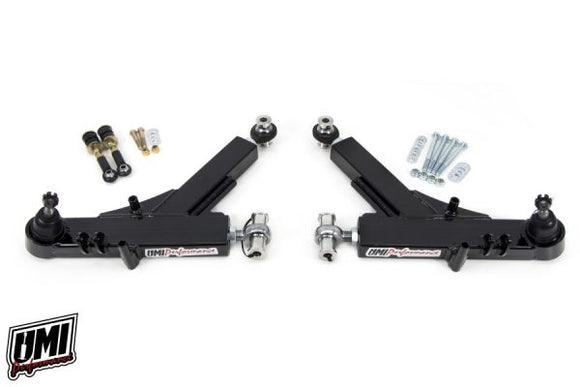

UMI’s heavy duty boxed lower a-arms P/N 2309 with dual rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4th Gen. The a-arms fully gusseted box tubing construction, while appearing robust, affords a five pound weight savings per set over factory lower a-arms. The tube adapters for mounting the rod ends are crafted from 4140 CrMo steel to enhance thread durability and guarantee years of trouble free use. Revised ball joint location adds a nominal 2 degree caster increase. These arms have double shear sway bar mount tabs with endlink set included. These A-arms are designed to work with the factory K-member, UMI k-members, and virtually all aftermarket K-members. Crafted with pride in Philipsburg, PA- USA.
Hardware kit, Part # 2301 – Lower a-arm hardware kit includes Grade 10.9 bolts, washers and lock nuts.
Product features:
- 0.120” wall mild steel box tubing
- 5lbs lighter than factory a-arms
- Double shear sway bar mount with endlink set included
- Pedestal mount fits DeCarbon, Koni, Bilstein and aftermarket GM t-bar
- Nominal 2 degree caster increase potential
- Double gusset design for flex-free operation
- TIG welded 4140 CrMo threaded tube adapters
- Premium ball joints installed
- Race quality high misalignment rod end on vertical mount
- CNC machined ball joint cups, tubing radiuses & mounting plates
- Available in red or black powder coat
- Uses OEM hardware or UMI P/N 2301
- 100% Made In USA
MAKE MODEL YEAR Make Model Year Chevrolet Camaro 1993 Chevrolet Camaro 1994 Chevrolet Camaro 1995 Chevrolet Camaro 1996 Chevrolet Camaro 1997 Chevrolet Camaro 1998 Chevrolet Camaro 1999 Chevrolet Camaro 2000 Chevrolet Camaro 2001 Chevrolet Camaro 2002 Pontiac Firebird 1993 Pontiac Firebird 1994 Pontiac Firebird 1995 Pontiac Firebird 1996 Pontiac Firebird 1997 Pontiac Firebird 1998 Pontiac Firebird 1999 Pontiac Firebird 2000 Pontiac Firebird 2001 Pontiac Firebird 2002
