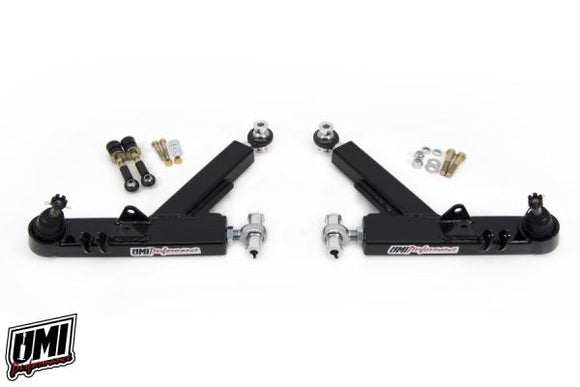

UMI Performance 93-02 GM F-Body Boxed Lower A-Arms- Competition Rod Ends

2314-B

Description

UMI’s heavy duty boxed lower a-arms P/N 2314 with dual rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4^th Gen. The a-arms fully gusseted box tubing construction combines strength with a five pound weight savings per set over factory lower a-arms. Shock mounting is double shear with a ½” dia x 1-¼” width racing coilover mount – suitable for most racing coilover systems. Revised ball joint location adds a nominal 2 degrees caster increase. These arms have double shear sway bar mount tabs with endlink set included. P/N 2314 is designed to work with the factory K-member, UMI k-members, and virtually all aftermarket K-members. Crafted with pride in Philipsburg, PA- USA.

Hardware kit, Part # 2301 – Lower a-arm hardware kit includes Grade 10.9 bolts, washers and lock nuts.

Product note – Not for use with t-bar lower. Requires 1/2″ diameter racing lower with bearing only.

Product features:

• 0.120” wall mild steel box tubing
• ½” dia x 1-¼” width racing coilover mount
• 5lbs lighter than factory a-arms
• Double shear sway bar mount with endlink set included
• Nominal 2 degree caster increase potential
• Double gusset design for flex-free operation
• TIG welded 4140 CrMo threaded tube adapters
• Premium ball joints installed
• Race quality high misalignment rod end on vertical mount
• CNC machined ball joint cups, tubing radiuses & mounting plates
• Available in red or black powder coat
• Uses OEM hardware or UMI P/N 2301
• 100% Made In USA
• Trusted by UMI Performance, Sam Strano, Nathan Popp, Wayne Furr, Mike Stewart

  MAKE	MODEL	YEAR
  Make	Model	Year
  Chevrolet	Camaro	1993
  Chevrolet	Camaro	1994
  Chevrolet	Camaro	1995
  Chevrolet	Camaro	1996
  Chevrolet	Camaro	1997
  Chevrolet	Camaro	1998
  Chevrolet	Camaro	1999
  Chevrolet	Camaro	2000
  Chevrolet	Camaro	2001
  Chevrolet	Camaro	2002
  Pontiac	Firebird	1993
  Pontiac	Firebird	1994
  Pontiac	Firebird	1995
  Pontiac	Firebird	1996
  Pontiac	Firebird	1997
  Pontiac	Firebird	1998
  Pontiac	Firebird	1999
  Pontiac	Firebird	2000
  Pontiac	Firebird	2001
  Pontiac	Firebird	2002
