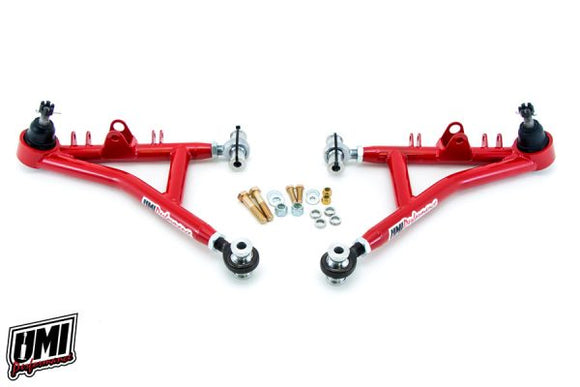

UMI Performance 93-02 GM F-Body Tubular Lower A-arms CrMo Drag Race

2317-R

Description

UMI’s drag specific lower a-arms for 1993-2002 GM F-body are designed to help shed weight while still providing plenty of strength. These race-worthy lower a-arms save 5 lbs per side and accept most major brands of racing coilovers with the ½” x 1-¼” wide mount. There are provisions for a travel limiting chain and also an optional sway bar tab for street use. Strong CrMo tube construction and our newly redesigned tube configuration ensures performance and safety whether you’re landing a wheel stand or powering through the traps at 160+. These arms come assembled with premium ball joints, race quality rod ends and are ready to bolt on.

Optional hardware kit P/N 2301 – A-arm hardware kit includes Grade 10.9 bolts, washers and Ny-lock nuts. Kit includes everything needed to mount your new UMI a-arms to the vehicle.

Product note – Not for use with t-bar lower. Requires 1/2″ diameter racing lower with bearing only.

• Direct bolt-in for 1993-2002 GM F-body.
• 10lbs of weight savings
• Strong yet lightweight CrMo construction.
• Combine with UMI upper adjustable arms to achieve 6-8+ degrees caster.
• Uses racing industry standard ½” shock mount, up to 1-¼” wide.
• Maintains factory track width.
• Heavy duty double reinforced ball joint cup.
• Race quality rod ends including high misalignment rod end on rear strut.
• Sway bar mount installed. Use optional sway bar end link P/N 2649.
• Limiter chain mount installed.
• Factory ball joint installed.
• 100% manufactured, tested and raced out of Philipsburg, PA – USA

2317 Installation Instructions
