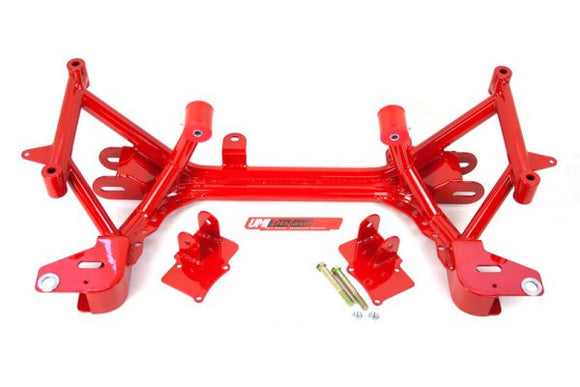

UMI Performance 93-02 GM F-Body K-Member SBC/BBC Motor Mounts

2322-R

Description

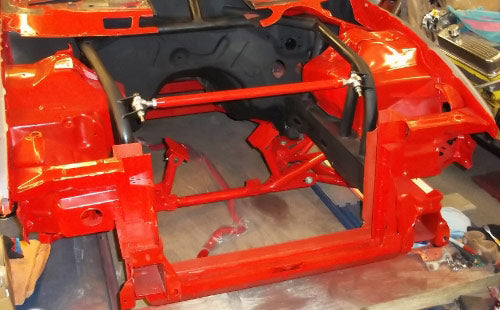

The UMI Performance big block/small block K-member allows the installation of a traditional Chevrolet small block or big block into a 1993-2002 Camaro or Firebird. The UMI tubular K-member features integrated polyurethane mount mounts and fabricated mounting clam shells for maximum weight savings and installation ease. K-member includes power steering rack mounts and is a direct bolt in application.

Note: Although this K-member allows easy installation of a small block or big block Chevrolet engine modifications to firewall and other areas may be necessary for proper engine clearance.

Build Features:
– Main center tube constructed of 1.500” x 0.120” DOM seamless steel tubing
– Additional cross braces use 1.250” x 0.120” DOM seamless steel tubing
– Entire K-Member features both TIG & MIG welded construction for superior strength
– Front & rear A-Arm mounts CNC machined & fabricated from 0.188″ thick steel
– Rear A-Arm mounts gusseted to with-stand extreme side loads & pressure
– Dual tube center section adds increased strength over any competitors design
– All mounting plates are CNC machined to insure hole to hole accuracy
– Factory locator pins included for easy installation & exact fit
– Completely fixture welded to insure factory fitment with no grinding or cutting
– Standard power steering rack mounts included
– Durable powder coat finish, available bright red or gloss black

K-Member Benefits:
– Automatically reduces 25lbs of front end weight
– Offers additional clearance for headers & turbo piping
– A-Arm slots lengthened a 1/2″ over factory for additional adjustment
– Rear main cross tube lowered for oil pan protection & coverage
– Uses integrated motor mounts for maximum weight reduction
