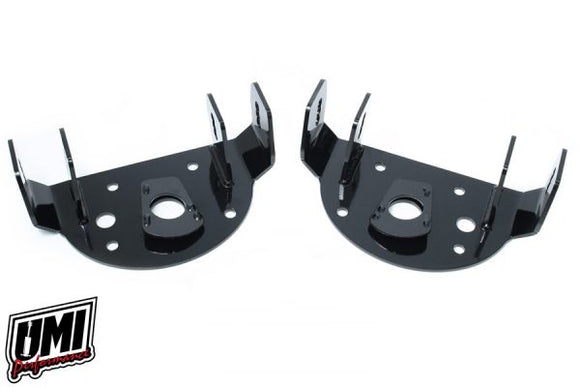

UMI Performance 93-02 F-Body Front Upper A-Arm Mounts Adjustable Factory

$312.79 CAD

UMI Performance SKU: umi2336

Earn [points_amount] when you buy this item.

2336

Description

The UMI adjustable upper a-arm mount is a direct bolt in replacement of the original GM mount with some key improvements. The parts feature a unique fabricated design that allows for the mounts to be strong without adding any extra weight. The factory GM mount had a bowl shaped plate that was excellent at holding in water which quickly caused rust to the mount. UMI’s fabricated mounts allow water to easily drain out from the strut bolt, which can extend the life of the front shocks. UMI’s fabricated mounts are also supplied with several upper a-arm adjustment holes for fine tuning the vehicles front suspension. The original factory holes are located at the center and driver has the option to raise or lower the a-arm mounting point 3/8 of an inch. Adjustment holes feature the ability to dial in the front roll center height. Raising the roll center height increases responsiveness and improves camber gain which allows a less aggressive street alignment to perform well when cornering. For street and drag applications choosing the center hole places the a-arm in the factory location. As always, these products are extensively tested on UMI’s test cars in some of the harshest highway and racing environments. This makes them an excellent upgrade for everyone from the street cruiser to the road course expert.

Features:

  • Direct bolt-on with no drilling or welding required.
  • Laser cut USA steel for clean and accurate components.
  • Robust 3/16” steel construction.
  • Same weight as factory GM mounts.
  • Features factory a-arm mounting holes and 3/8” adjustment up and down for roll center
  • Works with factory and aftermarket a-arms.
  • Durable black powder coat finish.
  • Fits factory style shocks that mount in the factory location.
  • Designed and manufactured in the USA.

Fitment Notes:

    • Factory upper a-arms will not bolt into the upper adjustment hole
    • UMI upper a-arms are able to use all adjustment holes
      MAKE MODEL YEAR
      Make Model Year
      Chevrolet Camaro 1993
      Chevrolet Camaro 1994
      Chevrolet Camaro 1995
      Chevrolet Camaro 1996
      Chevrolet Camaro 1997
      Chevrolet Camaro 1998
      Chevrolet Camaro 1999
      Chevrolet Camaro 2000
      Chevrolet Camaro 2001
      Chevrolet Camaro 2002
      Pontiac Firebird 1993
      Pontiac Firebird 1994
      Pontiac Firebird 1995
      Pontiac Firebird 1996
      Pontiac Firebird 1997
      Pontiac Firebird 1998
      Pontiac Firebird 1999
      Pontiac Firebird 2000
      Pontiac Firebird 2001
      Pontiac Firebird 2002
