2409-B
Description

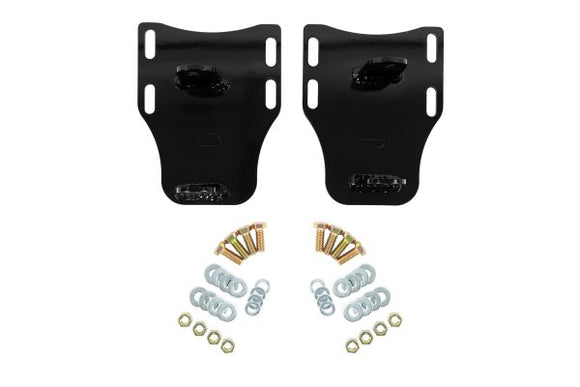

UMI’s P/N 2409 allows the installation of LS power into your 1982-1992 3rd generation Camaro/Firebird when using a UMI K-member. Easily convert your UMI small block k-member into an LSX bolt in solution with these bolt on mounts. LSX mounts are designed to bolt on to UMI k-member P/N’s 2401 and 2402 allowing the installation of an LSX block. P/N 2409 fits factory LS1 rubber engine mounts, polyurethane mounts and also works with UMI P/N 2323 solid aluminum motor mounts. UMI’s LS mounts place the LS engine in the factory location with the ability to move the engine slightly rear-ward. LS mounts are CNC laser cut from 3/16” thick steel with MIG welded ¼” thick stand offs, high grade mounting hardware included. Does not fit the factory k-member and are intended for UMI k-members only.
Note: UMI’s LSx mounts were built around the LS1 oil pan and will also work with the Holley 302 pan. Other oil pans may not clear. Low mounted factory A/C compressor will not clear UMI’s k-member and will need relocated.
Features:
- CNC laser cut mounting plates and stand offs.
- Slotted for rear-ward engine adjustment and perfect fit.
- High grade mounting hardware and motor mount bolts included.
- Durable high grade black or red powder coat.
MAKE MODEL YEAR Make Model Year Chevrolet Camaro 1982 Chevrolet Camaro 1983 Chevrolet Camaro 1984 Chevrolet Camaro 1985 Chevrolet Camaro 1986 Chevrolet Camaro 1987 Chevrolet Camaro 1988 Chevrolet Camaro 1989 Chevrolet Camaro 1990 Chevrolet Camaro 1991 Chevrolet Camaro 1992 Pontiac Firebird 1982 Pontiac Firebird 1983 Pontiac Firebird 1984 Pontiac Firebird 1985 Pontiac Firebird 1986 Pontiac Firebird 1987 Pontiac Firebird 1988 Pontiac Firebird 1989 Pontiac Firebird 1990 Pontiac Firebird 1991 Pontiac Firebird 1992
