UMI Performance 82-92 GM F-Body LSX Engine Swap Mounts

2410-B

Description

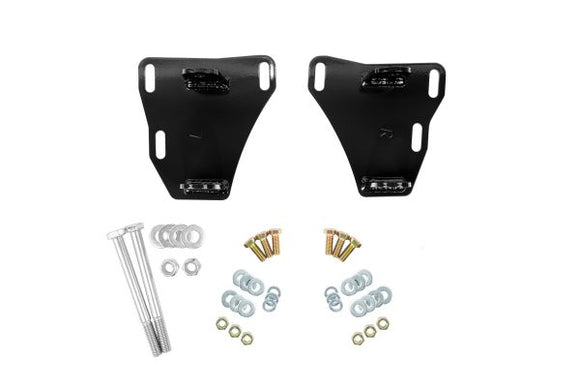

The UMI Performance P/N 2410 LS engine mount places the popular LS engine on the factory k-member in the stock Small Block Chevy location. The design includes “stock” crankshaft height as well as slots to adjust fore/aft location. This strong, laser cut 3/16″ and 1/4″ thick mount accepts most engine-side mounts intended for 1998-2002 Camaro such as UMI 2328, 2329 as well as GM 22179268. 100% Made In USA.

• For LSX engine swap into 3^rd Gen Camaro/Firebird with stock k-member.
• Clean, tight fit.
• 3/4″ adjustment fore and aft.
• Laser cut 3/16″ and 1/4″ USA steel, jig built for accuracy.
• Use UMI 2328, 2329 or GM 22179268 engine-side mount.
• Pairs nicely with UMI T56 Transmission Crossmember, 2239.
• 100% Made In USA

  MAKE	MODEL	YEAR
  Make	Model	Year
  Chevrolet	Camaro	1982
  Chevrolet	Camaro	1983
  Chevrolet	Camaro	1984
  Chevrolet	Camaro	1985
  Chevrolet	Camaro	1986
  Chevrolet	Camaro	1987
  Chevrolet	Camaro	1988
  Chevrolet	Camaro	1989
  Chevrolet	Camaro	1990
  Chevrolet	Camaro	1991
  Chevrolet	Camaro	1992
  Pontiac	Firebird	1982
  Pontiac	Firebird	1983
  Pontiac	Firebird	1984
  Pontiac	Firebird	1985
  Pontiac	Firebird	1986
  Pontiac	Firebird	1987
  Pontiac	Firebird	1988
  Pontiac	Firebird	1989
  Pontiac	Firebird	1990
  Pontiac	Firebird	1991
  Pontiac	Firebird	1992
