2656-1-B

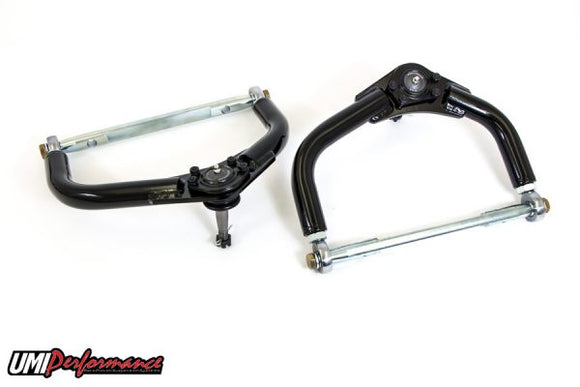

UMI’s 2nd Gen F-body adjustable upper a-arms are race-worthy components equally at home on the street. Our P/N 2656-1 adjustable upper a-arms add caster to improve steering feel and reduce wandering while incorporating tall ball joints to aid cornering traction. UMI’s single adjustable rod end design allows for caster and camber adjustment with zero or minimal shimming. The strong tubular construction and 4140 CrMo cross shaft gives peace of mind when road racing, drag racing or simply corner carving in the mountains. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in the USA.
Optional hardware kit: New hardware kit includes ½” Grade 8 bolts, washers and lock nuts for mounting both upper a-arms.
Features:
- Direct bolt-in for 1970-1981 GM F-body.
- Adds 5 to 6 degrees of caster to improve steering feel and reduce wandering.
- Combine with UMI lower a-arms to gain 8 to 10 degrees of positive caster.
- Shorter than stock to reduce need for shims when using racing alignment settings.
- Camber range from negative 1/2 degree to negative 3 degrees.
- ½” Taller than stock ball joint to improve camber gain and enhance cornering traction.
- 1.250” USA Made DOM steel construction with 4140 threaded adapters.
- 4140 CrMo cross shaft for strength
- Thick laser cut ball joint plate with high quality tall ball joint installed.
- Rod ends reduce stiction and allow easy movement for drag race reaction and consistent times
- Top choice for Pro-Tour style cars requiring excellent stability and great cornering performance.
- Great for race use while being street worthy.
MAKE MODEL YEAR Make Model Year Chevrolet Camaro 1970 Chevrolet Camaro 1971 Chevrolet Camaro 1972 Chevrolet Camaro 1973 Chevrolet Camaro 1974 Chevrolet Camaro 1975 Chevrolet Camaro 1976 Chevrolet Camaro 1977 Chevrolet Camaro 1978 Chevrolet Camaro 1979 Chevrolet Camaro 1980 Chevrolet Camaro 1981 Pontiac Firebird 1970 Pontiac Firebird 1971 Pontiac Firebird 1972 Pontiac Firebird 1973 Pontiac Firebird 1974 Pontiac Firebird 1975 Pontiac Firebird 1976 Pontiac Firebird 1977 Pontiac Firebird 1978 Pontiac Firebird 1979 Pontiac Firebird 1980 Pontiac Firebird 1981
