2660

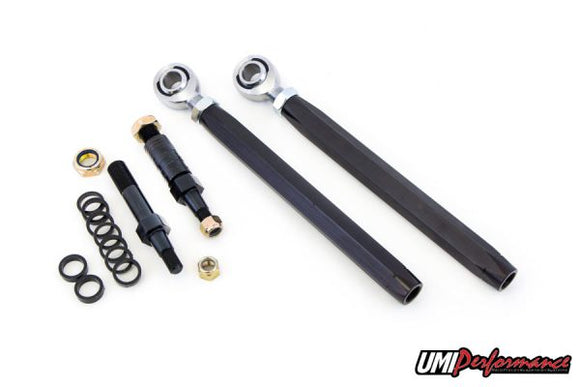

UMI’s 2660 2nd gen F-body bump steer kit is designed to reduce or eliminate toe change during suspension travel (also known as “bump steer”). Reduction of bump steer improves handling and straight line stability and enhances overall precision of the steering system. These direct bolt-in kits allow the builder to relocate the outer tie rod end lower than stock (or higher if necessary). The stud taper is designed for exact factory fit for each application and is constructed of 4140 CrMo for strength and durability, no spindle drilling required. The adjuster is 6061-T6 Aluminum hex for lightweight strength and features a hard anodized protective finish. Kits include shims of 0.125”, 0.1875” and 0.250”. These race-tested bump steer kits are 100% designed and manufactured with pride in Philipsburg, PA – USA.
Notes:
- Designed to use inner tie rod part numbers as follows: Proforged 104-10374 (left side) or equivalent, Proforged 104-10375 (right side) or equivalent
- Bump steer adjustment tools and theory can be found at longacreracing.com
Features:
- 4140 CrMo stud construction.
- Race quality rod end, jam nuts and locking hardware.
- Laser cut spacers, of 0.125”, 0.1875” and 0.250”.
- 6061-T6 Black Anodized Aluminum Adjuster Sleeve; 5/8-18 RH and 11/16-18 LH threads, 9.125” sleeve length.
- For use with factory spindle.
- Simply bolt-on. No spindle drilling required.
- Instructions with technical links included.
- Manufactured with pride in Philipsburg, PA – USA
- Battle tested by UMI.
MAKE MODEL YEAR Make Model Year Chevrolet Camaro 1972 Chevrolet Camaro 1973 Chevrolet Camaro 1974 Chevrolet Camaro 1975 Chevrolet Camaro 1976 Chevrolet Camaro 1977 Chevrolet Camaro 1978 Chevrolet Camaro 1979 Chevrolet Camaro 1980 Chevrolet Camaro 1981 Pontiac Firebird 1972 Pontiac Firebird 1973 Pontiac Firebird 1974 Pontiac Firebird 1975 Pontiac Firebird 1976 Pontiac Firebird 1977 Pontiac Firebird 1978 Pontiac Firebird 1979 Pontiac Firebird 1980 Pontiac Firebird 1981
