3022-B

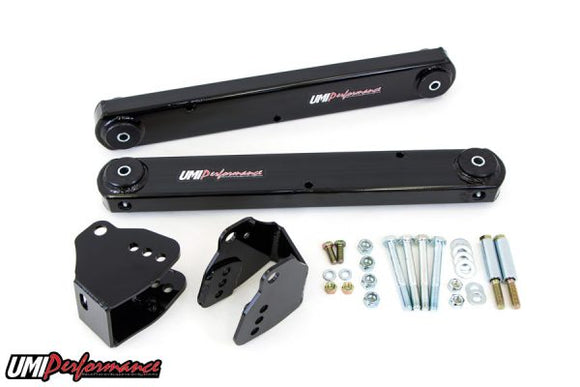

Wheel hop or traction issues? We have the solution! Optimize your vehicle’s instant center and improve forward traction by lowering the rear of the lower control arm. This trailing arm and bracket system relocates the rear lower arm pickup point for improved drag launch capability. The boxed trailing arm features offset sway bar holes to allow for a level factory bar even at the lowered position. The jig-built bolt-on brackets fit factory 7.5 and GN 8.5 rear axle housings and provide 3 position instant center adjustment. All UMI products are built from US Steel and are available in black and red powder coat. Hardware included. The 3022 is manufactured, tested and raced out of Philipsburg, PA – USA.
Installation: Rear lift bar brackets are designed to fit factory rear ends and may not fit aftermarket rear ends without modifications. Installation will take approximately 2-3 hours and requires drilling two 3/8” holes. Welding is recommended when used with drag radials or slicks. Rear lift bar set up is recommended for street use when not welded. Adjustable upper control arms are not required but recommended.
Features:
- Works with lowered and non-lowered vehicles.
- Multiple settings to optimize vehicle handling and traction.
- CNC laser cut bolt on brackets.
- Fully boxed control arms feature offset sway bar holes for a level sway bar.
- Assembled with greaseable polyurethane bushings
- New grade 10.9 hardware included.
- Manufactured with pride in Philipsburg, PA – USA.
MAKE MODEL YEAR Make Model Year Buick Regal 1978 Buick Regal 1979 Buick Regal 1980 Buick Regal 1981 Buick Regal 1982 Buick Regal 1983 Buick Regal 1984 Buick Regal 1985 Buick Regal 1986 Buick Regal 1987 Chevrolet El Camino 1978 Chevrolet El Camino 1979 Chevrolet El Camino 1980 Chevrolet El Camino 1981 Chevrolet El Camino 1982 Chevrolet El Camino 1983 Chevrolet El Camino 1984 Chevrolet El Camino 1985 Chevrolet El Camino 1986 Chevrolet El Camino 1987 Chevrolet Malibu 1978 Chevrolet Malibu 1979 Chevrolet Malibu 1980 Chevrolet Malibu 1981 Chevrolet Malibu 1982 Chevrolet Malibu 1983 Chevrolet Monte Carlo 1978 Chevrolet Monte Carlo 1979 Chevrolet Monte Carlo 1980 Chevrolet Monte Carlo 1981 Chevrolet Monte Carlo 1982 Chevrolet Monte Carlo 1983 Chevrolet Monte Carlo 1984 Chevrolet Monte Carlo 1985 Chevrolet Monte Carlo 1986 Chevrolet Monte Carlo 1987 Chevrolet Monte Carlo 1988 Pontiac Bonneville 1982 Pontiac Bonneville 1983 Pontiac Bonneville 1984 Pontiac Bonneville 1985 Pontiac Bonneville 1986 Pontiac Grand Prix 1978 Pontiac Grand Prix 1979 Pontiac Grand Prix 1980 Pontiac Grand Prix 1981 Pontiac Grand Prix 1982 Pontiac Grand Prix 1983 Pontiac Grand Prix 1984 Pontiac Grand Prix 1985 Pontiac Grand Prix 1986 Pontiac Grand Prix 1987
