3045-275-R

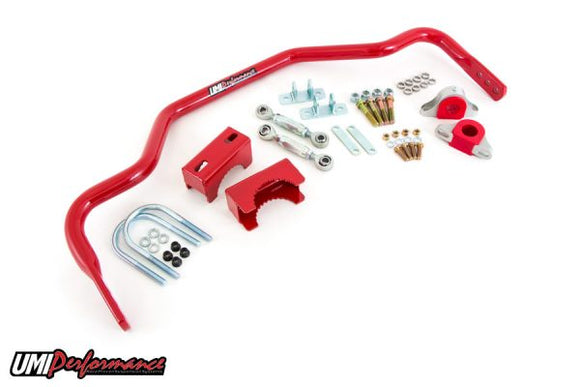

UMI’s G-body Anti-Roll bar is designed to help your hot rod leave the line flat and straight. The bars are manufactured from light weight 1-3/8” diameter tubular steel and feature three different rates (street/strip, strip with drag radials and full slick settings). UMI’s tried and true CNC machined clamping system allows differential housing mounting on 2.75″, 3″ and 3.25″ diameter housings. These can be bolted on, or welded for additional security. Since your car will be launching hard, we recommend welding. The double shear chassis mounts are held in place by four 3/8″ fasteners and feature our exclusive reinforcement plate up top to help distribute the load. Drilling through the crossmember is required and a template /instructions are included. The house made hex adjuster allows pre-loading of the bar when used for drag applications so your car leaves straight no matter how much power you throw at it. This G-body drag bar is available in beautiful red or black powder coat. Manufactured with pride in Philipsburg, PA – USA.
Features:
- 1-3/8” diameter tubular bar for incredible strength, resistance to roll and light weight (saves 8-10lbs over the competition with no loss of roll resistance)
- Designed to clear all rear ends – Factory OEM 7.5, GN 8.5, 12-Bolt, 9”, M9, S60 and others
- Heavy duty ultra premium chromoly spherical rod ends with Teflon race.
- High strength 4140 chromoly zinc-plated u-bolts
- CNC machined sway bar mounts with grip teeth and reinforcement gussets
- 1” Billet steel hex adjuster for extreme strength. On-car adjustable to set preload.
- Heavy duty machined aluminum sway bar mounts with greaseable polyurethane bushings
- 100% bolt in installation!
- Durable long lasting powder coat
- Switch easily from car to car just by changing u-bolt sizes
Axle Tube Diameters:
- Strange Engineering and Currie rear ends use 3” diameter axle tubes
- Moser Engineering 12-bolt rear ends use 3” diameter axle tubes
- Moser Engineering 9” rear ends manufactured after early 2002 use 3” axle tubes. Rear ends manufactured prior to early 2002 use 3.25” axle tubes. Please verify diameter before ordering.
- Other brand rear ends will vary, please check your axle tube diameter before ordering.
MAKE MODEL YEAR Make Model Year Buick Regal 1978 Buick Regal 1979 Buick Regal 1980 Buick Regal 1981 Buick Regal 1982 Buick Regal 1983 Buick Regal 1984 Buick Regal 1985 Buick Regal 1986 Buick Regal 1987 Chevrolet El Camino 1978 Chevrolet El Camino 1979 Chevrolet El Camino 1980 Chevrolet El Camino 1981 Chevrolet El Camino 1982 Chevrolet El Camino 1983 Chevrolet El Camino 1984 Chevrolet El Camino 1985 Chevrolet El Camino 1986 Chevrolet El Camino 1987 Chevrolet Malibu 1978 Chevrolet Malibu 1979 Chevrolet Malibu 1980 Chevrolet Malibu 1981 Chevrolet Malibu 1982 Chevrolet Malibu 1983 Chevrolet Monte Carlo 1978 Chevrolet Monte Carlo 1979 Chevrolet Monte Carlo 1980 Chevrolet Monte Carlo 1981 Chevrolet Monte Carlo 1982 Chevrolet Monte Carlo 1983 Chevrolet Monte Carlo 1984 Chevrolet Monte Carlo 1985 Chevrolet Monte Carlo 1986 Chevrolet Monte Carlo 1987 Chevrolet Monte Carlo 1988 Pontiac Bonneville 1982 Pontiac Bonneville 1983 Pontiac Bonneville 1984 Pontiac Bonneville 1985 Pontiac Bonneville 1986 Pontiac Grand Prix 1978 Pontiac Grand Prix 1979 Pontiac Grand Prix 1980 Pontiac Grand Prix 1981 Pontiac Grand Prix 1982 Pontiac Grand Prix 1983 Pontiac Grand Prix 1984 Pontiac Grand Prix 1985 Pontiac Grand Prix 1986 Pontiac Grand Prix 1987
