3052-325-R

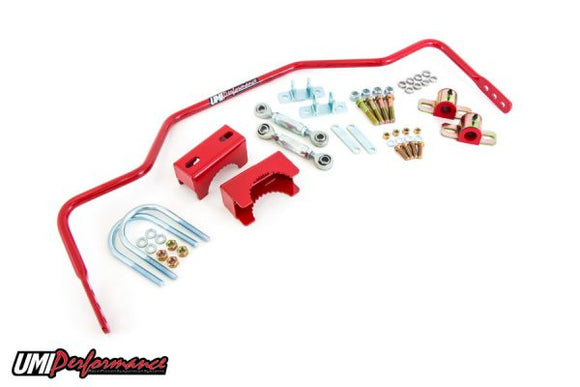

UMI’s G-body ¾” solid rear sway bar is designed specifically to excel when used in autocross or road racing applications. The G-body chassis when coupled with the common high rate PT bar tends to lift the inside rear tire during competition. The lower rate 3052 bar prevents inside rear wheel lift while still providing roll resistance and enhancing rotation. The chassis and differential housing mounts reduce bind normally associated with the factory style bars. UMI’s tried and true CNC machined clamping system allows differential housing mounting on 2.75″, 3″ and 3.25″ diameter housings. These can be bolted on, or welded for additional security. The double shear chassis mounts are held in place by four 3/8″ fasteners. Drilling through the crossmember is required and a template /instructions are included. Choose the longest hole for street and high speed courses, middle hole for medium, and the shortest hole for maximum rotation.
Features:
- Light weight 3/4” solid rear sway bar, CNC bent, 4140 CrMo
- Pair with UMI 3035 front bar
- Three rates, 346 lb/in, 262 lb/in, 205 lb/in
- Designed to clear all rear ends – Factory OEM 7.5, GN 8.5, 12-Bolt, 9”, M9, S60 and others
- Heavy duty race style CrMo spherical rod ends with Teflon race
- High strength 4140 CrMo zinc-plated u-bolts
- Laser cut sway bar mounts with grip teeth and reinforcement gussets
- 1” Billet steel hex adjuster for extreme strength
- Premium greaseable polyurethane bushings
- 100% bolt in installation!
- Durable long lasting powder coat
Axle Tube Diameters:
- Strange Engineering and Currie rear ends use 3” diameter axle tubes
- Moser Engineering 12-bolt rear ends use 3” diameter axle tubes
- Moser Engineering 9” rear ends manufactured after early 2002 use 3” axle tubes. Rear ends manufactured prior to early 2002 use 3.25” axle tubes. Please verify diameter before ordering.
- Other brand rear ends will vary, please check your axle tube diameter before ordering.
MAKE MODEL YEAR Make Model Year Buick Regal 1978 Buick Regal 1979 Buick Regal 1980 Buick Regal 1981 Buick Regal 1982 Buick Regal 1983 Buick Regal 1984 Buick Regal 1985 Buick Regal 1986 Buick Regal 1987 Chevrolet El Camino 1978 Chevrolet El Camino 1979 Chevrolet El Camino 1980 Chevrolet El Camino 1981 Chevrolet El Camino 1982 Chevrolet El Camino 1983 Chevrolet El Camino 1984 Chevrolet El Camino 1985 Chevrolet El Camino 1986 Chevrolet El Camino 1987 Chevrolet Malibu 1978 Chevrolet Malibu 1979 Chevrolet Malibu 1980 Chevrolet Malibu 1981 Chevrolet Malibu 1982 Chevrolet Malibu 1983 Chevrolet Monte Carlo 1978 Chevrolet Monte Carlo 1979 Chevrolet Monte Carlo 1980 Chevrolet Monte Carlo 1981 Chevrolet Monte Carlo 1982 Chevrolet Monte Carlo 1983 Chevrolet Monte Carlo 1984 Chevrolet Monte Carlo 1985 Chevrolet Monte Carlo 1986 Chevrolet Monte Carlo 1987 Chevrolet Monte Carlo 1988 Pontiac Bonneville 1982 Pontiac Bonneville 1983 Pontiac Bonneville 1984 Pontiac Bonneville 1985 Pontiac Bonneville 1986 Pontiac Grand Prix 1978 Pontiac Grand Prix 1979 Pontiac Grand Prix 1980 Pontiac Grand Prix 1981 Pontiac Grand Prix 1982 Pontiac Grand Prix 1983 Pontiac Grand Prix 1984 Pontiac Grand Prix 1985 Pontiac Grand Prix 1986 Pontiac Grand Prix 1987
