3059-3-B

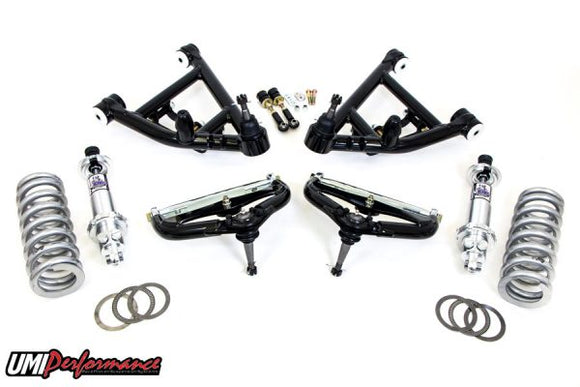

Tremendous front grip and a host of features can be yours with UMI’s complete front end Grip Kit. The included a-arm kit enables 10 degrees caster while maintaining standard track width and wheelbase. Lower a-arms are assembled with tall lower ball joints to optimize roll center, camber gain, and center of gravity. Lower a-arms feature Delrin bushings for smooth travel and bind free performance. The new lower a-arm works in conjunction with the included adjustable upper arm which features minimum shim adjustability, Proforged ball joints, and super smooth Teflon lined rod ends. The front sway bar attaches using UMI’s swivel style end link design and double shear mounting system. The included Viking Crusader coilover shocks mount to the lower a-arm in double shear quick change brackets. The lower shock mount is removable to allow spring and shock changes at the track. UMI’s kit features Viking Crusader shocks with GF pro-touring valving (high rebound tie down for road race and auto-x) and a true 2-1/2” racing coilover. The upper stud mount fits in factory location while the lower is optimized to fit UMI’s 3057-1 coilover lower a-arm. Some grinding is required for installation in the upper frame spring bucket. Other spring rates and valve codes are available. Battle tested on the iconic UMI Green Machine. Kit is available in UMI red or black powder coat. 100% designed, manufactured and raced with pride in the USA.
Performance note: UMI recommends adding the P/N 3060-1 bump steer kit for optimal performance.
Features:
- Total of 10 degrees caster potential while maintaining spindle pin location.
- Upper ball joint moved rearward to add 5-6 degrees caster potential.
- Lower ball joint relocated forward to increase caster 4-5 degrees which improves steering feel and straight line stability.
- Viking double adjustable Crusader coilover shocks with pro-touring valving.
- Ride height adjustment using coilover shocks.
- Rod ends feature superior friction reduction for quick response
- Adjustable upper a-arm uses rod ends for easy alignment.
- UMI built Delrin bushings improve steering response and reduce deflection.
- Taller upper ball joints to improve camber gain, optimize roll center and improve traction during cornering.
- Upper and lower a-arms built from USA Made DOM steel tubing.
- Removable double shear mount to allow spring/shock replacement without removing spindle.
- Mount spacing suitable for Afco, Viking, Ridetech and many other aftermarket manufacturers shock/spring combos.
- Adjustable steering stop.
- Double shear swivel sway bar mounts and hardware work with UMI P/N 3035 and most other factory eyelet style sway bars.
Standard Spindle Vehicles
Kit Specifications:
3059-1
- P/N 3057-1 Coilover lower A-Arms, +3/4″ Lower ball joint, Derlin bushings, quick change shock mount.
- P/N 3056-2 Adjustable upper A-Arms, +1/2″ Upper ball joint, rod ends.
- (2) Viking Crusader double adjustable shocks, GF pro-touring valving.
- (2) Front springs, 10″ 650lb rate for race use and good street manners.
- Thrust bearing kit for easy height adjustments.
Kit # 3059-2
- P/N 3057-1 Coilover lower A-Arms, +3/4″ Lower ball joint, Derlin bushings, quick change shock mount.
- P/N 3056-2 Adjustable upper A-Arms, +1/2″ Upper ball joint, rod ends.
- (2) Viking Crusader double adjustable shocks, GF pro-touring valving.
- (2) Front springs, 10″ 850lb rate for race use.
- Thrust bearing kit for easy height adjustments.
Drop Spindle Vehicles (S10 Xtreme included)
Kit Specifications:
Kit # 3059-3
- P/N 3057 Coilover lower A-Arms, Standard Lower ball joint, Derlin bushings, quick change shock mount.
- P/N 3056-3 Adjustable upper A-Arms, +1″ Upper ball joint, rod ends.
- (2) Viking Crusader double adjustable shocks, GF pro-touring valving.
- (2) Front springs, 10″ 650lb rate for race use and good street manners.
- Thrust bearing kit for easy height adjustments.
Kit # 3059-4
- P/N 3057-1 Coilover lower A-Arms, Standard Lower ball joint, Derlin bushings, quick change shock mount.
- P/N 3056-3 Adjustable upper A-Arms, +1″ Upper ball joint, rod ends.
- (2) Viking Crusader double adjustable shocks, GF pro-touring valving.
- (2) Front springs, 10″ 850lb rate for race use.
- Thrust bearing kit for easy height adjustments.
MAKE MODEL YEAR Make Model Year Buick Regal 1978 Buick Regal 1979 Buick Regal 1980 Buick Regal 1981 Buick Regal 1982 Buick Regal 1983 Buick Regal 1984 Buick Regal 1985 Buick Regal 1986 Buick Regal 1987 Chevrolet El Camino 1978 Chevrolet El Camino 1979 Chevrolet El Camino 1980 Chevrolet El Camino 1981 Chevrolet El Camino 1982 Chevrolet El Camino 1983 Chevrolet El Camino 1984 Chevrolet El Camino 1985 Chevrolet El Camino 1986 Chevrolet El Camino 1987 Chevrolet Malibu 1978 Chevrolet Malibu 1979 Chevrolet Malibu 1980 Chevrolet Malibu 1981 Chevrolet Malibu 1982 Chevrolet Malibu 1983 Chevrolet Monte Carlo 1978 Chevrolet Monte Carlo 1979 Chevrolet Monte Carlo 1980 Chevrolet Monte Carlo 1981 Chevrolet Monte Carlo 1982 Chevrolet Monte Carlo 1983 Chevrolet Monte Carlo 1984 Chevrolet Monte Carlo 1985 Chevrolet Monte Carlo 1986 Chevrolet Monte Carlo 1987 Chevrolet Monte Carlo 1988 Pontiac Bonneville 1982 Pontiac Bonneville 1983 Pontiac Bonneville 1984 Pontiac Bonneville 1985 Pontiac Bonneville 1986 Pontiac Grand Prix 1978 Pontiac Grand Prix 1979 Pontiac Grand Prix 1980 Pontiac Grand Prix 1981 Pontiac Grand Prix 1982 Pontiac Grand Prix 1983 Pontiac Grand Prix 1984 Pontiac Grand Prix 1985 Pontiac Grand Prix 1986 Pontiac Grand Prix 1987
