3060
Description

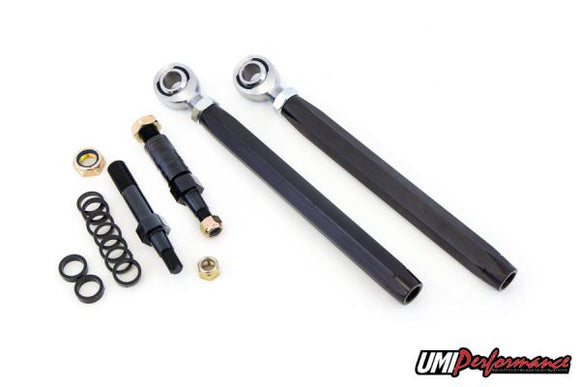

UMI’s F-body and G-body bump steer kit is designed to reduce or eliminate toe change during suspension travel (also known as “bump steer”). Reduction of bump steer improves handling and straight line stability and enhances overall precision of the steering system. These direct bolt-in kits allow the builder to relocate the outer tie rod end lower than stock (or higher if necessary). The stud taper is designed for exact factory fit for each application and is constructed of 4140 CrMo for strength and durability, no spindle drilling required. The adjuster is 6061-T6 Aluminum hex for lightweight strength and features a hard anodized protective finish. Kits include 6 each of shims in 0.125”, 0.1875” and 0.250”. These race-tested bump steer kits are 100% designed and manufactured with pride in Philipsburg, PA – USA.
1978-1988 G Body and 1982-1995 S10: Uses stock inner tie rod. If replacement required use Proforged 104-10020 or equivalent, (2) required
1982-1992 F body: Uses stock inner tie rod. If replacement required use Proforged 104-10058 or equivalent, (2) required
Features:
- 4140 CrMo stud construction.
- Race quality rod end, jam nuts and locking hardware.
- Laser cut spacers, of 0.125”, 0.1875” and 0.250”.
- 6061-T6 Aluminum toe adjuster, hard anodized, 5/8 RH and 5/8 LH threads, 9.200” sleeve length.
- Works with factory inner tie rods and factory spindle.
- Simply bolt-on. No spindle drilling required.
- Instructions with technical links included.
- Manufactured with pride in Philipsburg, PA – USA
- Race proven.
MAKE MODEL YEAR Make Model Year Buick Regal 1978 Buick Regal 1979 Buick Regal 1980 Buick Regal 1981 Buick Regal 1982 Buick Regal 1983 Buick Regal 1984 Buick Regal 1985 Buick Regal 1986 Buick Regal 1987 Chevrolet Camaro 1982 Chevrolet Camaro 1983 Chevrolet Camaro 1984 Chevrolet Camaro 1985 Chevrolet Camaro 1986 Chevrolet Camaro 1987 Chevrolet Camaro 1988 Chevrolet Camaro 1989 Chevrolet Camaro 1990 Chevrolet Camaro 1991 Chevrolet Camaro 1992 Chevrolet El Camino 1978 Chevrolet El Camino 1979 Chevrolet El Camino 1980 Chevrolet El Camino 1981 Chevrolet El Camino 1982 Chevrolet El Camino 1983 Chevrolet El Camino 1984 Chevrolet El Camino 1985 Chevrolet El Camino 1986 Chevrolet El Camino 1987 Chevrolet Malibu 1978 Chevrolet Malibu 1979 Chevrolet Malibu 1980 Chevrolet Malibu 1981 Chevrolet Malibu 1982 Chevrolet Malibu 1983 Chevrolet Monte Carlo 1978 Chevrolet Monte Carlo 1979 Chevrolet Monte Carlo 1980 Chevrolet Monte Carlo 1981 Chevrolet Monte Carlo 1982 Chevrolet Monte Carlo 1983 Chevrolet Monte Carlo 1984 Chevrolet Monte Carlo 1985 Chevrolet Monte Carlo 1986 Chevrolet Monte Carlo 1987 Chevrolet Monte Carlo 1988 Pontiac Bonneville 1982 Pontiac Bonneville 1983 Pontiac Bonneville 1984 Pontiac Bonneville 1985 Pontiac Bonneville 1986 Pontiac Firebird 1982 Pontiac Firebird 1983 Pontiac Firebird 1984 Pontiac Firebird 1985 Pontiac Firebird 1986 Pontiac Firebird 1987 Pontiac Firebird 1988 Pontiac Firebird 1989 Pontiac Firebird 1990 Pontiac Firebird 1991 Pontiac Firebird 1992 Pontiac Grand Prix 1978 Pontiac Grand Prix 1979 Pontiac Grand Prix 1980 Pontiac Grand Prix 1981 Pontiac Grand Prix 1982 Pontiac Grand Prix 1983 Pontiac Grand Prix 1984 Pontiac Grand Prix 1985 Pontiac Grand Prix 1986 Pontiac Grand Prix 1987
