306201-B

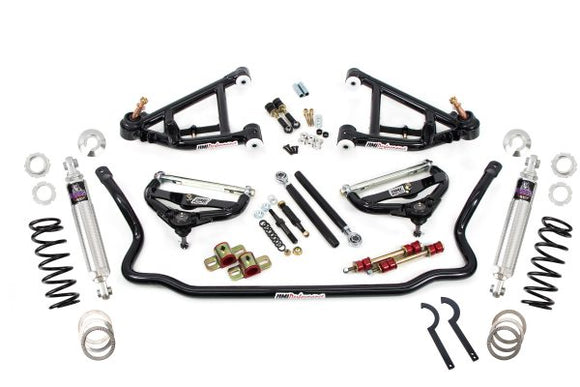

UMI’s Corner Max front end kits are a comprehensive system with our best corner carving parts under one easy to find part number. The Corner Max system combines geometry corrected a-arms with tall ball joints, higher rate springs, UMI rebound adjustable monotube shocks, heavy duty sway bar and a bump steer kit. The foundation of the kit includes our coilover-only lower a-arms featuring caster improvement, tall ball joints, and the ability to remove the spring and shock without taking the spindle apart. The upper a-arm features rod ends for smooth operation and the ability to adjust without shims. The 1-¼” sway bar upgrade complete with UMI’s fabricated end links reduces body roll and helps speed transitions. Racing coilover springs are paired with UMI’s rebound adjustable coilover monotube shocks. Fine tuning is accomplished with a UMI bump steer kit. The Corner Max kit is built to make the stock GM clip work as well as it possibly can with a true bolt-on kit. All UMI Performance parts are fabricated and raced with pride out of Philipsburg, PA – USA. Race proven on the UMI Green Machine.
Features:
- Exceptional handling at 1 to 2-1/2” lowering.
- Uses factory GM spindle.
- Up to 10 degrees static caster without moving the spindle pin.
- Up to 1.2 degrees per inch camber gain.
- ¾” taller lower and standard upper ball joints.
- Easily change shocks and springs at the track with UMI’s unique quick change system.
- 850 lb/in race proven spring rates for exceptional handling.
- UMI rebound adjustable monotube shock with road race valving, 40 clicks of adjustment.
- Shocks have easy access adjustment in engine bay area for quick changes at the track.
- 1-1/4” solid sway bar with swivel end links to balance kit properly.
- Bump steer kit for fine tuning.
- Thrust bearings and adjusting wrench included for easy height changes
- Raced and tested on UMI’s 1979 Monte Carlo test car.
- All UMI suspension components are designed and manufactured in the USA.
MAKE MODEL YEAR Make Model Year Buick Regal 1978 Buick Regal 1979 Buick Regal 1980 Buick Regal 1981 Buick Regal 1982 Buick Regal 1983 Buick Regal 1984 Buick Regal 1985 Buick Regal 1986 Buick Regal 1987 Chevrolet El Camino 1978 Chevrolet El Camino 1979 Chevrolet El Camino 1980 Chevrolet El Camino 1981 Chevrolet El Camino 1982 Chevrolet El Camino 1983 Chevrolet El Camino 1984 Chevrolet El Camino 1985 Chevrolet El Camino 1986 Chevrolet El Camino 1987 Chevrolet Malibu 1978 Chevrolet Malibu 1979 Chevrolet Malibu 1980 Chevrolet Malibu 1981 Chevrolet Malibu 1982 Chevrolet Malibu 1983 Chevrolet Monte Carlo 1978 Chevrolet Monte Carlo 1979 Chevrolet Monte Carlo 1980 Chevrolet Monte Carlo 1981 Chevrolet Monte Carlo 1982 Chevrolet Monte Carlo 1983 Chevrolet Monte Carlo 1984 Chevrolet Monte Carlo 1985 Chevrolet Monte Carlo 1986 Chevrolet Monte Carlo 1987 Chevrolet Monte Carlo 1988 Chevrolet S-10 2WD 1982 Chevrolet S-10 2WD 1983 Chevrolet S-10 2WD 1984 Chevrolet S-10 2WD 1985 Chevrolet S-10 2WD 1986 Chevrolet S-10 2WD 1987 Chevrolet S-10 2WD 1988 Chevrolet S-10 2WD 1989 Chevrolet S-10 2WD 1990 Chevrolet S-10 2WD 1991 Chevrolet S-10 2WD 1992 Chevrolet S-10 2WD 1993 Chevrolet S-10 2WD 1994 Chevrolet S-10 2WD 1995 Chevrolet S-10 2WD 1996 Chevrolet S-10 2WD 1997 Chevrolet S-10 2WD 1998 Chevrolet S-10 2WD 1999 Chevrolet S-10 2WD 2000 Chevrolet S-10 2WD 2001 Chevrolet S-10 2WD 2002 Chevrolet S-10 2WD 2003 Chevrolet S10 Blazer 1983 Chevrolet S10 Blazer 1984 Chevrolet S10 Blazer 1985 Chevrolet S10 Blazer 1986 Chevrolet S10 Blazer 1987 Chevrolet S10 Blazer 1988 Chevrolet S10 Blazer 1989 Chevrolet S10 Blazer 1990 Chevrolet S10 Blazer 1991 Chevrolet S10 Blazer 1992 Chevrolet S10 Blazer 1993 Chevrolet S10 Blazer 1994 GMC Caballero 1978 GMC Caballero 1979 GMC Caballero 1980 GMC Caballero 1981 GMC Caballero 1982 GMC Caballero 1983 GMC Caballero 1984 GMC Caballero 1985 GMC Caballero 1986 GMC Caballero 1987 Oldsmobile Cutlass 1981 Oldsmobile Cutlass 1982 Oldsmobile Cutlass 1983 Oldsmobile Cutlass 1984 Oldsmobile Cutlass 1985 Oldsmobile Cutlass 1986 Oldsmobile Cutlass 1987 Oldsmobile Cutlass 1988 Pontiac Bonneville 1982 Pontiac Bonneville 1983 Pontiac Bonneville 1984 Pontiac Bonneville 1985 Pontiac Bonneville 1986 Pontiac Grand Prix 1978 Pontiac Grand Prix 1979 Pontiac Grand Prix 1980 Pontiac Grand Prix 1981 Pontiac Grand Prix 1982 Pontiac Grand Prix 1983 Pontiac Grand Prix 1984 Pontiac Grand Prix 1985 Pontiac Grand Prix 1986 Pontiac Grand Prix 1987
