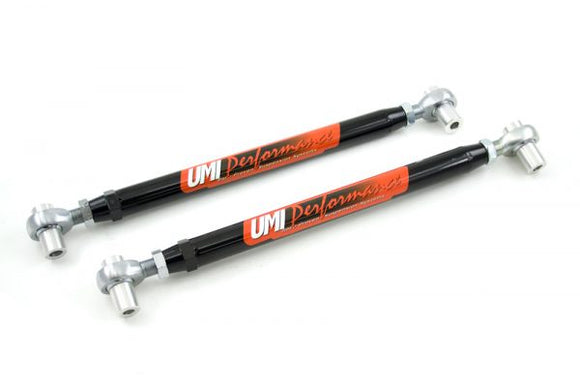

UMI Performance 64-72 GM A-Body Adjustable Lower Control Arms Off Set Bushings CrMo

$448.79 CAD

UMI Performance SKU: umi4023OFCM-B

Earn [points_amount] when you buy this item.

4023OFCM-B

UMI P/N 4023OFCM features off-set aluminum bushings and smaller diameter tubing that place the control arm inward for additional clearance when running large tires. This type of set-up is also needed when running a mini-tub to achieve the most clearance as possible. The supplied aluminum step bushings place the control arm inward 3/8 of an inch further then our standard control arm version. These double adjustable control arms are designed for race applications and light duty street use. The spherical rod ends offer a solid foundation and work excellent as a solid bushing control arm while eliminating rear suspension bind. The double adjustment allows easy on car changes for wider tire clearance and to center aftermarket rear ends. These race application control arms are manufactured from 4130 chromoly steel and TIG welded for the utmost in strength. The premium Teflon lined rod ends attach to the control arms using in-house machined 4130 chromoly tube adaptors. UMI P/N 4023OFCM allows adjustments of 1” longer or 1” shorter and are supplied pre-set to factory length. These race style control arms are designed for aftermarket sway bars that do not attach to the control arms; control arms are supplied with no sway bar holes.

Features:

  • TIG welded 1.250” x 0.095” 4130 chromoly tubing
  • Stronger & lighter than factory control arms
  • In-house machined 4130 chromoly tube adaptors for increased thread durability
  • ¾” Teflon lined, high load capacity race rod ends, Teflon lined & self-lubricating
  • CNC machined light weight aluminum off set bushings
  • Brilliant durable red or black powder coat
  • Reuses factory hardware or purchase new hardware kit P/N 4001
  • Designed and manufactured with pride in Philipsburg, PA – USA
    MAKE MODEL YEAR
    Make Model Year
    Buick GS 1970
    Buick GS 1971
    Buick GS 1972
    Buick GS 350 1968
    Buick GS 350 1969
    Buick GS 400 1968
    Buick GS 400 1969
    Buick GS 455 1970
    Buick GS 455 1971
    Buick GS 455 1972
    Buick Gran Sport 1965
    Buick Gran Sport 1966
    Buick Gran Sport 1967
    Buick Skylark 1964
    Buick Skylark 1965
    Buick Skylark 1966
    Buick Skylark 1967
    Buick Skylark 1968
    Buick Skylark 1969
    Buick Skylark 1970
    Buick Skylark 1971
    Buick Skylark 1972
    Buick Special 1964
    Buick Special 1965
    Buick Special 1966
    Buick Special 1967
    Buick Special 1968
    Buick Special 1969
    Buick Sportwagon 1964
    Buick Sportwagon 1965
    Buick Sportwagon 1966
    Buick Sportwagon 1967
    Buick Sportwagon 1968
    Buick Sportwagon 1969
    Buick Sportwagon 1970
    Buick Sportwagon 1971
    Buick Sportwagon 1972
    Chevrolet Chevelle 1964
    Chevrolet Chevelle 1965
    Chevrolet Chevelle 1966
    Chevrolet Chevelle 1967
    Chevrolet Chevelle 1968
    Chevrolet Chevelle 1969
    Chevrolet Chevelle 1970
    Chevrolet Chevelle 1971
    Chevrolet Chevelle 1972
    Chevrolet El Camino 1964
    Chevrolet El Camino 1965
    Chevrolet El Camino 1966
    Chevrolet El Camino 1967
    Chevrolet El Camino 1968
    Chevrolet El Camino 1969
    Chevrolet El Camino 1970
    Chevrolet El Camino 1971
    Chevrolet El Camino 1972
    Chevrolet Malibu 1964
    Chevrolet Malibu 1965
    Chevrolet Malibu 1966
    Chevrolet Malibu 1967
    Chevrolet Monte Carlo 1970
    Chevrolet Monte Carlo 1971
    Chevrolet Monte Carlo 1972
    GMC Sprint 1971
    GMC Sprint 1972
    Pontiac GTO 1964
    Pontiac GTO 1965
    Pontiac GTO 1966
    Pontiac GTO 1967
    Pontiac GTO 1968
    Pontiac GTO 1969
    Pontiac GTO 1970
    Pontiac GTO 1971
    Pontiac GTO 1972
    Pontiac Grand Prix 1969
    Pontiac Grand Prix 1970
    Pontiac Grand Prix 1971
    Pontiac Grand Prix 1972
    Pontiac Lemans 1964
    Pontiac Lemans 1965
    Pontiac Lemans 1966
    Pontiac Lemans 1967
    Pontiac Lemans 1968
    Pontiac Lemans 1969
    Pontiac Lemans 1970
    Pontiac Lemans 1971
    Pontiac Lemans 1972
    Pontiac Tempest 1964
    Pontiac Tempest 1965
    Pontiac Tempest 1966
    Pontiac Tempest 1967
    Pontiac Tempest 1968
    Pontiac Tempest 1969
    Pontiac Tempest 1970
