403233-R

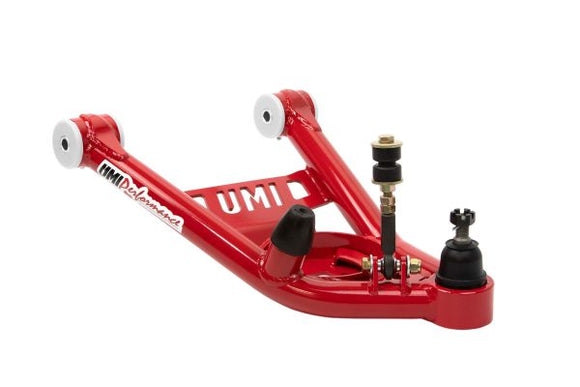

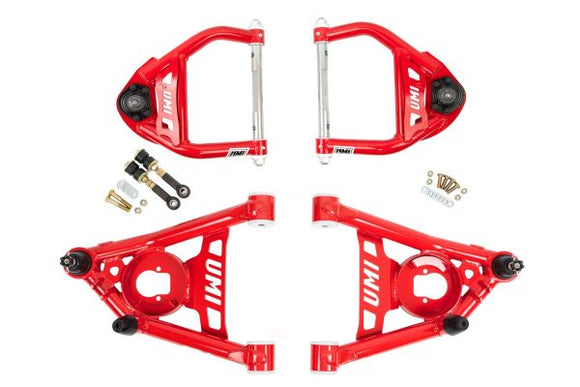

Improve performance and make your classic A-Body feel like a modern day muscle car with a complete set of fabricated tubular a-arms from UMI Performance. UMI’s P/N 403233 upper and lower a-arm kit replaces the worn out, stock stamped a-arms with high-strength tubular construction and a host of premium features. The stock geometry lower a-arms feature tough tubular construction with polyurethane spring isolators for ride comfort and greaseable Delrin bushings for precise handling and smooth suspension motion. We build the Delrin bushings in-house to ensure the ultimate in quality and smooth suspension action. The ball joint mount is angled slightly from stock to permit usage with lowered vehicles and to offer additional wheel and tire clearance. The tubular upper a-arms are assembled with smooth operating, low deflection UMI designed and manufactured Delrin bushings as well as UMI-built billet chromoly cross shafts. They feature a relocated mounting pad to increase caster without excessive shims. Both upper and lower a-arms are jig built to maintain accuracy for a perfect fit every time and come preloaded with premium ball joints. Critical areas are TIG welded for superior strength and a clean look. UMI’s extensive testing on the street, drag strip and skid pad ensures a quality product able to with stand all types of conditions. The P/N 403233 a-arm kit will work with factory springs, lowering springs and coil over kits such as the popular QA1 coil over set up. For the best handling and tire life from the UMI designed a-arms, included with each kit are recommended alignment specs along with detailed installation instructions. UMI Performance a-arm kit P/N 403233 is shipped fully assembled and ready for installation. Manufactured with pride in Philipsburg, PA – USA.
Hardware kit, Part # 4004 – Upper and lower A-Arm hardware kit includes Grade 8 bolts, washers and zinc plated nylock nuts needed to install this complete kit. The hardware kit P/N 4004 adds the finishing touch to your installation and replaces the worn factory hardware with new, high quality fasteners.
Features:
- New premium ball joints installed
- Relocated upper ball joint mounting pad for improved caster angle & better steering feel
- Upper a-arms assembled with UMI manufactured greaseable & fluted CNC machined zero deflection Delrin bushings
- 4140 chromoly cross shafts, CNC machined & zinc plated
- CNC machined ball joint holders & tubing radiuses
- TIG welded DOM tubing for superior strength & clean looks
- UMI designed & manufactured Delrin bushings in upper & lower a-arms for precision handling & the ultimate smooth suspension action
- Polyurethane bump stops, polyurethane spring isolators & new premium ball joints installed
- Durable glossy red or black powder coat finish
- Fits factory spindle & works with factory springs, lowering springs & coil over kits
- May also fit other spindles. Call for details
- Package includes recommended alignment specs and detailed installation instructions
- Simply bolt-on & go
MAKE MODEL YEAR Make Model Year Buick GS 1970 Buick GS 1971 Buick GS 1972 Buick GS 350 1968 Buick GS 350 1969 Buick GS 400 1968 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1971 Buick GS 455 1972 Buick Gran Sport 1965 Buick Gran Sport 1966 Buick Gran Sport 1967 Buick Skylark 1964 Buick Skylark 1965 Buick Skylark 1966 Buick Skylark 1967 Buick Skylark 1968 Buick Skylark 1969 Buick Skylark 1970 Buick Skylark 1971 Buick Skylark 1972 Buick Special 1964 Buick Special 1965 Buick Special 1966 Buick Special 1967 Buick Special 1968 Buick Special 1969 Buick Sportwagon 1964 Buick Sportwagon 1965 Buick Sportwagon 1966 Buick Sportwagon 1967 Buick Sportwagon 1968 Buick Sportwagon 1969 Buick Sportwagon 1970 Buick Sportwagon 1971 Buick Sportwagon 1972 Chevrolet Chevelle 1964 Chevrolet Chevelle 1965 Chevrolet Chevelle 1966 Chevrolet Chevelle 1967 Chevrolet Chevelle 1968 Chevrolet Chevelle 1969 Chevrolet Chevelle 1970 Chevrolet Chevelle 1971 Chevrolet Chevelle 1972 Chevrolet El Camino 1964 Chevrolet El Camino 1965 Chevrolet El Camino 1966 Chevrolet El Camino 1967 Chevrolet El Camino 1968 Chevrolet El Camino 1969 Chevrolet El Camino 1970 Chevrolet El Camino 1971 Chevrolet El Camino 1972 Chevrolet Malibu 1964 Chevrolet Malibu 1965 Chevrolet Malibu 1966 Chevrolet Malibu 1967 Chevrolet Monte Carlo 1970 Chevrolet Monte Carlo 1971 Chevrolet Monte Carlo 1972 GMC Sprint 1971 GMC Sprint 1972 Pontiac GTO 1964 Pontiac GTO 1965 Pontiac GTO 1966 Pontiac GTO 1967 Pontiac GTO 1968 Pontiac GTO 1969 Pontiac GTO 1970 Pontiac GTO 1971 Pontiac GTO 1972 Pontiac Grand Prix 1969 Pontiac Grand Prix 1970 Pontiac Grand Prix 1971 Pontiac Grand Prix 1972 Pontiac Lemans 1964 Pontiac Lemans 1965 Pontiac Lemans 1966 Pontiac Lemans 1967 Pontiac Lemans 1968 Pontiac Lemans 1969 Pontiac Lemans 1970 Pontiac Lemans 1971 Pontiac Lemans 1972 Pontiac Tempest 1964 Pontiac Tempest 1965 Pontiac Tempest 1966 Pontiac Tempest 1967 Pontiac Tempest 1968 Pontiac Tempest 1969 Pontiac Tempest 1970
