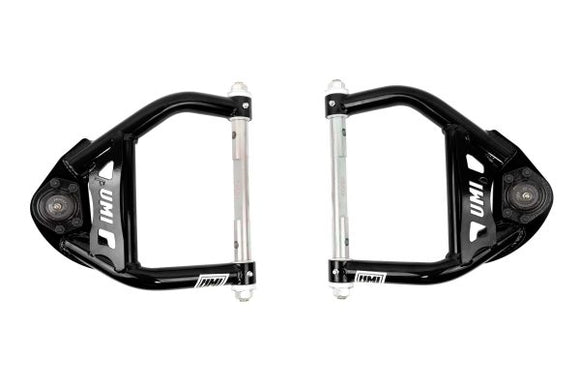

UMI Performance 64-72 A-Body Tubular Front Upper A-arms 1/2in Taller Ball Joints

$924.79 CAD

UMI Performance SKU: umi4033-1-B

Earn [points_amount] when you buy this item.

4033-1-B

Improve handling and make your classic A-Body feel like a modern day muscle car by combining our popular P/N 4033 upper a-arms with ½” taller premium ball joints. P/N 4033-1 a-arms combine the benefit of additional caster with increased negative camber potential throughout the suspension travel. The relocated ball joint plate offers up to six degrees caster without excessive shimming while the ½” taller ball joint creates up to one additional degree negative camber at full bump travel. Expect improved steering feel courtesy of increased caster and an overall increase in lateral grip due to the camber improvement. Features include greaseable, low deflection UMI designed and manufactured Delrin bushings, chromoly cross shafts, improved header clearance and polyurethane bump stops. These track-tested, jig built DOM A-arms are supplied with a durable gloss red or black powder coat finish which guarantees your performance parts stay beautiful on your street car, drag car, autocrosser or Pro-touring machine. Designed and manufactured with pride in Philipsburg, PA – USA.

Hardware kit, Part # 4003 – Upper A-Arm hardware kit includes 7/16-14 Grade 8 bolts, washers and nylock nuts. Kit includes everything needed to mount your new UMI Performance A-Arms to your vehicle.

Features:

  • New premium 1/2″ taller ball joints for improved camber curve
  • Relocated ball joint pad for increased caster without excess shims
  • CNC machined ball joint mount & tubing radiuses
  • Robust tubular design with machined gussets
  • Precision bent tubing on programmable tube bender
  • TIG welded for superior strength and clean looks
  • 4140 chromoly cross shafts, CNC machined & zinc plated
  • UMI built, greaseable & fluted CNC machined no deflection Delrin bushings
  • Polyurethane bump stops included
  • Direct bolt-in compatible with factory or UMI lower a-arm and factory spindle
  • May also work in conjunction with other brand lower A-arms and/or spindles
  • Package includes recommended alignment specs and detailed installation instructions

Note: The UMI 4033-1 upper a-arm is designed to work with factory height or lowered cars. We do not recommend using the 4033-1 with cargo coils or above stock height cars, as the bump stop may contact the cross brace.



4033-1 Installation Instructions

MAKE MODEL YEAR
Make Model Year
Buick GS 1970
Buick GS 1971
Buick GS 1972
Buick GS 350 1968
Buick GS 350 1969
Buick GS 400 1968
Buick GS 400 1969
Buick GS 455 1970
Buick GS 455 1971
Buick GS 455 1972
Buick Gran Sport 1965
Buick Gran Sport 1966
Buick Gran Sport 1967
Buick Skylark 1964
Buick Skylark 1965
Buick Skylark 1966
Buick Skylark 1967
Buick Skylark 1968
Buick Skylark 1969
Buick Skylark 1970
Buick Skylark 1971
Buick Skylark 1972
Buick Special 1964
Buick Special 1965
Buick Special 1966
Buick Special 1967
Buick Special 1968
Buick Special 1969
Buick Sportwagon 1964
Buick Sportwagon 1965
Buick Sportwagon 1966
Buick Sportwagon 1967
Buick Sportwagon 1968
Buick Sportwagon 1969
Buick Sportwagon 1970
Buick Sportwagon 1971
Buick Sportwagon 1972
Chevrolet Chevelle 1964
Chevrolet Chevelle 1965
Chevrolet Chevelle 1966
Chevrolet Chevelle 1967
Chevrolet Chevelle 1968
Chevrolet Chevelle 1969
Chevrolet Chevelle 1970
Chevrolet Chevelle 1971
Chevrolet Chevelle 1972
Chevrolet El Camino 1964
Chevrolet El Camino 1965
Chevrolet El Camino 1966
Chevrolet El Camino 1967
Chevrolet El Camino 1968
Chevrolet El Camino 1969
Chevrolet El Camino 1970
Chevrolet El Camino 1971
Chevrolet El Camino 1972
Chevrolet Malibu 1964
Chevrolet Malibu 1965
Chevrolet Malibu 1966
Chevrolet Malibu 1967
Chevrolet Monte Carlo 1970
Chevrolet Monte Carlo 1971
Chevrolet Monte Carlo 1972
GMC Sprint 1971
GMC Sprint 1972
Pontiac GTO 1964
Pontiac GTO 1965
Pontiac GTO 1966
Pontiac GTO 1967
Pontiac GTO 1968
Pontiac GTO 1969
Pontiac GTO 1970
Pontiac GTO 1971
Pontiac GTO 1972
Pontiac Grand Prix 1969
Pontiac Grand Prix 1970
Pontiac Grand Prix 1971
Pontiac Grand Prix 1972
Pontiac Lemans 1964
Pontiac Lemans 1965
Pontiac Lemans 1966
Pontiac Lemans 1967
Pontiac Lemans 1968
Pontiac Lemans 1969
Pontiac Lemans 1970
Pontiac Lemans 1971
Pontiac Lemans 1972
Pontiac Tempest 1964
Pontiac Tempest 1965
Pontiac Tempest 1966
Pontiac Tempest 1967
Pontiac Tempest 1968
Pontiac Tempest 1969
Pontiac Tempest 1970
