4047-300-B

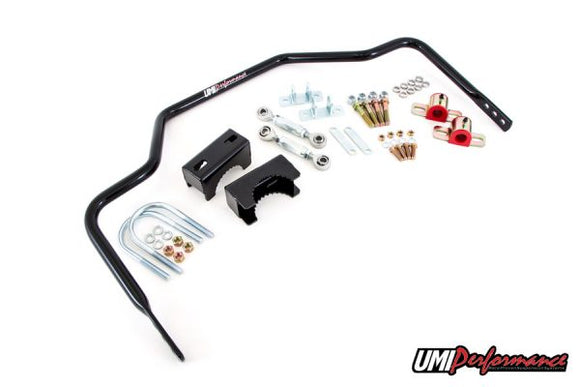

UMI’s A-body Pro-Tour style bar is a true multi purpose high performance rear sway bar. The chassis and differential housing mounts reduce bind normally associated with the factory style bars. The bars are 1″ diameter hollow and feature three different rates (street/auto-x, road race/strip). UMI’s tried and true CNC machined clamping system allows differential housing mounting on 2.75″, 3″ and 3.25″ diameter housings. These can be bolted on, or welded for additional security. The double shear chassis mounts are held in place by four 3/8″ fasteners. Drilling through the crossmember is required and a template /instructions are included. The house made hex adjuster allows pre-loading of the bar when used for drag applications so your car leaves straight. Choose the longest hole for street, middle hole for auto-x, road race and the shortest hole for drag use.
Features:
- Light weight 1” tubular sway bar, CNC bent
- Designed to clear all rear ends- 10-Bolt, 12-Bolt, 9”, M9, S60 and others
- Heavy duty race style chromoly spherical rod ends with Teflon race
- High strength 4140 chromoly zinc-plated u-bolts
- CNC machined sway bar mounts with grip teeth and reinforcement gussets
- 1” Billet steel hex adjuster for extreme strength
- Premium greaseable polyurethane bushings
- 100% bolt in installation!
- Durable long lasting powder coat
Axle Tube Diameters:
- Factory rear end, Strange Engineering and Currie rear ends use 3” diameter axle tubes
- Moser Engineering 12-bolt rear ends use 3” diameter axle tubes
- Moser Engineering 9” rear ends manufactured after early 2002 use 3” axle tubes. Rear ends manufactured prior to early 2002 use 3.25” axle tubes. Please verify diameter before ordering.
- Other brand rear ends will vary, please check your axle tube diameter before ordering.
MAKE MODEL YEAR Make Model Year Buick GS 1970 Buick GS 1971 Buick GS 1972 Buick GS 350 1968 Buick GS 350 1969 Buick GS 400 1968 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1971 Buick GS 455 1972 Buick Gran Sport 1965 Buick Gran Sport 1966 Buick Gran Sport 1967 Buick Skylark 1964 Buick Skylark 1965 Buick Skylark 1966 Buick Skylark 1967 Buick Skylark 1968 Buick Skylark 1969 Buick Skylark 1970 Buick Skylark 1971 Buick Skylark 1972 Buick Special 1964 Buick Special 1965 Buick Special 1966 Buick Special 1967 Buick Special 1968 Buick Special 1969 Buick Sportwagon 1964 Buick Sportwagon 1965 Buick Sportwagon 1966 Buick Sportwagon 1967 Buick Sportwagon 1968 Buick Sportwagon 1969 Buick Sportwagon 1970 Buick Sportwagon 1971 Buick Sportwagon 1972 Chevrolet Chevelle 1964 Chevrolet Chevelle 1965 Chevrolet Chevelle 1966 Chevrolet Chevelle 1967 Chevrolet Chevelle 1968 Chevrolet Chevelle 1969 Chevrolet Chevelle 1970 Chevrolet Chevelle 1971 Chevrolet Chevelle 1972 Chevrolet El Camino 1964 Chevrolet El Camino 1965 Chevrolet El Camino 1966 Chevrolet El Camino 1967 Chevrolet El Camino 1968 Chevrolet El Camino 1969 Chevrolet El Camino 1970 Chevrolet El Camino 1971 Chevrolet El Camino 1972 Chevrolet Malibu 1964 Chevrolet Malibu 1965 Chevrolet Malibu 1966 Chevrolet Malibu 1967 Chevrolet Monte Carlo 1970 Chevrolet Monte Carlo 1971 Chevrolet Monte Carlo 1972 GMC Sprint 1971 GMC Sprint 1972 Pontiac GTO 1964 Pontiac GTO 1965 Pontiac GTO 1966 Pontiac GTO 1967 Pontiac GTO 1968 Pontiac GTO 1969 Pontiac GTO 1970 Pontiac GTO 1971 Pontiac GTO 1972 Pontiac Grand Prix 1969 Pontiac Grand Prix 1970 Pontiac Grand Prix 1971 Pontiac Grand Prix 1972 Pontiac Lemans 1964 Pontiac Lemans 1965 Pontiac Lemans 1966 Pontiac Lemans 1967 Pontiac Lemans 1968 Pontiac Lemans 1969 Pontiac Lemans 1970 Pontiac Lemans 1971 Pontiac Lemans 1972 Pontiac Tempest 1964 Pontiac Tempest 1965 Pontiac Tempest 1966 Pontiac Tempest 1967 Pontiac Tempest 1968 Pontiac Tempest 1969 Pontiac Tempest 1970
