4060

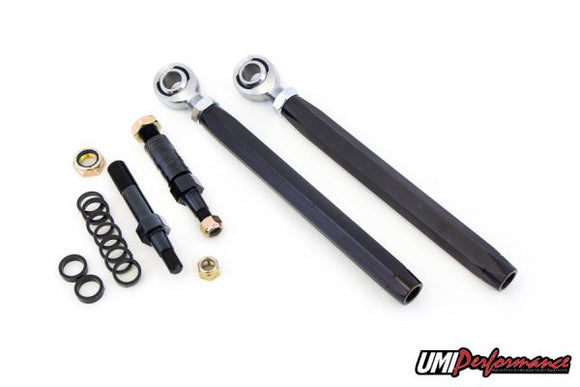

UMI’s GM A-body bump steer kit (1971-1972) is designed to reduce or eliminate toe change during suspension travel (also known as “bump steer”). Reduction of bump steer improves handling and straight line stability and enhances overall precision of the steering system. These direct bolt-in kits allow the builder to relocate the outer tie rod end lower than stock (or higher if necessary). The stud taper is designed for exact factory fit for each application and is constructed of 4140 CrMo for strength and durability, no spindle drilling required. The adjuster is 6061-T6 Aluminum hex for lightweight strength and features a hard anodized protective finish. Kits include shims of 0.125”, 0.1875” and 0.250”. These race-tested bump steer kits are 100% designed and manufactured with pride in Philipsburg, PA – USA.
1971-1972 GM A Body: Fits factory inner tie rods. For replacement, use Proforged inner tie rod 104-10016 or equivalent, (2) required
Features:
- 4140 CrMo stud construction.
- Race quality rod end, jam nuts and locking hardware.
- Laser cut spacers, of 0.125”, 0.1875” and 0.250”.
- 6061-T6 Black Anodized Aluminum Adjuster Sleeve; 5/8-18 RH and 11/16-18 LH threads, 9.200” sleeve length.
- Works with factory inner tie rods and factory spindle.
- Simply bolt-on. No spindle drilling required.
- Instructions with technical links included.
- Manufactured with pride in Philipsburg, PA – USA
- Race proven.
MAKE MODEL YEAR Make Model Year Buick GS 1971 Buick GS 1972 Buick GS 455 1971 Buick GS 455 1972 Buick Skylark 1971 Buick Skylark 1972 Buick Sportwagon 1971 Buick Sportwagon 1972 Chevrolet Chevelle 1971 Chevrolet Chevelle 1972 Chevrolet El Camino 1971 Chevrolet El Camino 1972 Chevrolet Monte Carlo 1971 Chevrolet Monte Carlo 1972 GMC Sprint 1971 GMC Sprint 1972 Oldsmobile 442 1971 Oldsmobile Cutlass 1971 Oldsmobile Cutlass 1972 Oldsmobile F85 1971 Oldsmobile F85 1972 Oldsmobile Vista Cruiser 1971 Oldsmobile Vista Cruiser 1972 Pontiac GTO 1971 Pontiac GTO 1972 Pontiac Grand Prix 1971 Pontiac Grand Prix 1972 Pontiac Lemans 1971 Pontiac Lemans 1972
