AB8250-1
UMI’s lowering package consists of four Viking double adjustable shocks, a hybrid front coil over spring system and either 1 or 2 inch UMI rear lowering springs. With moderately increased spring rates for improved handling, this kit allows you to adjust your cars altitude and attitude for maximum performance and a cool appearance. The hybrid front coil system features 0-3″ front drop and is easy to adjust and lock in place. The 1 or 2 inch rear lowering allows you to knock the factory height down a bit or go the extra inch for the Pro-Tour look. Double adjustable Viking shocks feature 19 compression and 19 rebound settings. These independently adjustable settings allow you to change from street to strip to corner carving handling simply by turning the knobs. No tools required.
- 0-3″ lowering range up front, 1 or 2 inch choice for the rear
- Lower ride height improves handling by lowering center of gravity
- Lower ride height improves handling by placing the upper a-arm in a more favorable angle
- Viking features Premium quality Made In USA springs, shot peened and coated for durability
- Easy front height adjustment with optional Torrington bearings and wrench
- Shocks hand built in Lakeville, Minnesota
- Double adjustable features 19 independent compression and rebound settings (for a total of 361 possible combinations)
- Tune for street, strip or corner carving at the turn of a knob – no tools required
- Baseline shock settings – 6C,8R all around street, 10C,12R all around corner carving, 6C,2R front and 6C,6R rear strip
- Bolt in kit, no welding required. And best of all, no spring compressor required up front

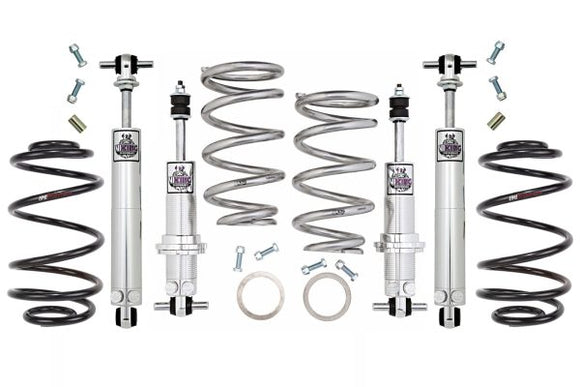

Kit Includes:
- (2) Front coil over shocks, double adjustable
- (2) Rear shocks, double adjustable
- (2) Front springs with choice of 250, 350, 450 or 550 spring rate
- (2) Rear springs with choice of 1″ or 2″ rear drop
Spanner Wrench & Thrust Bearing Kit: Spanner wrench tool is used to adjust vehicle height while shock stays mounted. This wrench is needed to make height adjustments. The thrust bearing kit is designed to be placed between the spring and the spring seat attached to the shock. This makes for easier adjustments since the spring seat is rotating on a bearing. This kit is recommended for easier adjustments but is not needed to complete the installation. We do not recommend adjusting without a thrust bearing kit.
Front Spring Rate Options:
- 250lb- 11″ tall springs for drag race only. Serious lightening required.
- 350lb- Small block cruise or drag race with lightening required.
- 450lb- Small block cruise, big block drag race.
- 550lb- Small block handling, all big blocks except drag.
MAKE MODEL YEAR Make Model Year Buick GS 1970 Buick GS 1971 Buick GS 1972 Buick GS 350 1968 Buick GS 350 1969 Buick GS 400 1968 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1971 Buick GS 455 1972 Buick Skylark 1968 Buick Skylark 1969 Buick Skylark 1970 Buick Skylark 1971 Buick Skylark 1972 Buick Special 1968 Buick Special 1969 Buick Sportwagon 1968 Buick Sportwagon 1969 Buick Sportwagon 1970 Buick Sportwagon 1971 Buick Sportwagon 1972 Chevrolet Chevelle 1968 Chevrolet Chevelle 1969 Chevrolet Chevelle 1970 Chevrolet Chevelle 1971 Chevrolet Chevelle 1972 Chevrolet El Camino 1968 Chevrolet El Camino 1969 Chevrolet El Camino 1970 Chevrolet El Camino 1971 Chevrolet El Camino 1972 Chevrolet Monte Carlo 1970 Chevrolet Monte Carlo 1971 Chevrolet Monte Carlo 1972 GMC Sprint 1971 GMC Sprint 1972 Oldsmobile 442 1968 Oldsmobile 442 1969 Oldsmobile 442 1970 Oldsmobile 442 1971 Oldsmobile Cutlass 1968 Oldsmobile Cutlass 1969 Oldsmobile Cutlass 1970 Oldsmobile Cutlass 1971 Oldsmobile Cutlass 1972 Oldsmobile F85 1968 Oldsmobile F85 1969 Oldsmobile F85 1970 Oldsmobile F85 1971 Oldsmobile F85 1972 Oldsmobile Vista Cruiser 1968 Oldsmobile Vista Cruiser 1969 Oldsmobile Vista Cruiser 1970 Oldsmobile Vista Cruiser 1971 Oldsmobile Vista Cruiser 1972 Pontiac GTO 1968 Pontiac GTO 1969 Pontiac GTO 1970 Pontiac GTO 1971 Pontiac GTO 1972 Pontiac Grand Prix 1968 Pontiac Grand Prix 1969 Pontiac Grand Prix 1970 Pontiac Grand Prix 1971 Pontiac Grand Prix 1972 Pontiac Lemans 1968 Pontiac Lemans 1969 Pontiac Lemans 1970 Pontiac Lemans 1971 Pontiac Lemans 1972 Pontiac Tempest 1968 Pontiac Tempest 1969 Pontiac Tempest 1970
