ABF803-1-B

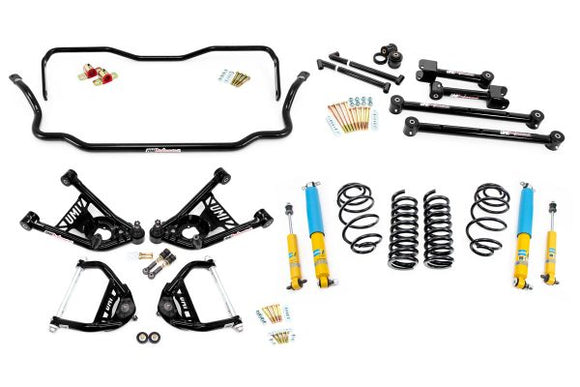

UMI’s Stage 2 handling kit includes everything to upgrade and rebuild the suspension on your classic GM A-Body. The Stage 2 kit includes upper and lower A-Arms with 1/2″ added spindle height via tall ball joints, heavy duty UMI sway bars with new end links and greaseable bushings, Bilstein shocks for all four corners, UMI premium lowering springs, rear tubular upper and lower control arms, replacement rear end housing bushings and heavy duty tubular frame braces. We also include all new Grade 8 hardware with locking nuts to complete the installation. This kit will make any classic cruiser feel like a modern day muscle car. UMI’s Stage 2 may be our entry level complete kit but it isn’t entry level performance or entry level quality. Perfect for the weekend warrior looking to go for a back road cruise, perhaps hit the drag strip or even an auto-x. Available in UMI Red or Gloss Black powder coat. As with all UMI Performance products, this kit is 100% Made In USA. Proven on Hot Rod Power Tour and Good Guys Hall of Fame Tour.
Installation notes: SBC, Pontiac 400 or BBC with aluminum heads and intake tend to sit level with this kit. Lightweight LS may require spring trimming. An additional 1/4″ drop may occur on vehicles with all cast iron full weight big block engines or power adders.
UMI’s Stage 2 Handling Kit Includes:
- 4031 – Tubular lower front a-arms with polyurethane bushings.
- 4033-1 – Upper front a-arms with Delrin bushings, tall ball joints.
- 4004 – Front upper & lower Grade 8 hardware kit.
- 4035 – Heavy duty 1-1/4” front sway bar with new bushings & endlinks.
- 4015 – Tubular rear lower control arms with polyurethane bushings.
- 4016 – Tubular rear upper control arms with polyurethane bushings.
- 4001 – Rear control arm Grade 8 hardware kit.
- 4028 – Tubular frame braces with hardware.
- 4034 – Solid 1” heat treated rear sway bar.
- 3000 – Replacement rear end housing bushings.
- 4050 – 1” lowering springs, linear spring rates (530 lb/in front, 130 lb/in rear).
- Bilstein monotube shocks
MAKE MODEL YEAR Make Model Year Buick GS 1970 Buick GS 1971 Buick GS 1972 Buick GS 350 1968 Buick GS 350 1969 Buick GS 400 1968 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1971 Buick GS 455 1972 Buick Skylark 1968 Buick Skylark 1969 Buick Skylark 1970 Buick Skylark 1971 Buick Skylark 1972 Buick Special 1968 Buick Special 1969 Buick Sportwagon 1968 Buick Sportwagon 1969 Buick Sportwagon 1970 Buick Sportwagon 1971 Buick Sportwagon 1972 Chevrolet Chevelle 1968 Chevrolet Chevelle 1969 Chevrolet Chevelle 1970 Chevrolet Chevelle 1971 Chevrolet Chevelle 1972 Chevrolet El Camino 1968 Chevrolet El Camino 1969 Chevrolet El Camino 1970 Chevrolet El Camino 1971 Chevrolet El Camino 1972 Chevrolet Monte Carlo 1970 Chevrolet Monte Carlo 1971 Chevrolet Monte Carlo 1972 GMC Sprint 1971 GMC Sprint 1972 Oldsmobile 442 1968 Oldsmobile 442 1969 Oldsmobile 442 1970 Oldsmobile 442 1971 Oldsmobile Cutlass 1968 Oldsmobile Cutlass 1969 Oldsmobile Cutlass 1970 Oldsmobile Cutlass 1971 Oldsmobile Cutlass 1972 Oldsmobile F85 1968 Oldsmobile F85 1969 Oldsmobile F85 1970 Oldsmobile F85 1971 Oldsmobile F85 1972 Oldsmobile Vista Cruiser 1968 Oldsmobile Vista Cruiser 1969 Oldsmobile Vista Cruiser 1970 Oldsmobile Vista Cruiser 1971 Oldsmobile Vista Cruiser 1972 Pontiac GTO 1968 Pontiac GTO 1969 Pontiac GTO 1970 Pontiac GTO 1971 Pontiac GTO 1972 Pontiac Grand Prix 1968 Pontiac Grand Prix 1969 Pontiac Grand Prix 1970 Pontiac Grand Prix 1971 Pontiac Grand Prix 1972 Pontiac Lemans 1968 Pontiac Lemans 1969 Pontiac Lemans 1970 Pontiac Lemans 1971 Pontiac Lemans 1972 Pontiac Tempest 1968 Pontiac Tempest 1969 Pontiac Tempest 1970
