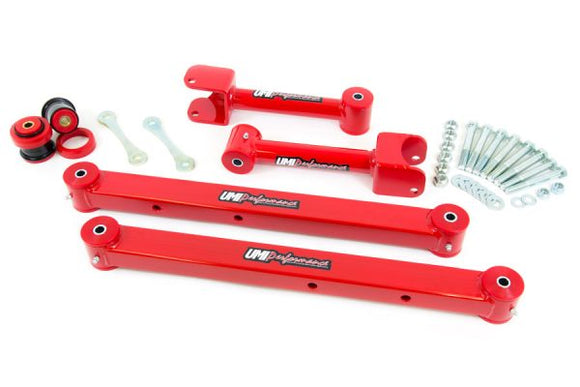

UMI Performance 73-77 GM A-Body Rear Suspension Kit Non Adj - Red

ABR301-R

UMI’s rear control arm kit is a bulletproof addition to your car. Suitable for street, strip or corner carving, this kit minimizes suspension deflection for a crisp handling setup and less wheel hop. The boxed lower control arms feature reinforced sway bar mounting holes to allow factory style sway bar mounting while the included shim allows the sway bar to sit at factory height. The upper fixed length control arms feature a heavy duty ¼” thick laser cut mounting pads designed to work on all rear end housings. The included polyurethane rear end housing bushings press into the rear end “ears” replacing the worn out factory rubber bushings. The new control arms attach in place using the supplied Grade 8 mounting hardware and Ny-lock nuts. UMI’s control arms are CNC machined for accuracy and assembled with high quality greaseable polyurethane bushings.

Features

• 1/8” wall thickness USA mild steel tubing
• CNC machined for accuracy and consistency
• MIG welded heavy duty bushing holders
• CNC laser cut ¼” upper mounting pads
• TIG welded sleeves reinforce sway bar mounting holes
• Greaseable polyurethane bushings with zinc plated steel sleeves
• Grade 8 mounting hardware and Ny-lock nuts
• Durable and long lasting powder coat finish
• Made in Philipsburg, PA – USA

Installation: Item installs in approximately two hours using basic hand tools.
