FBF003-B

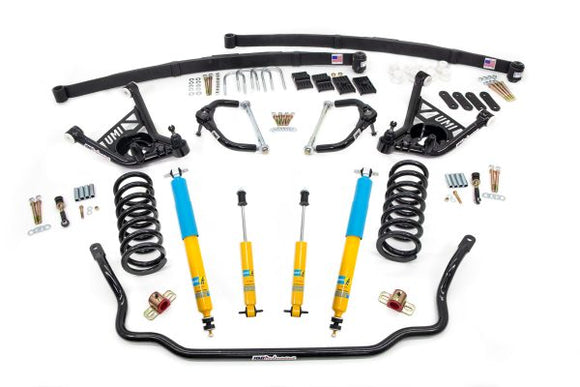

UMI’s FBF003 Stage 3 handling kit features everything you need to transform your 2nd Gen F-Body from a land yacht into a modern handling, corner carving muscle car. Caster corrected upper and lower a-arms enhance high speed stability and reduce wandering. These arms feature a tall ball joint in the upper arm and Delrin bushings in the lower to improve steering response and optimize camber gain for better cornering. 2″ front lowering springs and rear lowering leafs take away that floating feeling so common with stock, worn out springs. Bilstein shocks feature comfortable compression and sporty rebound damping to control body movement and improve response when hitting transitions on your favorite back road. The 2nd Gen platform responds nicely to the heavy duty 1-¼” front sway bar which prevents body roll and makes the car much more fun, and easy, to drive. The UMI designed leafs are delivered with the front bushing installed and the kit includes laser cut shackles with Delrin bushings for a crisp, sporty ride. Also included are high quality polyurethane isolator pads as well as heavy duty Made In USA U-bolts and hardware. This kit is suitable for corner carving and even daily driving with a sporty feel. 100% Made In USA of USA materials.
Optional hardware kit: Upper and lower a-arm premium quality installation hardware kit. P/N 2602 for 1970-1974 or 2603 for 1975-1981.
Includes:
- 2652-B Delrin bushing lower a-arm features excellent steering precision and increased caster for stability.
- 2656-1-B Delrin bushing CrMo cross shaft upper a-arm features additional caster for stability as well as ½” taller upper ball joint to improve cornering.
- 2647F 2” lowering springs are built from premium CrSi wire with 600 lb/in spring rate to prevent floating without being harsh.
- 4035-B 1-¼” front sway bar resists body roll and includes bushings and endlinks.
- Bilstein shocks feature comfortable compression valving and high performance rebound valving. Perfect for daily driving mixed with aggressive cornering.
- 2620 2” drop leaf springs (175 lb/in) come loaded with front bushings. Spring rate is high performance yet daily driver worthy.
- 2626 Laser cut shackle kit with high performance Delrin bushings feature premium performance and reduced deflection.
- 2627 Heavy duty U-bolts, front bolt and polyurethane axle pads improve performance and replace rusty, worn out components.
MAKE MODEL YEAR Make Model Year Chevrolet Camaro 1970 Chevrolet Camaro 1971 Chevrolet Camaro 1972 Chevrolet Camaro 1973 Chevrolet Camaro 1974 Chevrolet Camaro 1975 Chevrolet Camaro 1976 Chevrolet Camaro 1977 Chevrolet Camaro 1978 Chevrolet Camaro 1979 Chevrolet Camaro 1980 Chevrolet Camaro 1981 Pontiac Firebird 1970 Pontiac Firebird 1971 Pontiac Firebird 1972 Pontiac Firebird 1973 Pontiac Firebird 1974 Pontiac Firebird 1975 Pontiac Firebird 1976 Pontiac Firebird 1977 Pontiac Firebird 1978 Pontiac Firebird 1979 Pontiac Firebird 1980 Pontiac Firebird 1981
