UMI Performance 93-97 GM F-Body Front End Kit Stage 2 - Black

FBT002-B

Description

UMI’s Stage 2 kit provides a solid foundation for your street car used for drag strip duty. It features the best of both worlds combining weight reduction and strength with performance and comfort. Our dual tube k-member is known as the strongest in its class and can withstand wheel stand landings and street abuse while still shaving weight as well as protecting the oil pan. The P/N 2305 lower arms feature poly bushings on the straight strut portion to absorb road noise while the non-adjustable uppers guide the suspension on greaseable poly bushings. The upper and lower a-arms are assembled with premium ball joints and save an additional 8lbs of weight. UMI’s k-member and a-arms are built from strong USA DOM tubing, precision bent, CNC notched and welded in a jig to form a solid base. Included k-member is designed to work with factory motor mounts, polyurethane motor mounts or UMI’s popular solid billet aluminum motor mounts P/N 2323. The Stage 2 kit is a direct bolt in removing front end weight while maintaining street comfort and enhancing performance. Save $75.00 when purchasing these items as a kit.

Features:

• Heavy Duty k-member with dual tube construction.
• Tubular upper and lower a-arms with greaseable polyurethane bushings.
• Premium upper and lower ball joints installed.
• 33lbs of front end weight savings.
• Chromoly a-arms save an additional 1-1/2lbs.
• Works with factory steering rack.
• Includes new grade 10.9 a-arm mounting hardware.
• Direct bolt in replacement, no welding.
• Manufactured in Philipsburg, PA- USA.

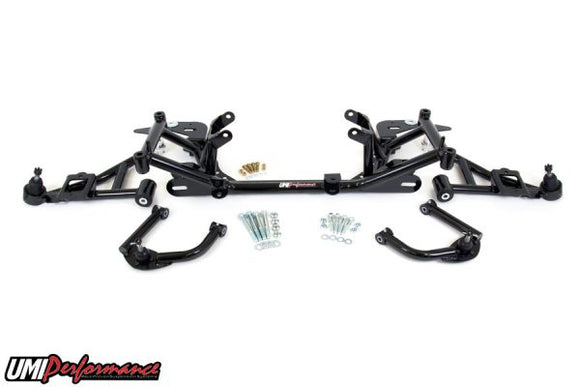

UMI’s Stage 2 Includes:

• #2325- Tubular dual tube k-member.
• #2305- Tubular street lower a-arms.
• #2311- Tubular street upper a-arms, polyurethane bushings.
• #2303- Grade 10.9 hardware with Ny-lock nuts.

  MAKE	MODEL	YEAR
  Make	Model	Year
  Chevrolet	Camaro	1993
  Chevrolet	Camaro	1994
  Chevrolet	Camaro	1995
  Chevrolet	Camaro	1996
  Chevrolet	Camaro	1997
  Pontiac	Firebird	1993
  Pontiac	Firebird	1994
  Pontiac	Firebird	1995
  Pontiac	Firebird	1996
  Pontiac	Firebird	1997
