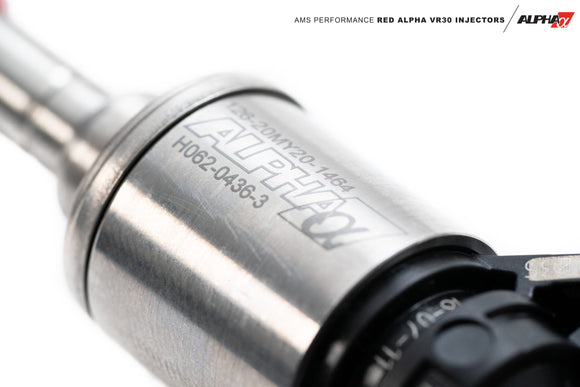

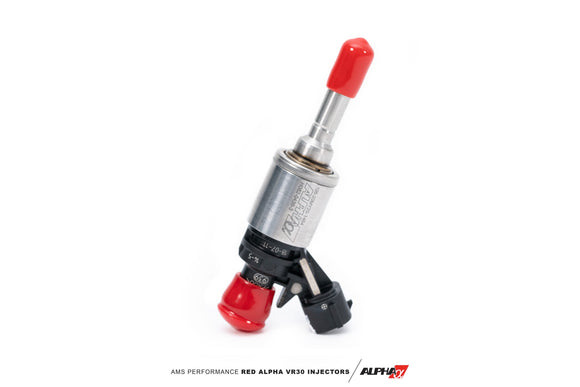

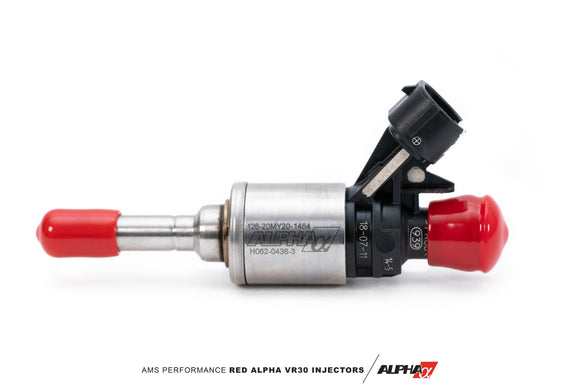

AMS Performance Red Alpha VR30DDTT Kinetic Direct Injectors

ALP.28.07.0004-1

DESCRIPTION

AMS Performance is excited to introduce the Red Alpha VR30DDTT Kinetic Direct Injectors! The limitations of the factory injectors become evident even at relatively lower horsepower numbers, especially when using ethanol based fuels like e85. We recognized early on in our development of the Infiniti Q50 and Q60 platforms with the VR30 engine that we would need to provide more fuel to support more power. Working together with an industry leader in fuel system technology, Nostrum High Performance, on the development of this component is the reason our customers know that they can rely on the Red Alpha Kinetic Direct Injectors to be the best built, best performing on the market.

• Fully Ethanol Compatible (e100, e85, e50, e30, etc.)
• Capable of Flowing 20 g/sec @ 100 bar
• CFD Optimized Design
• Capable of Supporting 1100+ whp on Gasoline
• Capable of Supporting 800+ whp on E85
• Fully Compatible with AMS Flex Fuel Kit and HPFP Kits

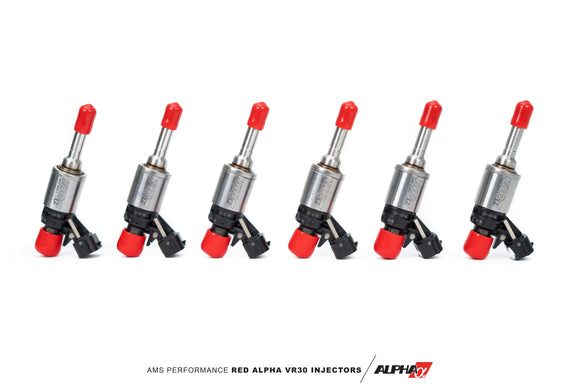

• Dynamically Flow Matched Set of 6 Injectors
• Each Individual Unit is Tested for Functionality and Flow
• Direct fit (same electrical connector and fuel rail connection)
• 180 Bar Recommended Operating Pressure

Engineered to be the Best

Utilizing specially patented nozzles designed and constructed specifically for the VR30DDTT combustion chamber, the Red Alpha VR30 direct injectors create proprietary kinetic particle break-up resulting in smaller droplet sizes, superior atomization and shorter liquid lengths. This means the Red Alpha kinetic direct injectors not only allow for increased horsepower, but make creating power more efficient! Engine tests show higher heat release and faster burn rates than conventional air-shear fuel injection mechanisms, resulting in improved fuel efficiency and increases in power. Through the use of Computational Fluid Dynamics (CFD) the Red Alpha VR30 Injector modeling shows the optimized fuel flow trajectories.

Construction and Materials

The Red Alpha VR30DDTT Kinetic Direct Injectors are derived from a brand new OE manufacturer direct VR30DDTT HDEV5 injector cores. As these injectors come via the OE supply chain they have VR30 specific, factory correct, overmold and fuel rail features. Nostrum High Performance has developed an advanced manufacturing process to machine the injector nozzles and plates via Electron Discharge Machining (EDM). This EDM technology is so revolutionary, Nostrum High Performance holds a patent on the process of using it for VR30 injector nozzle manufacturing. The nozzles are then heat treated and each component is individually tested prior to laser welding. During the entirety of the Nostrum manufacturing process, each injector and its subcomponents are serialized and tracked to allow for full traceability. AMS and Nostrum are so confident in the construction of these units, a full 24 month warranty against manufacturer’s defects is included at no additional cost to insure your investment.

Put it to the Test

What sets this and every AMS component apart from the competition is our rigorous battery of R&D testing. The Red Alpha VR30 Injectors have been tested for thousands of miles in multiple vehicles, including countless 1/4 and 1/2 mile runs, before being given the green light to release to the public. Our AMS Engine Calibrators have spent hundreds of hours testing these injectors in vehicles in order to refine them with Nostrum High Performance for maximum fueling performance and vehicle drivability. In addition to this research and development testing, all Red Alpha VR30 Injectors are bench tested, including 100% static flow testing and multi-point dynamic testing, by Nostrum. The injectors are then batched dynamically with a +/-5% variation in flow and are serialized with specific data packages for direct calibration before shipping as part of their extensive quality control process.

Notes

• In order to take full advantage of the Red Alpha Kinetic Direct Injectors, specific calibrations to your ECU tune file will need to be made. Once the injectors are installed, an appropriate ECU calibration must be loaded before the engine starts and runs or damage can occur! Please contact an AMS sales representative to discuss your ECU tuning needs by emailing sales@amsperformance.com.
• Fuel rail replacement is highly recommended. Please see OEM Injector Failure statement below for more details.
• Comprehensive Installation Instructions – HERE
• Comprehensive Tuning Guide – HERE
• Warranty Details – HERE
• OEM Injector Failure White Paper – HERE

Applications

• • 2017+ INFINITI Q60 with 3.0L Twin Turbo VR30
  • 2016+ INFINITI Q50 with 3.0L Twin Turbo VR30

WARNING/DANGER: SERIOUS RISK OF FIRE, EXPLOSION, BODILY INJURY INCLUDING RESULTING DEATH, AND ENGINE, VEHICLE, AND OTHER PROPERTY DAMAGE. FUEL SYSTEM COMPONENTS MUST BE INSTALLED AND REMOVED ONLY  BY A QUALIFIED MOTOR SPORTS TECHNICIAN. TECHNICIAN ALSO MUST BE TRAINED IN HOW TO INSTALL AND REMOVE THIS COMPONENT FROM THIS SPECIFIC VEHICLE. TECHNICIAN MUST NOT SMOKE OR PARTICIPATE IN ANY ACTIVITY THAT WOULD BE CONSIDERED A CATALYST FOR IGNITION WHILE INSTALLING OR REMOVING COMPONENT AND MUST READ THE INSTALLATION INSTRUCTIONS BEFORE INSTALLATION OR REMOVAL.
