BMWMCAKIT
Description
Details
- SKU: KIT-BMWMCAKIT
- Quality: OEM
OE Numbers
31102283577, 31102283578, 31102283575, 31102283576, 37142283867MFG Numbers
JTC1427, JTC1424, JTC1423This Kit Includes

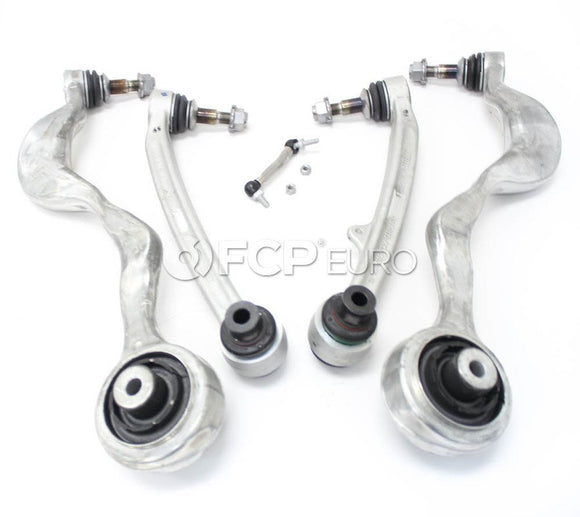

| Qty | Part | SKU | Brand |
|---|---|---|---|
| 1 | Suspension Control Arm and Ball Joint Assembly | TRW-JTC1426 |  |
| 1 | Suspension Control Arm and Ball Joint Assembly | TRW-JTC1427 | |
| 1 | Suspension Control Arm and Ball Joint Assembly | TRW-JTC1424 | |
| 1 | Suspension Control Arm and Ball Joint Assembly | TRW-JTC1423 | |

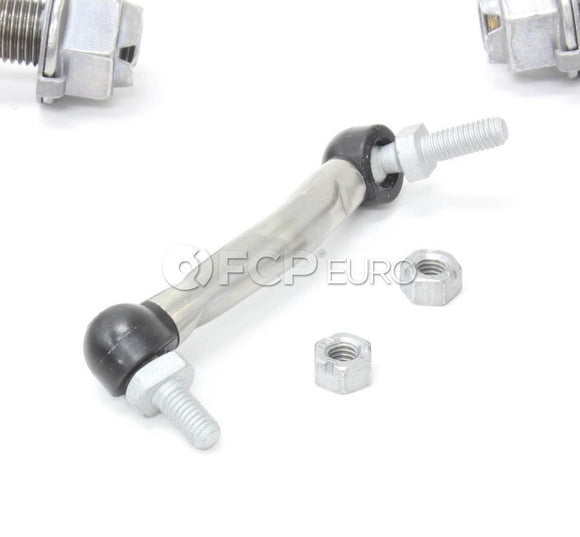

| 1 | Headlight Leveling Sensor Rod | BMW-37142283867 |  |
| 2 | Hex Nut | BMW-07129905817 | |
Product Information
Upgrade the handling performance of your non M E82/E88 1-series or non M E90/E91/E92/E93 3-series with components originally designed for the E9X M3 and E82 1M
To start off, the non M and M designed suspension are similar in terms of design philosophy which is not surprising when you consider that BMW's M division is working off what BMW already designed. However, there are numerous changes made to the M version control arms which drastically improve handling performance. Because the suspensions are almost identical in design it allows for the 1-Series M and M3 control arms to be installed in their non M counterparts without modification.

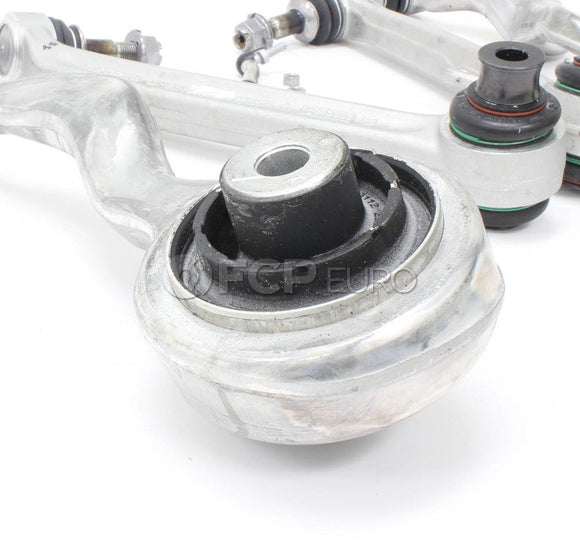

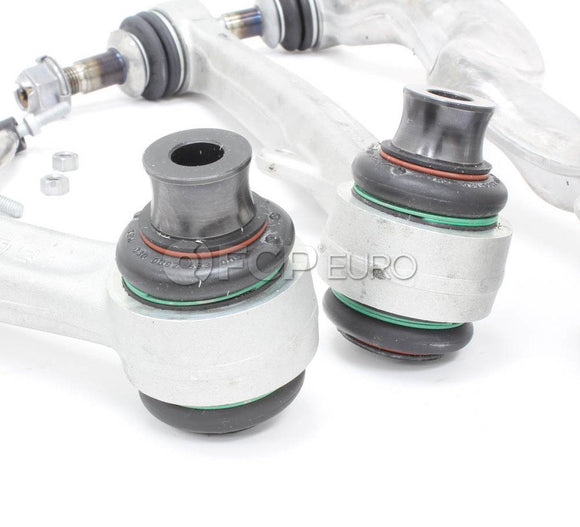

The tension struts (big curved control arms) feature a solid rubber inner bushing which reduces deflection and eliminates the hydro bushing weakness which is tearing and leaks. The solid rubber bushing is stiffer which helps tighten up the front suspension without being overly stiff and unforgiving. The lower wishbones (straight control arm) features a sealed inner bearing, also known as a monoball, that allows for the inner part of the control arm to rotate more freely when compared to the non M rubber bushing. This design change also allows for added durability in the long run. The lower control arm is slightly longer which adds approximately .75° of negative camber helping reduce under steer and drastically improving turn in response without having a significant impact on tire read life.
For installation hardware please see this kit:
31106763928KT - M3 Control Arm Installation Kit
Swipe to rotate
Diagram Parts List
2Screw With Washer (M12X15X9010 9) - 31106769907
3Suspension Subframe Mount Bolt - 31106769908
4Hexagon Screw With Flange - 31106850312
5Reinforcement Plate - 31102283032
6Tension Strut (E82 E90 E92 E93) - 31102283575
7Tension Strut (E82 E90 E92 E93) - 31102283576
8Tension Strut Bushing (E82 E90 E92 E93 1M M3) - 31102283579
About TRW
TRW Automotive is a business focused on the use of technology and manufacturing skill to make the impossible, possible. In 2014 TRW Automotive was acquired by ZF, a global leader in manufacturing OE (Original Equipment) spare parts for vehicles around the world. They remain as one of the world’s largest automotive suppliers through a combination of aftermarket and OEM (original equipment manufacturer) offerings. Their specialties span from electronics to steering to braking and occupant safety. TRW is OEM to over 40 major vehicle manufacturers, employing over 60,000 worldwide. The result? Chances are TRW parts were used during the manufacture of your car, so why not use TRW replacement parts when they need to be replaced? Stick with an OEM brand you can trust.
TRW Automotive is a global leader in automotive safety, producing one of the largest arrays of active and passive safety technologies. It continues to be at the forefront of developments in vehicle dynamics, driver assist systems, foundation brakes, inflatable restraints, seat belt technologies and the electronics and software advancements that will enhance the safety, convenience and comfort of tomorrow's vehicles.
