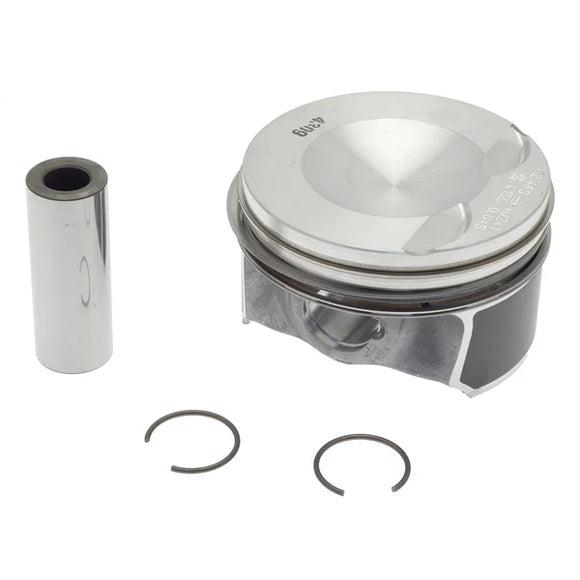

Piston Assembly - VW/Audi / 2.0T TSI / 8P A3 / Mk5 / GTI / GLI / Mk6 GTI / B6 Passat | 06H107065AM-KOL

Piston Assembly - VW/Audi / 2.0T TSI / 8P A3 / Mk5 / GTI / GLI / Mk6 GTI / B6 Passat | 06H107065AM-KOL

$184.99 CAD $733.00 CAD Save $548.01 CAD

Kolbenschmidt SKU: 06H107065AM

Earn [points_amount] when you buy this item.

Description Availability

06H107065AM

Description

Details

SKU:
KOB-40247600
Made in:
Germany
Quality:
OEM

OE Numbers

06H107065AM, 06H107065AA, 06H107065AB

MFG Numbers

40247600

Product Information

NOTE:

  • 1 Piston (4 Required)

Kolbenschmidt OE pistons are manufactured to achieve maximum strength combined with low weight, providing reduced emissions, low noise and more efficient fuel and oil consumption.

Kolbenschmidt is an OE supplier and supplies parts to all well-known engine manufacturers - all over the world. For every engine type the most suitable alloy is selected from the KS alloy range, and the most effective piston design is employed. Motor Service always supplies pistons complete with piston rings, piston pins and the associated piston pin circlips. All original KS pistons are supplied ready for assembly with the corresponding piston rings, piston pin and retainers already fitted, and are carefully packed as complete sets with the exception of the heavier pistons.

Features and Benefits:

Cast-in ring carriers of cast iron increase the durability of the first ring groove of diesel pistons many times over. Kolbenschmidt is a leader in the development of Alfin ring-carrier bonding.

Hard-anodized ring grooves prevent wear and micro welding in pistons for petrol engines. Laser-hardened grooves ensure optimum wear resistance and maximum durability for steel pistons. KS pistons feature special LofriKS, NanofriKS or graphite coatings on the piston skirt. These reduce friction inside the engine and ensure good emergency running properties. LofriKS coatings are also employed for acoustic reasons. Their use minimizes piston slap noises. NanofriKS is a further development of the tried and tested LofriKS coating, and additionally contains nanoparticles of titanium oxide, to increase the coating’s wear resistance and durability. Iron-coated piston skirts (Ferrocoat) guarantee reliable operation when used in aluminium silicon cylinder surfaces (Alusil).

Specially shaped piston pin bores (Hi-SpeKS) raise the dynamic load capacity of the piston pin bed, thereby increasing the piston’s durability.

Fits These Cars

Volkswagen Jetta

  • 2008 Volkswagen Jetta Engine Piston
    Engine code: CCTA, Incl.Piston Pin
  • 2008 Volkswagen Jetta Engine Piston
    Engine code: CBFA, Incl.Piston Pin
  • 2009 Volkswagen Jetta Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2010 Volkswagen Jetta Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2012 Volkswagen Jetta Engine Piston
    Engine code: CBFA, Incl.Piston Pin and Piston Ring Set


Volkswagen Passat

  • 2008 Volkswagen Passat Engine Piston
    Engine code: CCTA, Incl.Piston Pin
  • 2009 Volkswagen Passat Engine Piston
    From Chassis/VIN 8J-9-013 301, Incl.Piston Pin and Piston Ring Set
  • 2009 Volkswagen Passat Engine Piston
    To Chassis/VIN 8J-9-013 300, Incl.Piston Pin and Piston Ring Set
  • 2010 Volkswagen Passat Engine Piston
    Incl.Piston Pin and Piston Ring Set


Volkswagen Eos

  • 2009 Volkswagen Eos Engine Piston
    Engine code: CCTA, Incl.Piston Pin and Piston Ring Set
  • 2009 Volkswagen Eos Engine Piston
    Engine code: CBFA, Incl.Piston Pin and Piston Ring Set
  • 2010 Volkswagen Eos Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2011 Volkswagen Eos Engine Piston
    Engine code: CCTA, To 05/30/2011, Incl.Piston Pin and Piston Ring Set
  • 2011 Volkswagen Eos Engine Piston
    Engine code: CBFA, Incl.Piston Pin and Piston Ring Set


Volkswagen Tiguan

  • 2009 Volkswagen Tiguan Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2010 Volkswagen Tiguan Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2011 Volkswagen Tiguan Engine Piston
    To 05/30/2011, Incl.Piston Pin and Piston Ring Set


Volkswagen GTI

  • 2008 Volkswagen GTI Engine Piston
    Engine code: CCTA, Incl.Piston Pin
  • 2008 Volkswagen GTI Engine Piston
    Engine code: CBFA, Incl.Piston Pin
  • 2009 Volkswagen GTI Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2010 Volkswagen GTI Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2011 Volkswagen GTI Engine Piston
    Engine code: CCTA, To 05/30/2011, Incl.Piston Pin and Piston Ring Set
  • 2011 Volkswagen GTI Engine Piston
    Engine code: CBFA, Incl.Piston Pin and Piston Ring Set


Volkswagen CC

  • 2009 Volkswagen CC Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2010 Volkswagen CC Engine Piston
    Incl.Piston Pin and Piston Ring Set
  • 2011 Volkswagen CC Engine Piston
    Engine code: CCTA, To 05/30/2011, Incl.Piston Pin and Piston Ring Set
  • 2011 Volkswagen CC Engine Piston
    Engine code: CBFA, Incl.Piston Pin and Piston Ring Set


Volkswagen Beetle

  • 2012 Volkswagen Beetle Engine Piston
    Engine code: CBFA, Incl.Piston Pin and Piston Ring Set

TT Audi MK2


  • 2009 Audi TT Base Convertible 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2009 Audi TT Base Coupe 2.0L L4 CCTA Automatic Dual Clutch Engine Piston



TT Quattro Audi MK2


  • 2009 Audi TT Quattro Base Convertible 2.0L L4 CCTA Manual Engine Piston

  • 2009 Audi TT Quattro Base Convertible 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2009 Audi TT Quattro Base Coupe 2.0L L4 CCTA Manual Engine Piston

  • 2009 Audi TT Quattro Base Coupe 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2010 Audi TT Quattro Base Convertible 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2010 Audi TT Quattro Base Coupe 2.0L L4 CCTA Automatic Dual Clutch Engine Piston



A3 Audi 8P


  • 2008 Audi A3 Base Hatchback 2.0L L4 CBFA Manual Engine Piston

  • 2008 Audi A3 Base Hatchback 2.0L L4 CBFA Automatic Dual Clutch Engine Piston

  • 2008 Audi A3 Base Hatchback 2.0L L4 CCTA Manual Engine Piston

  • 2008 Audi A3 Base Hatchback 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2009 Audi A3 Base Hatchback 2.0L L4 CBFA Manual Engine Piston

  • 2009 Audi A3 Base Hatchback 2.0L L4 CBFA Automatic Dual Clutch Engine Piston

  • 2009 Audi A3 Base Hatchback 2.0L L4 CCTA Manual Engine Piston

  • 2009 Audi A3 Base Hatchback 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2010 Audi A3 Base Hatchback 2.0L L4 CBFA Manual Engine Piston

  • 2010 Audi A3 Base Hatchback 2.0L L4 CBFA Automatic Dual Clutch Engine Piston

  • 2010 Audi A3 Base Hatchback 2.0L L4 CCTA Manual Engine Piston

  • 2010 Audi A3 Base Hatchback 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2011 Audi A3 Base Hatchback 2.0L L4 CBFA Automatic Dual Clutch Engine Piston
    Note: For Models To Production Date 05-30-2011
  • 2011 Audi A3 Base Hatchback 2.0L L4 CBFA Manual Engine Piston
    Note: For Models To Production Date 05-30-2011
  • 2011 Audi A3 Base Hatchback 2.0L L4 CCTA Automatic Dual Clutch Engine Piston
    Note: For Models To Production Date 05-30-2011
  • 2011 Audi A3 Base Hatchback 2.0L L4 CCTA Manual Engine Piston
    Note: For Models To Production Date 05-30-2011


A3 Quattro Audi 8P


  • 2009 Audi A3 Quattro Base Hatchback 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2010 Audi A3 Quattro Base Hatchback 2.0L L4 CCTA Automatic Dual Clutch Engine Piston

  • 2011 Audi A3 Quattro Base Hatchback 2.0L L4 CCTA Automatic Dual Clutch Engine Piston
    Note: For Models To Production Date 05-30-2011
