VMP Heat Exchanger for 3/4" lines for '05-24 Mustang

VMP-SHE134NF

**New design - now same dimensions at VMP Triple Pass**

• 3/4" inlet/outlet
• Fits '05-24 Mustang
• Fits '03-04 Cobra with MAF racing bumper support
• Fits ‘11-14 F-150 with VMP brackets VMP-ACP020 (’15+ F-150 we recommend new VMP HE available Feb-Mar '24)
• Core area measures 24" wide x 14" tall x 1 1/2" thick
• For measurement including end-tanks add 4" to width (brackets not included), add 1/2" to thickness and height
• Made in the USA
• All aluminium construction TIG-welded
• Bolt-on installation

Need extra cooling power for your Mustang or F-150? The VMP Heat Exchanger is made in the USA of 100% aluminum.

Light weight, and durable, the VMP Heat Exchanger is completely TIG welded on all headers, tanks, and fittings for strength and leak proofing.

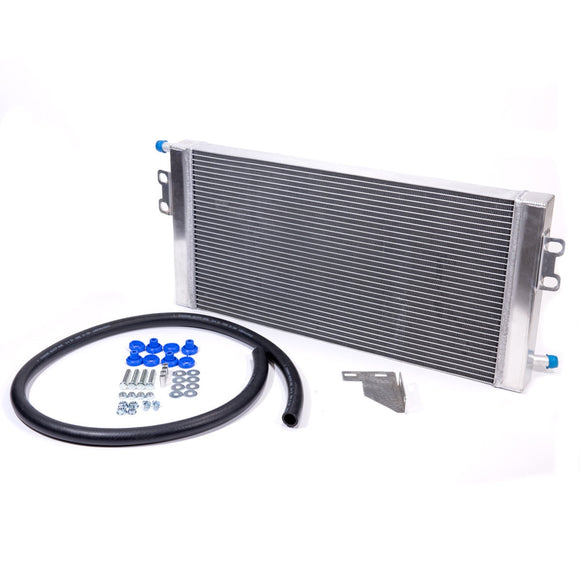

Includes (1) VMP Single-Pass Heat Exchanger, hose, mounting hardware, and (1) Z-bracket
