VMP-SUP023

ODIN 8-RIB "FULL-FEAD" KIT WITH AC 10% OD

This "Full-FEAD" kit is designed for customers that currently have nothing OR want the latest and greatest belt drive parts. All Odin/Loki belt system components and hardware are included with this kit, perfect for customers starting with a used kit or a Stage 3 head unit.

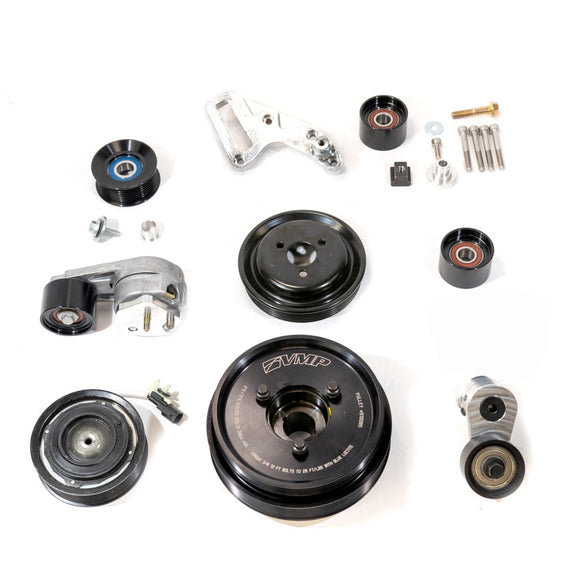

Includes:

• Odin/G3R HD Tensioner VMP-SUT009
• Super Low Profile Accessory Belt Tensioner VMP-SUT005
• ATI/VMP 10% OD balancer (new version VMP-918075)
• 8-rib AC Clutch Pulley KR3Z-19V649-A
• 3-bolt Water Pump Pulley with back lip removed VMP-SUP076
• Ribbed idler and spacer for front cover VMP-76-8-20-RB & VMP-FSPC-20-8-10RB
• VMP 60 mm double row idler pulley VMP-60-SM-DB
• 4-rib accessory belt
• Pulley bolts VMP-SUA017
• All necessary hardware


**This kit does NOT include an 8-Rib Supercharger Pulley.

VMP now makes 8-rib superchargers pulleys specific to the Odin/Predator platform, they do not use a hub spacer like the 6-rib pulley. These pulleys have a -F at the end for "front-feed" style supercharger.

Currently available sizes / Boost psi with 10% lower

Griptec:
VMP-24-8-F-GR / 24 psi
VMP-25-8-F-GR / 23 psi
VMP-26-8-F-GR / 22 psi
VMP-27-8-F-GR / 21 psi

Standard:
VMP-26-8-F / 21-22 psi
VMP-27-8-F / 20-21 psi
VMP-28-8-F / 19-20 psi
VMP-30-8-F / 17-18 psi
VMP-32-8-F / 15-16 psi
VMP-34-8-F / 13-14 psi
VMP-36-8-F / 11-12 psi

*Stage 3 ported blowers will make 2 psi over standard Stage 2.  Stage 3 porting is required to make over 24 psi

*The balancer converts to a 4-rib accessory belt (included, for replacements use stock 2020 GT500 Ford KR3Z-8620-B / JK4682 / Bando 4PK1715).  Install belt on front 4-ribs of water pump and alternator pulley.

*Supercharger belt not included

*All parts may be purchased individually using the above PNs
