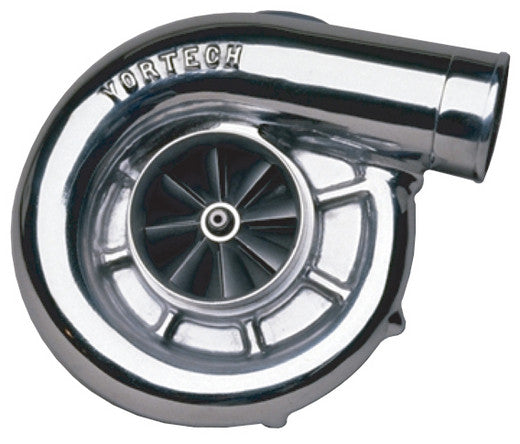

Vortech V-1 Ti-Trim. Straight Discharge. Heavy Duty. CCW Rotation. Polished Finish

Vortech V-1 Ti-Trim. Straight Discharge. Heavy Duty. CCW Rotation. Polished Finish

$5,544.87 CAD

Vortech SKU: VOR2A139-128

Earn [points_amount] when you buy this item.

Description Availability

VOR2A139-128

Product Summary

The supercharger of choice for street/strip vehicles with modified engines. Fits engines up to 825 horsepower. Available with straight or curved discharge and clockwise or counterclockwise rotation.

Performance Specs

Internal Step-Up Ratio: 3.45:1
Max Speed: 55,000 RPM
Max Boost: 26 PSI
Max Flow: 1,400 CFM
Max Power: 950 HP
Peak Efficiency: 75%

Performance specs apply to units equipped with heavy duty gearcase.

Dimensions

Discharge OD: 2.75"
Inlet OD: 3.75"
Discharge ID: 2.38"
Inducer Diameter: 3.51"

The supercharger of choice for street/strip vehicles with modified engines

  • Straight cut spur gear
  • Available with straight or curved discharge and clockwise or counterclockwise rotation
  • Part numbers below do not include drive pulley
  • 8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks. This means the product is special ordered.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
