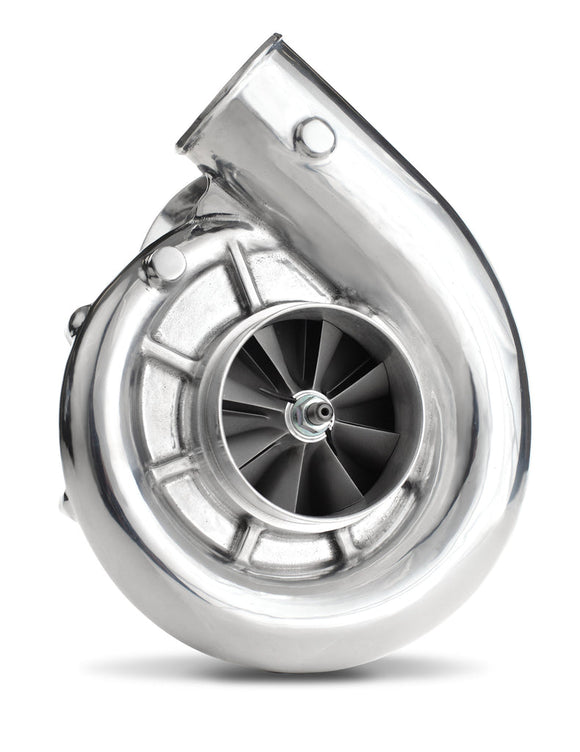

Vortech V-2 SCi-Trim. Straight Discharge. CW Rotation. Polished Finish

Vortech V-2 SCi-Trim. Straight Discharge. CW Rotation. Polished Finish

$4,367.26 CAD

Vortech SKU: VOR2E128-308

Earn [points_amount] when you buy this item.

Description Availability

VOR2E128-308

Product Summary

The V-2 SQ model, with its highly advanced computer designed gears feature an optimized helical profile which allows for quieter operation while providing superior performance. All V-2 SQ units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for our V-1 units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The V-2 SCi-Trim Supercharger is capable of up to 725HP on modified vehicles. Superior 75% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines.

Performance Specs

Internal Step-Up Ratio: 3.61:1
Max Speed: 53,000 RPM
Max Boost: 17 PSI
Max Flow: 1,050 CFM
Max Power: 725 HP
Peak Efficiency: 75%

Performance specs apply to units equipped with standard gearcase.

Dimensions

Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1"
  • Helical cut gear profile with SQ technology
  • Near silent operation
  • Available with straight or curved discharge

Part numbers below do not include drive pulley

8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)

  • Ideal for latest generation of improved breathing, high-power street and strip engines
  • Vastly improved flow and efficiency at high boost levels, providing completely new levels of power gain
  • Helical gear design with 3.6:1 step-up
  • The V-3 supercharger can be installed into any existing Vortech V-1, V-2, V-4 or V-7 bracketry
  • Includes remote fluid drain hose (attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicle
  • A ventilated gear case assembly eliminates any potential internal pressure issues that are currently associated with non-vented competitive designs
  • Integrated gear case baffling for proper oil control
  • Simple oil slinger design does not require separate shaft or bearing set. This provides proper fluid delivery to gears and bearings
  • Superchargers are factory pre-filled with our special synthetic fluid.
  • Integrated dipstick for simple fluid checks
  • Superchargers exceeding 6 PSI require a Vortech Standard Bypass Valve or a Vortech Maxflow Race Bypass/Blowoff Valve.
  • Superchargers exceeding 10 PSI require a higher capacity valve, such as a Vortech Maxflow Race Bypass/Blowoff Valve, Vortech Mondo Bypass Valve, or Vortech BV57 Valve.

    •
