VOR4NZ218-030LComplete System
Complete, fully calibrated supercharger systems are available for the Infiniti G35, featuring the V-3 SCi-Trim internally lubricated, centrifugal supercharger with air-to-air charge cooler.
The complete system will boost your stock G35 to 404HP (440 HP on the Rev-Up) with 7.5-8.5 PSI from the V-2 or V-3 SCi-Trim supercharger at the factory redline.
The G35 system uses Vortech's V-2 or V-3 SCi supercharger. Continued development in Vortech's Lab resulted in the SCi-Trim. The "i" stands for improved and with its new patented oil control system and state of the art centrifugal compressor stage this SCi-Trim literally blows away the competition. Industry leading 75% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, reduced drive power and more net power is produced. Less heat also means better durability, easier on the engine than any turbo installation.
Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage usually increases.

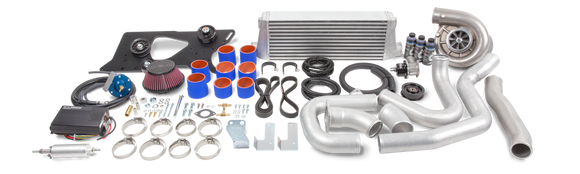

Complete System Included Components and Features
- Vortech gear driven supercharger with technologically advanced, high-efficiency impeller and housing design developed in Vortech's supercharger test cell
- Fuel management upgrade includes a high-flow fuel pump and fuel management unit (FMU)
- Stand-alone ignition timing control computer provides for seamless acceleration
- Integrated charge cooler configuration allows for higher horsepower gains
- Discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps
- Reusable air filter features a high-flow design
- Billet aluminum mounting bracket for "factory-type" appearance and rigidity
- Maxflow Racing Bypass Valve provides surge-free compressor operation
- Supercharger drive system includes all necessary belts and pulleys
Available Supercharger Finishes
G35 systems are available in Satin or Polished finish, to fit your preferred system appearance goals.
Installation
Installation time is rated at 10-12 hours.
INSTALLATION MANUAL
Optional & Replacement Parts/AccessoriesSupercharger Pulleys
20mm S/C Pulleys: 34 Tooth, 32 Tooth, 30 Tooth, 28 Tooth
20mm Jackshaft Pulleys: 34 Tooth, 32 Tooth
6-Rib pulleys: 2A036-312, 2A036-287, 2A036-262 (Pulley surfaces may need to be machined for proper clearance on smaller sizes)
Hardware & Spacer Kits
Hardware Kits: 4NZ100-001 for standard engine; 4NZ100-002 for Rev-Up. These kits include spare/replacement bolts and other hardware for supercharger mounting. Spacers not included.
Spacer Kit: Includes mounting spacers for both standard and Rev-Up engine bracket setups. Hardware sold separately.
Maxflow Billet Race Blow-Off Valve
Maxflow Race BOV - For those looking for a louder "blowoff" sound between shifts, this valve is a direct replacement for the Maxflow Race Bypass Valve included in the 350Z Systems.
CARB Compliance
Complete systems are 50-State Emissions Legal per California Air Resources Board (CARB) Executive Order # D-213-22 (2003-2004) and D-213-27 (2005-2006).
Warranty Information
3-Year Supercharger Limited Warranty - Available with V-3 superchargers (if purchased as part of a complete street-legal system) for an additional $50.00.
Note: Tuner kits are only eligible for a 1-Year Warranty. More information (PDF).
1-Year Supercharger Limited Warranty - Included with all superchargers except race/heavy-duty models.
