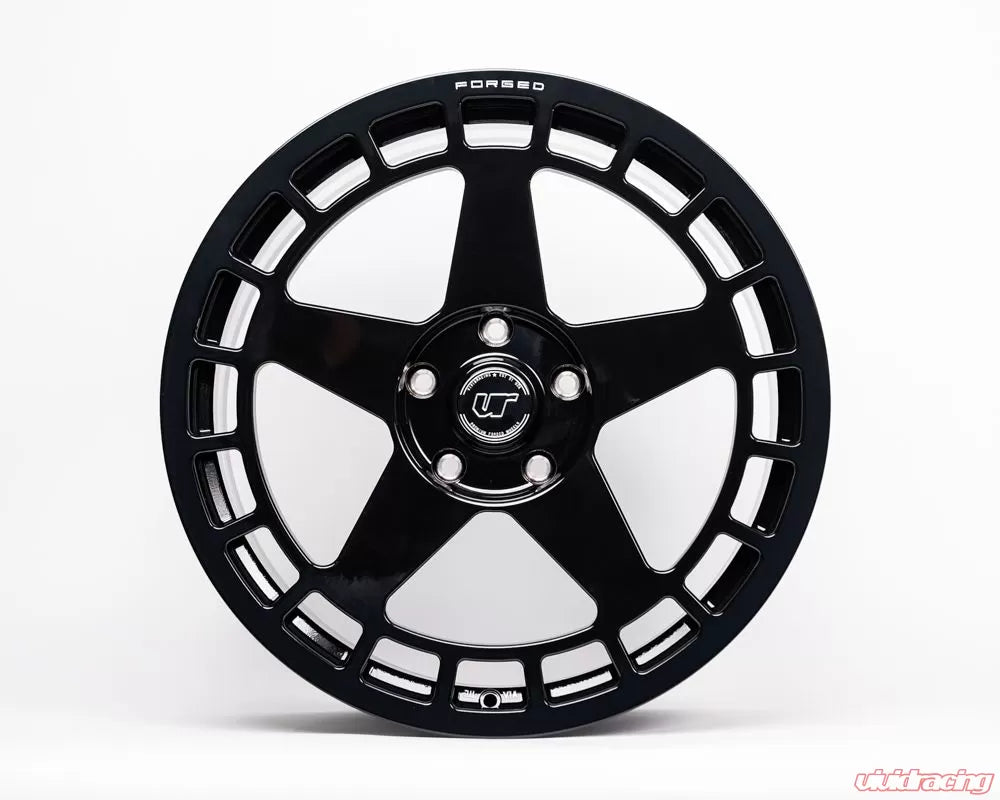

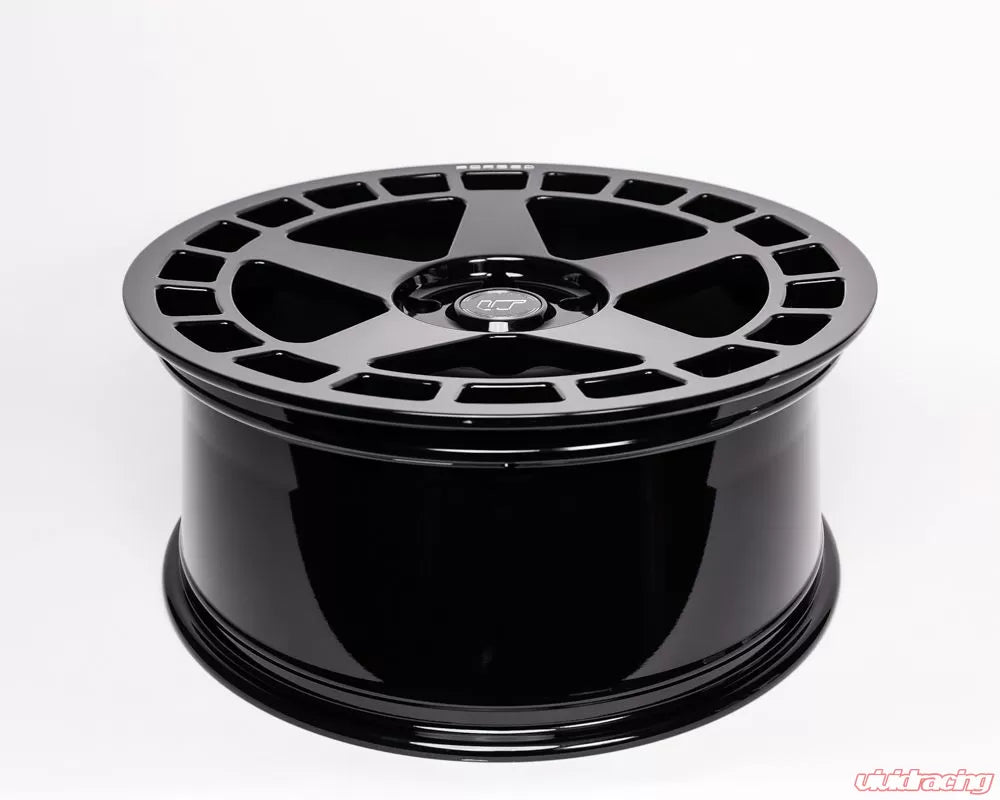

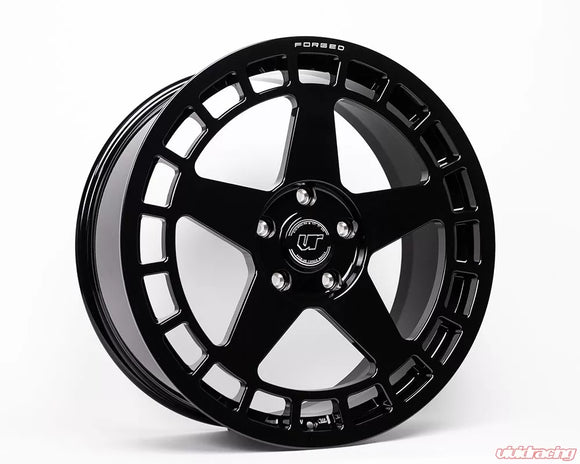

VR Forged D12-R Wheel Gloss Black 22x9.5 +48mm 5x139.7

VR-D12R-2295-48-51397-GBLK

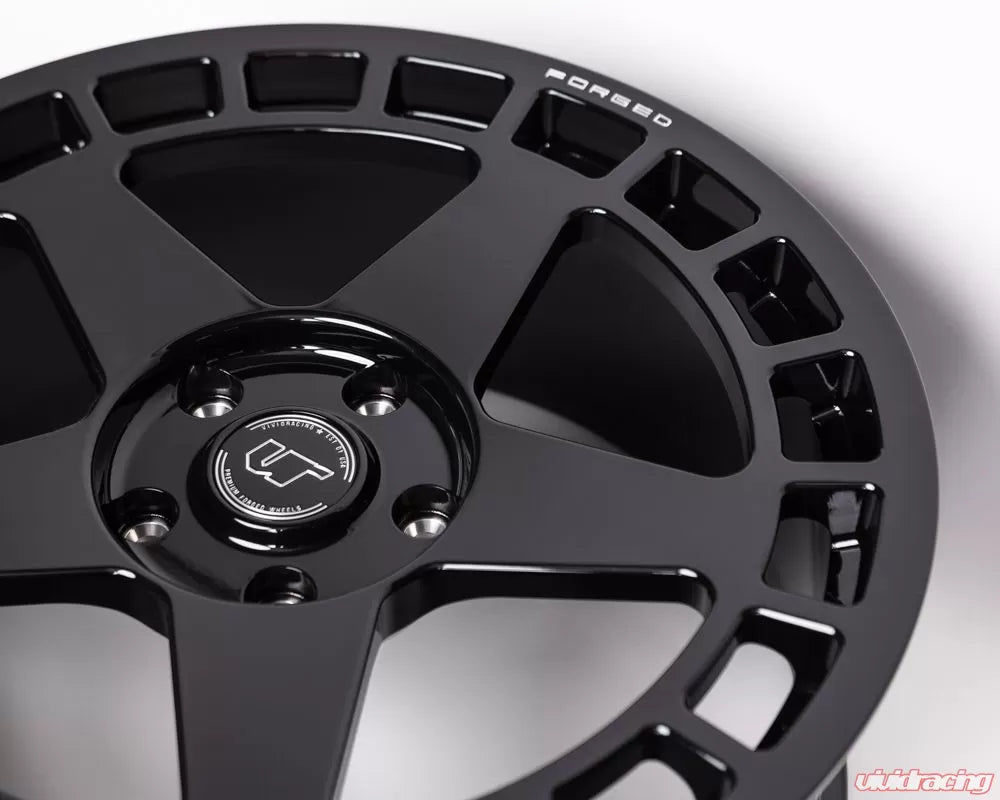

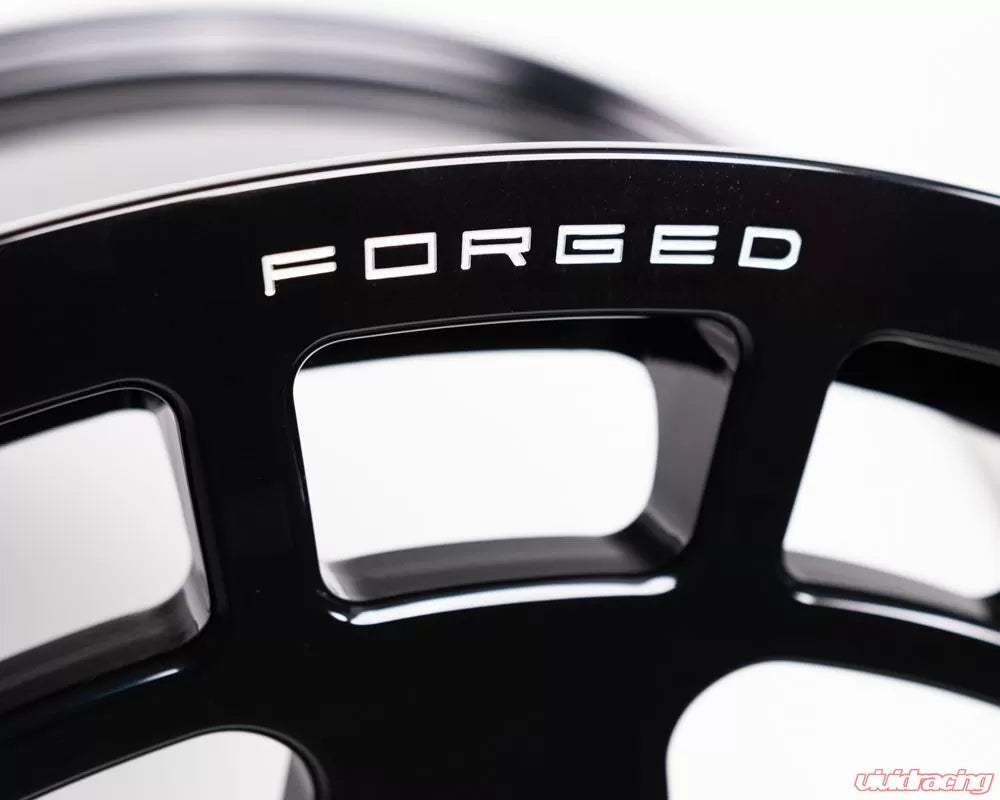

The VR Forged D12-R is a full 1pc forged monoblock wheel. The design of this wheel is a play on our D12 with the very Euro style ring around the outside edge. Manufactured using a 10,000 ton press, these wheels are incredibly strong. This wheel is perfectly matched in styling and function to the Rivian.

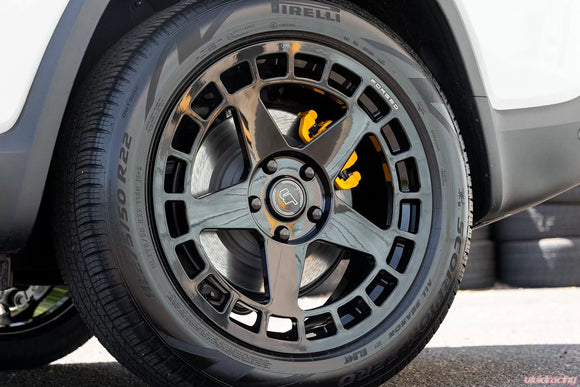

The biggest benefit of these new VR Forged wheels is the weight savings. This is a key important factor in EV wheels. There are 2 ways to look at wheel weight. The first is what the “dead” weight is and then what the “rotational” weight is. Rotational weight is the focus point as it has a factor of 3. The harder something is to spin, the more energy it requires. The VR Forged D12-R weighed in at 35lbs compare to the stock wheel of 45lbs. That 10lbs of dead weight is actually saving you 30 lbs PER CORNER of rotational weight. Weighing each wheel with OEM tire mounted gave us some impression results as well. The OEM wheel with Pirelli tire weighed in at 80lbs compared to the VR Forged wheel with the same OEM tire just dismounted weighed in at 72lbs saving 8lbs per corner 24lbs of rotational weight.

Information:

• All VR Forged wheels include center caps.
• They are designed to work with most OEM TPMS sensors.
• Some wheels may require aftermarket lug nuts or bolts.
• Weights are estimated from engineering and scale tests.
• Wheels are designed to work with OEM brakes and most big brake kits.  Please provide BBK template if you have questions on fitment.

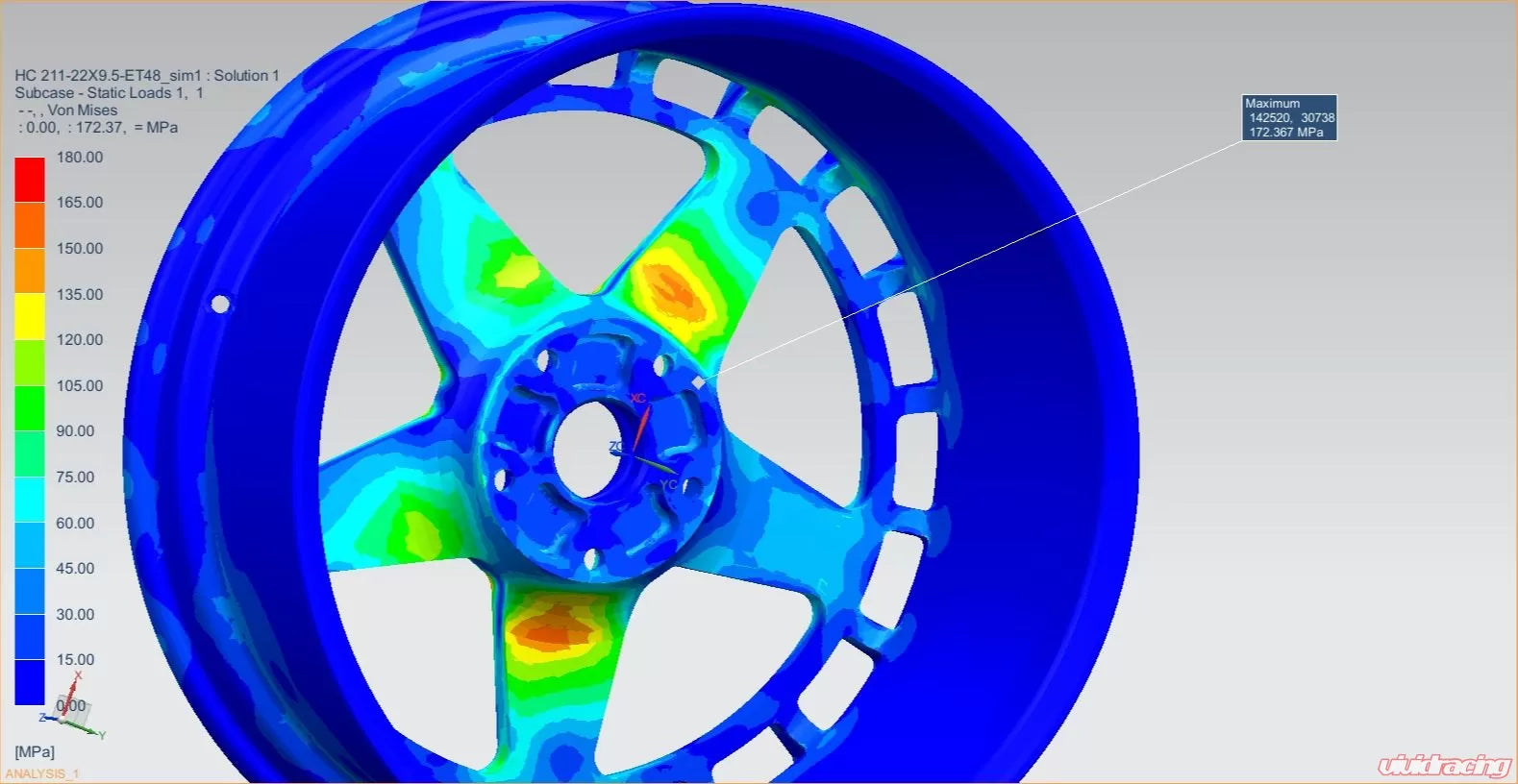

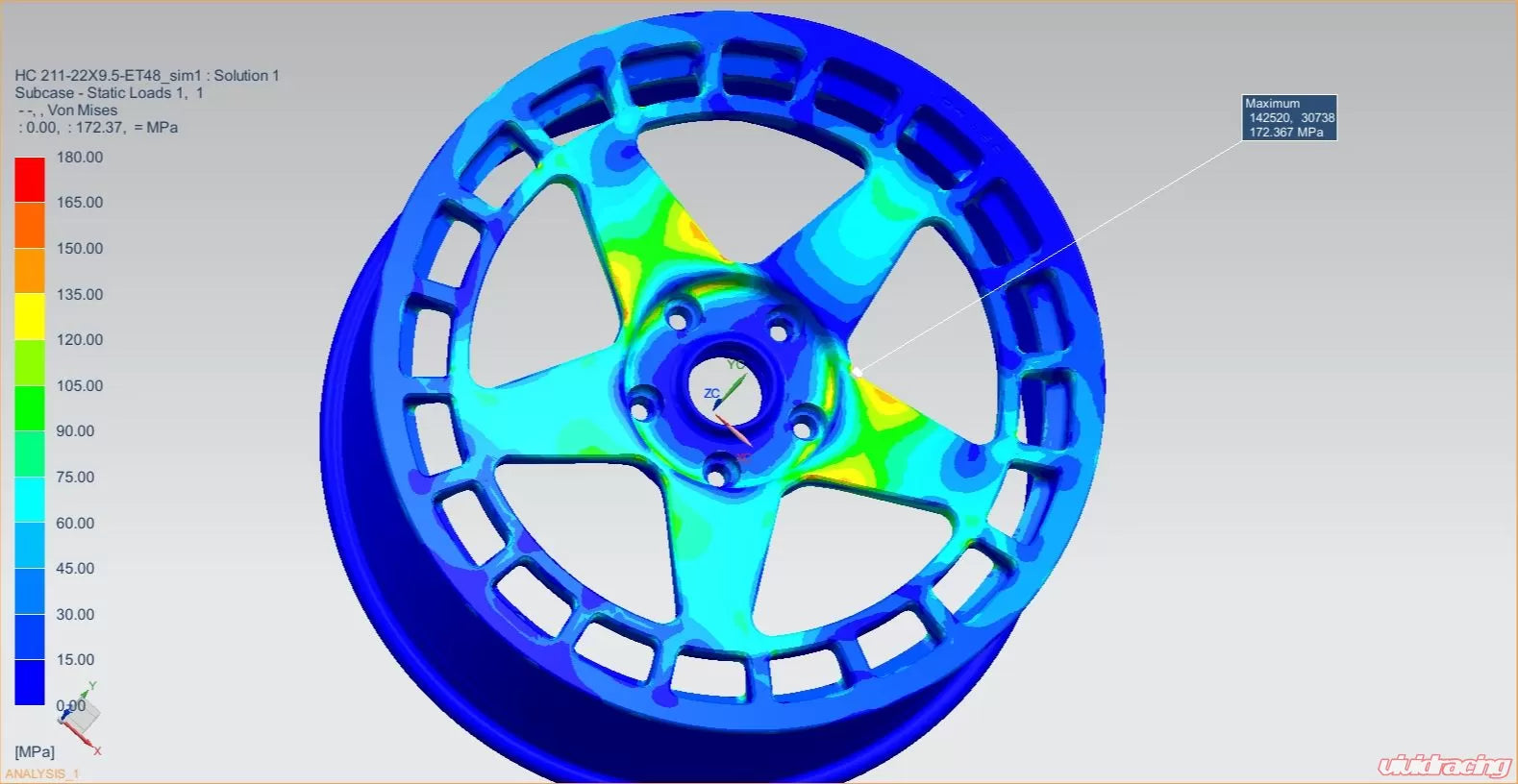

• All wheels go through extensive testing to meet proper regulations. View Manufacturing Details Here.

Front and Rear Wheel Specs:

• Diameter: 22x9.5
• Offset: 48mm
• Bolt Pattern: 5x139.7
• Center Bore: 64.1
• Wheel Finish: Gloss Black
• Wheel Weight (lbs): 35
• Load Rating (lbs): 2750
• Lug Style: Conical
• Recommended Tire Size: OEM

Fitment:

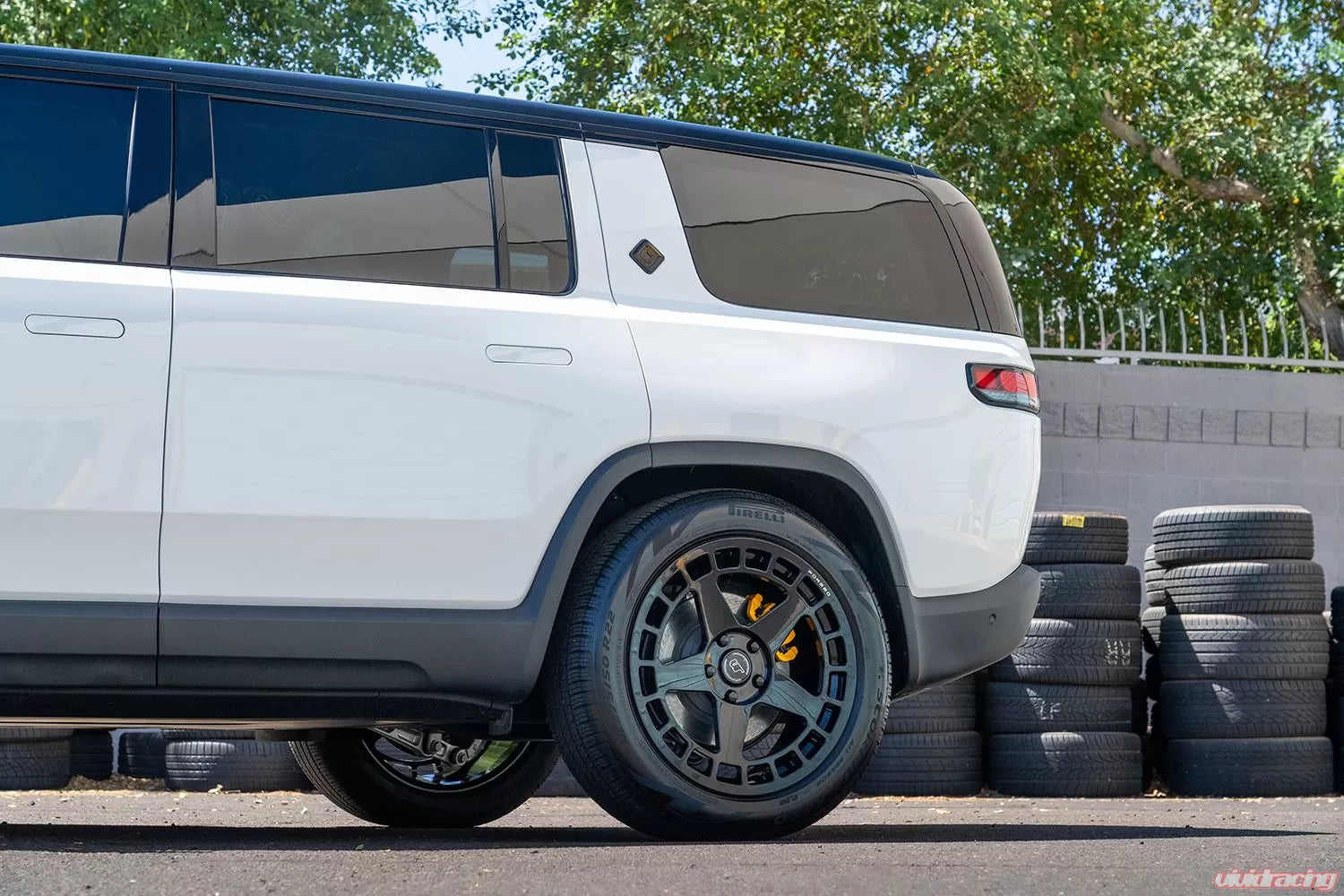

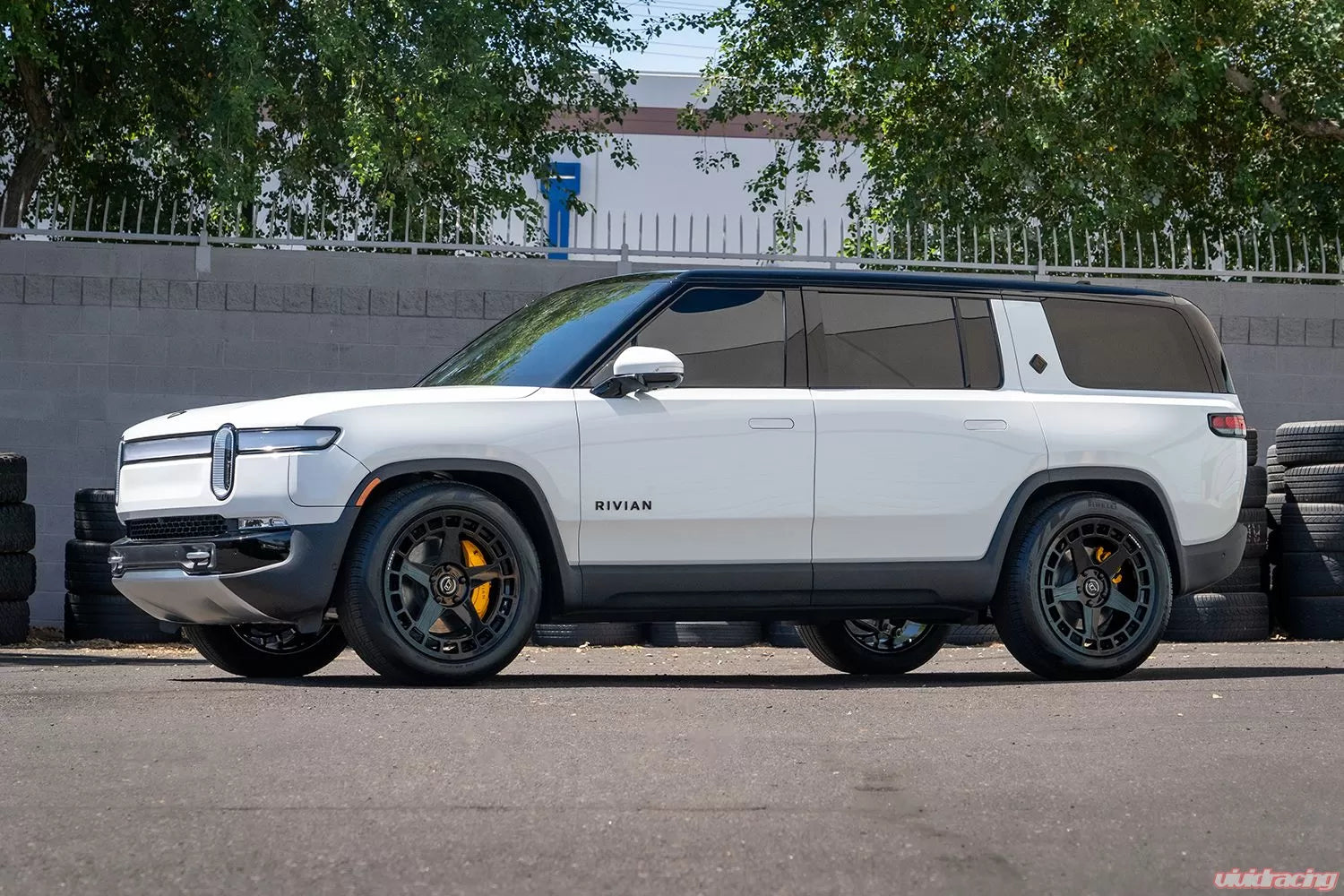

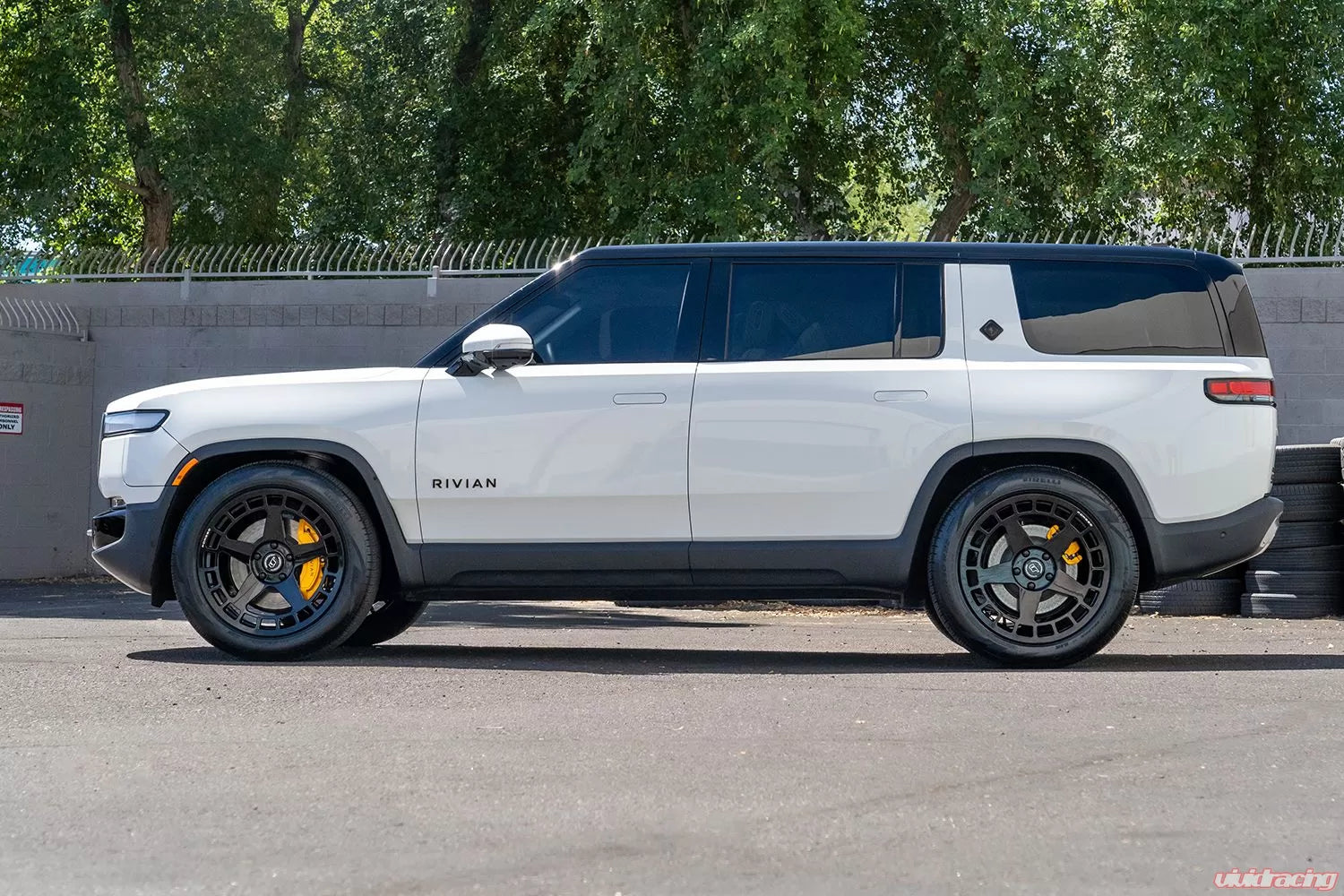

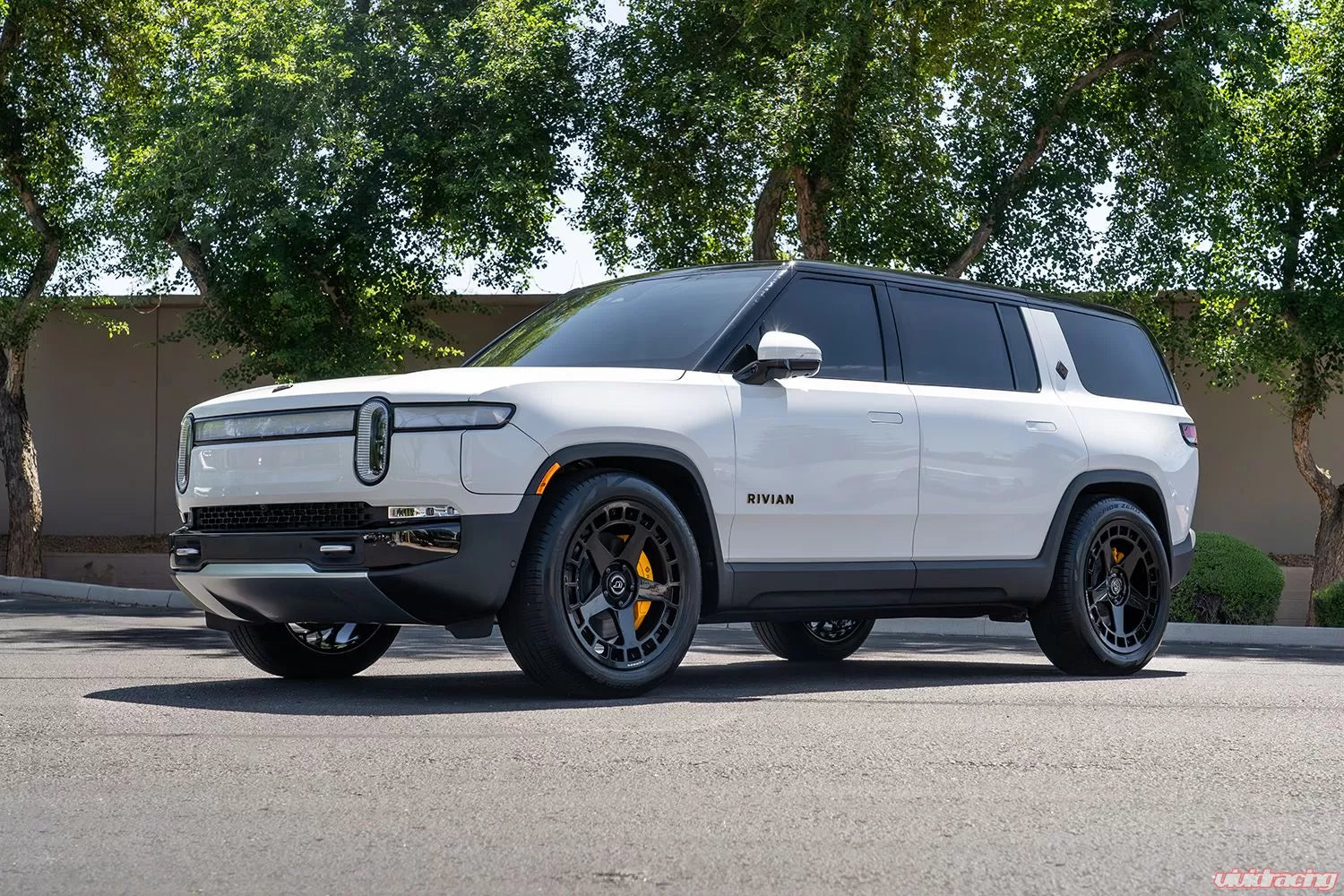

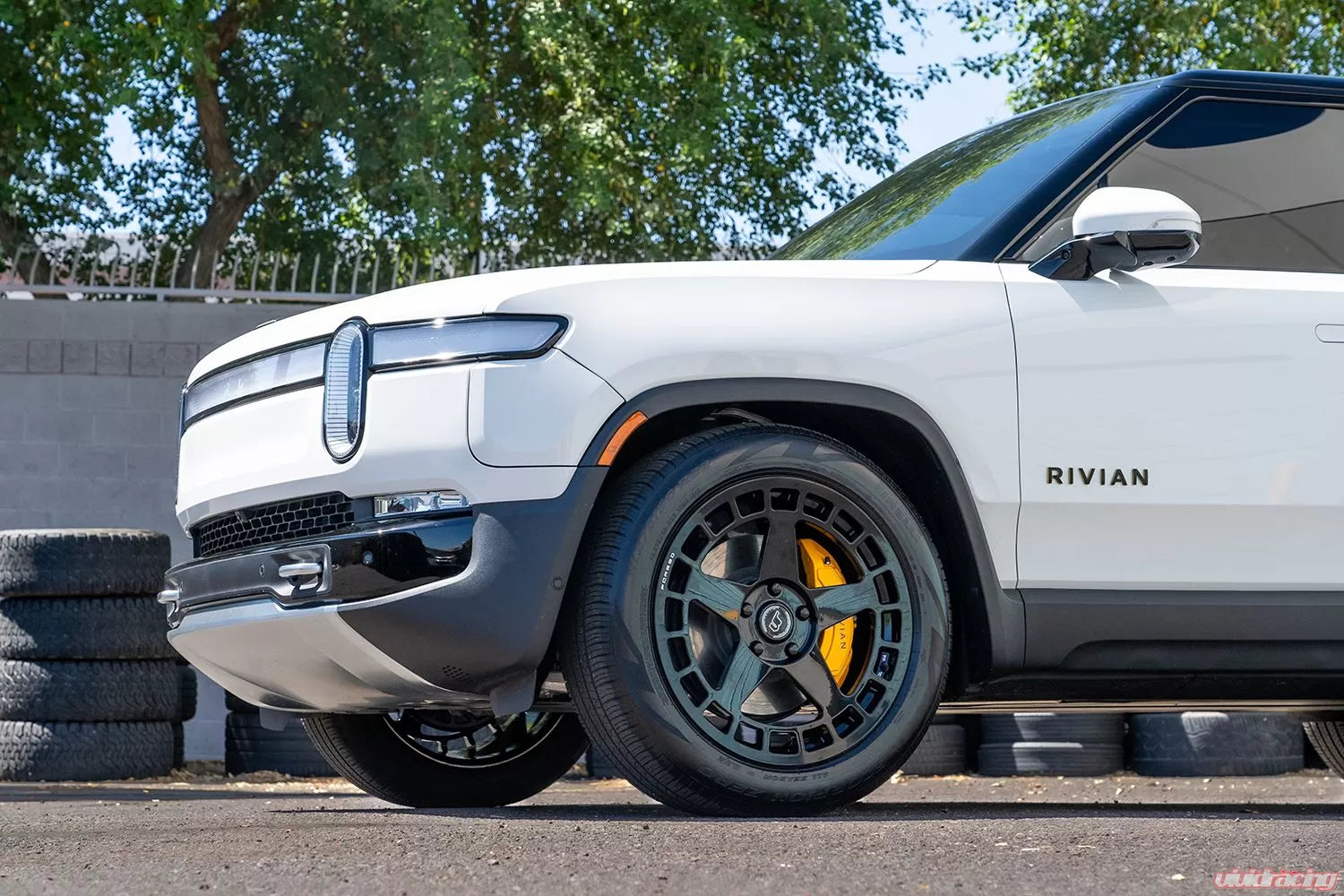

• Rivian R1S or Rivian R1T
