VTT Billet Large Capacity BMW ZF8HP Transmission Pan

VTT-ZF8HP-PAN

Description

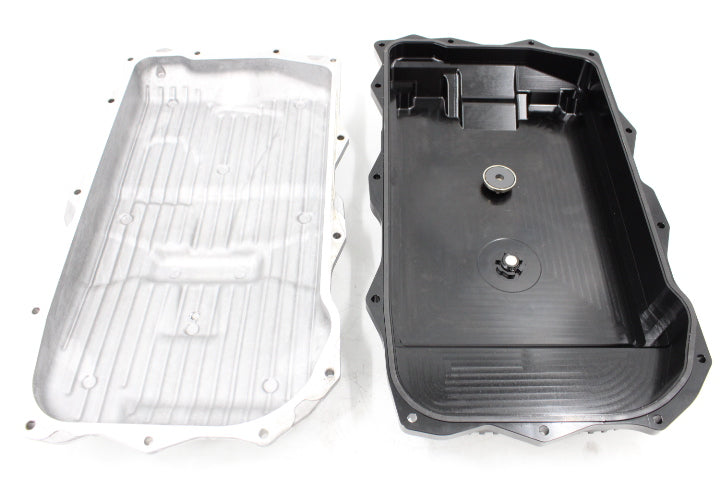

VTT is Proud to offer our Billet Aluminum ZF8H 8-speed Transmission pan. This pan does away with the factory plastic or cast aluminum pan and upgrades it to 6061-T6 aluminum anodized in a variety of colors. This pan increases fluid capacity to 5.7 QTs compared to the stock pan which holds 3.7 QTs, has a US-made reusable Viton Gasket, a rare earth magnet that sits under the filter to not only support it, but pulls metal from the fluid, machined external fins to help aid in cooling, and a -6 ORB magnetic drain plug.

Clearance is NOT increased on G8X, X3/4M, or F90 M5, if used on smaller model ZF8H with the plastic pan, the pan DOES fit but has reduced clearance.

Product Features:

• Billet construction  using 6061-T6 aluminum for long life, and added strength
• Add a full 2 QTs fluid capacity at 5450ML (5.7QTs) compared to 3500ML (3.7QTs)

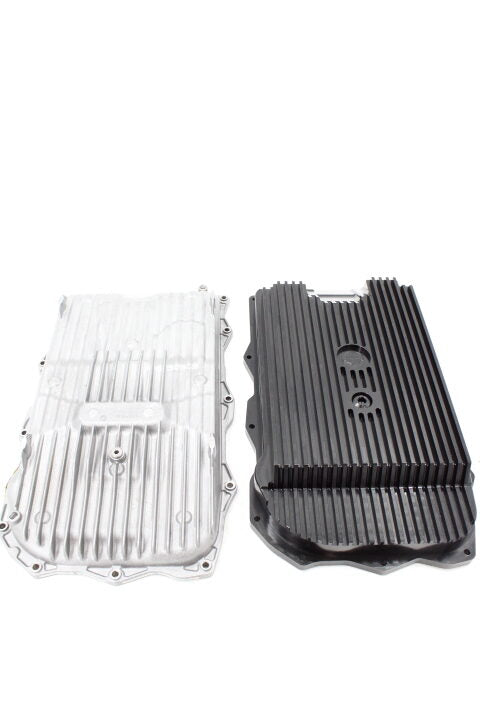

• Machined fins for improved cooling
• Rare Erath magnet built in to pull metal from the fluid
• US-Made Viton Gasket
• -6 ORB magnetic drain plug for easy service

Fitment:

G8X M3/4

F9X X3/4M

F9X M5

F9X M8

A9X Supra

G3X

G2X
