Wagner Tuning 2003+ BMW 3-Series E46 318d/320d/330d Competition Intercooler Kit

200001150

THIS ITEM CAN ONLY BE USED IN A COMPETITION RACING VEHICLE THAT IS NOT DRIVEN ON PUBLIC ROADS, UNDER CALIFORNIA STATE LAW IT IS NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE!

COMPETITION INTERCOOLER KIT for BMW E46:

BMW E46 318d (85kw/116PS) 2001-2005
BMW E46 320d/Cd/td (100-110KW/136-150PS) 1998-2006
BMW E46 330d/Cd/xd (135-150KW/184-204PS) 1999-2006

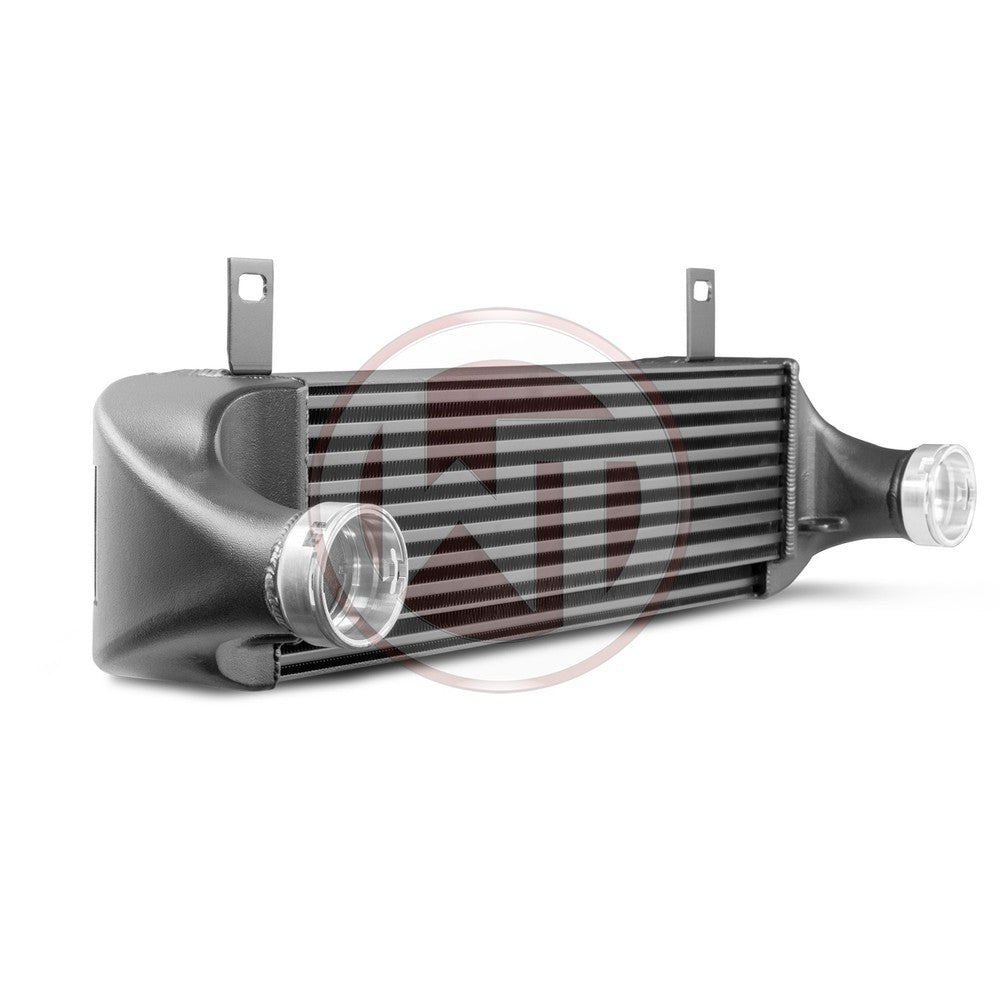

The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 550 mm x 168 [139] mm x 120 [100] mm [stepped] / 21,6 Inch x 6,6 [5,5] Inch x 4,7 [3,9] Inch [stepped], which was developed especially for the requirements of the BMW E46 diesel engines. This high-performance core offers an 31 % larger frontal surface and 205 % more core volume compared to the stock intercooler.

The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

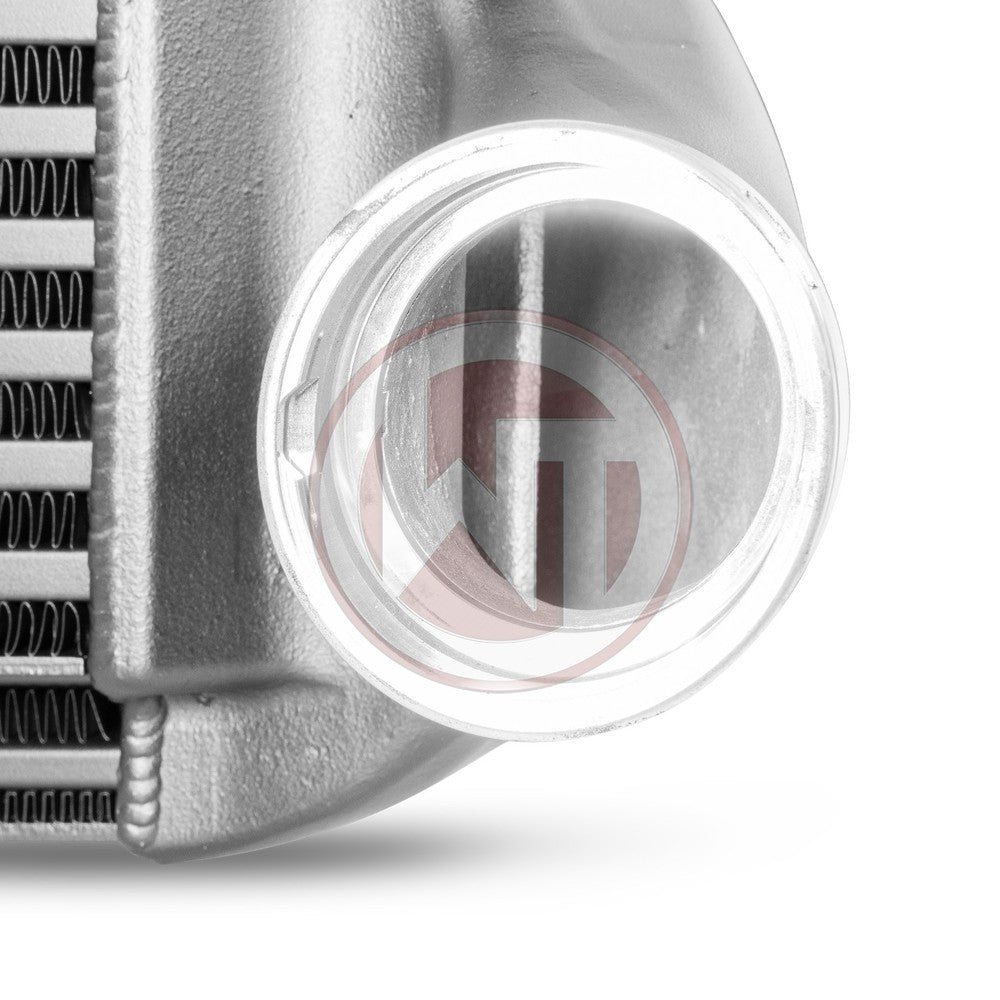

Inlet diameter: Ø63 mm/2,5 Inch (stock click-connection) ; Outlet diameter Ø63 mm/2,5 Inch (stock click-connection)

Dimensions stock intercooler:
540 mm x 130 mm x 50 mm / 21,3 Inch x 5,1 Inch x 2 Inch
V = 3,51 L / 214,2 Inch³
A = 702 cm² / 108,8 Inch²

Dimensions WAGNERTUNING intercooler:
550 mm x 168 [139] mm x 120 [100] mm [stepped] / 21,6 Inch x 6,6 [5,5] Inch x 4,7 [3,9] Inch [stepped]
V = 10,7L / 653 Inch³
A = 919 cm² / 142,5 Inch²

kit comes with:
1 intercooler
1 mounting material
1 installation instruction
