TTMW10-2-KA
The Weigh Safe True Tow Middleweight Weight Distribution hitch is the best in the world!
With our patented technology and companion app, you'll never have to guess if you have your hitch correctly set up and your trailer properly loaded. Instead of spending time crawling around with a tape meausre, spend more time exploring the great outdoors.
The Middleweight comes in 4", 6", 8", and 10" drop lengths for a 2" or 2.5” receiver size. You can choose between spring arms for trailers up to 8,500 lbs or 12,500 lbs.
*Ships in 1-2 weeks*
2″ Shaft – Up to 8,500 lbs
What Size Hitch Should I Buy? Click here.
The Weigh Safe True Tow Line of Weight Distribution Products are the only ones in the world that completely take the guess work out of proper weight distribution. With our guage you're be able to measure both your trailers tongue weight and know exactly how much weight you need to redistribute from the tongue
To make achieving proper weight distribution even easier we provide a companion phone app. Simply answer a few questions and the app will tell you exactly how to adjust the hitch's live adjustment screww to achieve proper weight distribution.
The True Tow Middleweight is made of high-strength steel and strong enough to tow any small or medium sized trailer. Depending on the installed spring arm, the Middleweight is rated for either 8,500 lbs or 12,500 lbsKEYED ALIKE
You can order your hitch Keyed Alike - which comes with a hitch locking pin or with a lock set that includes the hitch locking pin, a coupler latch lock, and a pad lock.
Both options are keyed to match your Dual Pin Slider Lock - so you only need one key for all of your locks!
| DROP LENGTHS | 4", 6", 8" OR 10" DROP LENGTHS |
|---|---|
| Built-in Scale | ✓ |
| Shaft | 2" or 2.5" |
| Tow Ball | 2-5/16" Tow Ball Included - Not Interchangeable |
| Max GTW |
8,500lbs 12,500lbs (based off of spring arm size) |
| Max Tongue Weight |
850lbs (8,500lb spring arm) 1,250lbs (12,500lb spring arm) 1,250lbs (w/o spring arms) |
| V5 & J684 Certified | ✓ |
| Drop Hitch Adjustment | 1.25" Increments |
| Weight (2" and 2.5" Shank) | 4" drop with 2" shank = 108lbs 4" drop with 2.5" shank = 113lbs 6" drop with 2" shank = 110lbs 6" drop with 2.5" shank = 115lbs 8" drop with 2" shank = 111lbs 8" drop with 2.5" shank = 116lbs 10" drop with 2" shank. = 113lbs 10" drop with 2.5" shank = 118lbs |
| Ball Material | Stainless Steel |
| Rise | All hitches may be used in rise position |

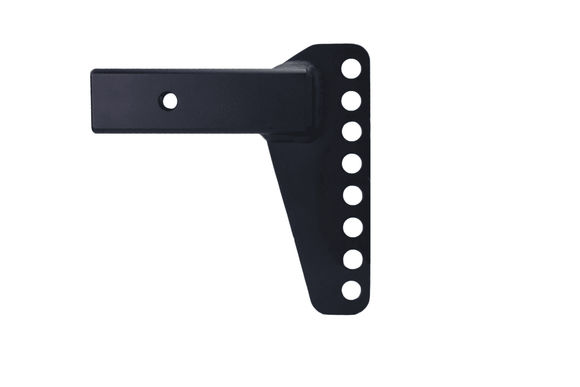

| Drawbar Length | 4" drop = 7" 6" drop = 9" 8" drop = 11" 10" drop = 13" |
| Hitch Pin Hole | 5/8" Diameter |
| Trailer Compatibility |
Max Trailer Frame Height: 6 inches. *Note* If you have a larger frame we offer an 8" accessory bracket. Due to the length of the hitch some trailers may require their chains and breakaway cable to be extended and or remounted. Some sleeve locking couplers will not work with this hitch due to the spacing between the towball and the Lead Screw. Please see the dimension guide to make sure your coupler will fit. |
Along with the original Heavyweight version, the all new Weigh Safe True Tow Weight Distribution Hitch – Middleweight is a part of the True Tow family, measuring vehicular tongue weight and providing exact measurement and force needed to accurately redistribute weight across your towing platform. It also boasts the simplest and quickest installation process in the industry and comes in various drop lengths to fit any and all trailers! Check out our DTW Calculator
A built-in scale to measure both tongue weight to ensure 10-15% of GTW and distributed tongue weight to truly give you a distributed towing system.

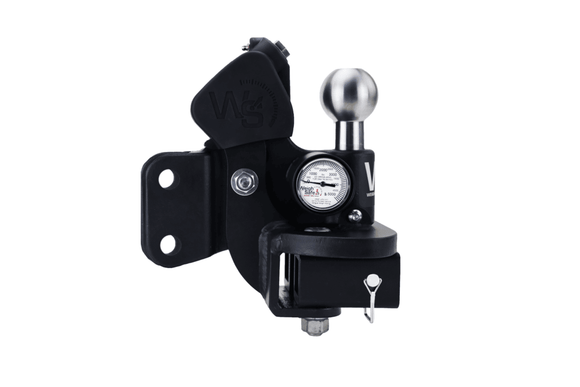

A live adjustment system built into the head assembly with an internal pivot point for quicker and easier installation. With the ability for anytime adjustment, this feature will save you a significant amount of time.
Easy height adjustment with 1.25” hole increments for more accurate height adjustment which means no more torquing bolts!
DTW (Distributed Tongue Weight) tool application for smartphones (android and IOS) or available on our website to set up the highly accurate distributed system. This tool outputs a DTW that the Weigh Safe gauge on the hitch will read when distributed correctly.
Truly distributes the tongue weight of the trailer between the back axle of the tow vehicle, and the axle(s) of the trailer and returns the lost weight off the front axle. This provides a safer and smoother ride.
Provides anti-sway friction areas that help reduce sway caused by wind or passing vehicles. These areas reside in the sway bar connection points in the head assembly and the trailer bracket connection points. The hitch head assembly, spring arms and trailer brackets are all vital components to aid in reducing trailer sway.
The True Tow™ Weight Distribution Hitch – Middleweight can be easily interchanged between different tow vehicles and trailers so you can put trailer brackets on as many trailers as you want!
