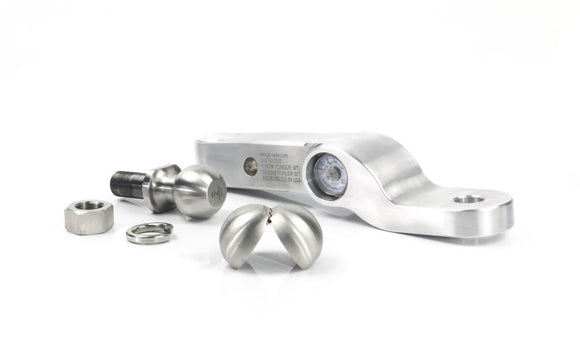

Weigh Safe Tongue Weighing 2in Drop Fixed Height Ball Mount w/2in Tow Ball (STB01) & WS07

WSFH2-2-07

The Weigh Safe Fixed Height Ball Mount measures tongue weight, similar to the award winning Weigh Safe Adjustable Ball Mount. The Weigh Safe Fixed Height Ball Mount is designed to function with all standard 2” receivers (as well as the 2. 5” and 3” hitch receivers with sleeve inserts/ receiver reducers installed) . The Fixed Height ball mount boasts an industry leading maximum gross trailer weight (GTW) of 10, 000 pounds along with a maximum tongue weight of 1, 500 pounds, and is constructed with solid bar aircraft grade aluminum alloy.

Please note: The gauge will only work in the drop position. Can be used to tow in both the rise and drop position.

How Tongue Weight Affects Your Vehicle

The tongue weight is the static force the trailer tongue exerts on the hitch/tow ball. Proper trailer tongue weight improves the vehicle and trailer towing experience by improving performance. Not enough tongue weight or force on the hitch/tow ball causes an increase in trailer sway from side to side, making it difficult to control. Conversely, too much tongue weight or force on the hitch/tow ball could overload the rear tires of the towing vehicle, pushing the rear end of the vehicle around. This could also negatively affect the vehicle handling. Performance is impaired as you might not be able to go around corners and curves properly, and your vehicle may not stop quickly enough when you press the brake pedal.

The Weigh Safe Drop Hitch effectively measures the tongue weight of your towing load, improving the vehicle tow load balance and performance.

• The tongue weight scale built into the ball mount platform helps you balance your trailer
  • Promotes safe towing – lets you know if your load needs to be adjusted before you tow
  • Simple operation – automatically provides a measurement every time you couple your trailer
  • Efficient and hassle-free – eliminates the need for separate or commercial scales
• 6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
  • Solid block construction provides greater strength than hollow steel competitors while also maintaining a light weight
  • Rustproof for a clean finish that stands the test of time

• FEATURES	2″ DROP HITCH
  Built-in Scale	✓
  Shaft	2″ (2.5″ & 3″ hitch receivers with sleeve inserts/receiver reducers installed)
  Ball	2″ tow ball NOT included
  Max GTW	10,000 lbs
  Max Tongue	1,500 lbs
  V5 & J684 certified	✓
  Weight	6 lbs
  Hitch Pin Hole	5/8″ Diameter
  Rise	May be used in rise position (The gauge only works in DROP position)
  Saves Property	✓
  Saves Time	✓
