140-16808-D

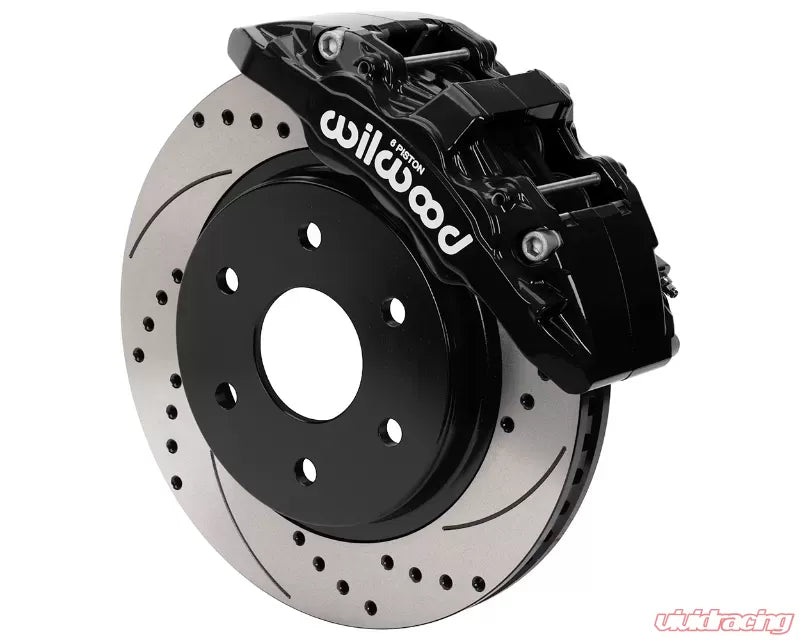

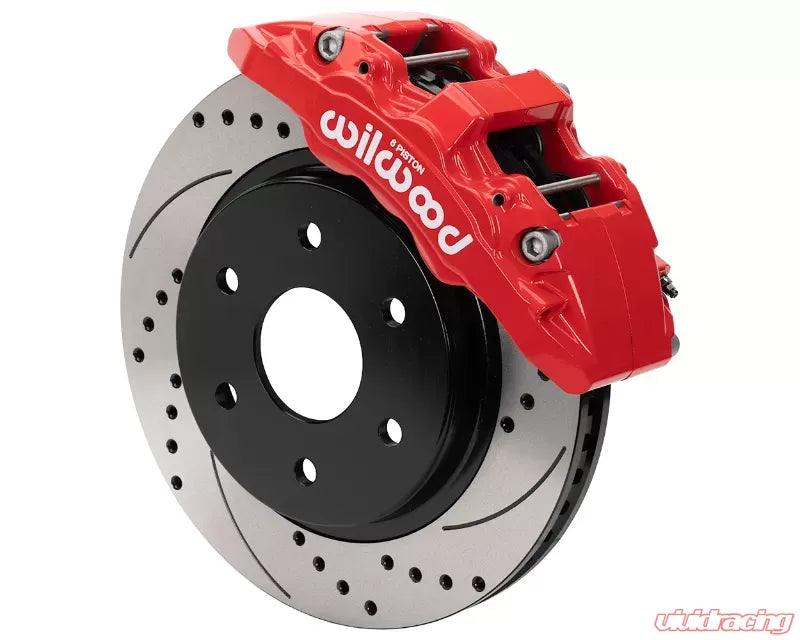

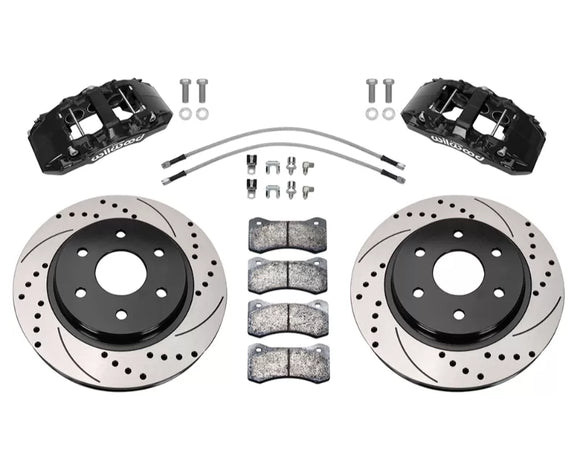

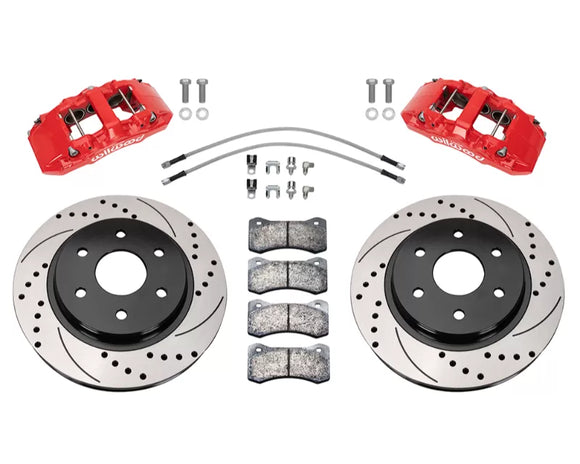

Raptor model Aero6-DM calipers are forged aluminum six piston Aerolite calipers designed for direct mounting to 2017-20 Ford F-150 Raptor truck spindles, and fit in most 17" or larger wheels. These kits provide better braking power and more thermal capacity for high-demand off-road and highway use, including towing, hauling, and commercial applications. Rigid Aero6-DM calipers with Wilwood performance brake pads deliver increased clamping force and more stopping power. 13.38" x 1.25" OEM style one-piece rotors of premium grade, long-grain carbon iron alloy provide maximum cooling for sustained high heat durability. Kits are fully compatible with OE rear brakes, master cylinder output, and ABS function of the listed vehicle application.
Kit Summary:
- Spindle Type: Factory Disc Spindle
- Mount Type: Lug
- Caliper Type: 6
- Rotor Diameter: 13.38
- Min Wheel Diameter Req'd: 17
- Left Hand - Part No: 120-16830-BK
- Right Hand - Part No: 120-16829-BK
- Type: AERODM
- Piston Count: 6
- Piston 1 Bore (in): 1.75
- Piston 2 Bore (in): 1.62
- Piston 3 Bore (in): 1.62
- Piston Area (In): 6.52
- Piston Type: Stainless
- Mount Type: Lug
- Brake Pad Plate: 6617
- Brake Pad Area (In): 11.1
- Brake Pad Volume (In): 5.2
- Pad Compound: Polymatrix Q
- Left Hand - Part No: 160-16718-BK
- Right Hand - Part No: 160-16717-BK
- Type: SRP Drilled Rotor & Hat
- Style: SRP Drilled & Slotted
- Surface Finish: Black Electro Coat
- Material: Iron
- Outside Diameter (in): 13.38
- Width (in): 1.25
- Vane Count: 48 V
- Design Type: SRP-BLK
- Bedded: No
- Dynamically Balanced: Yes
- Ford F-150 | Raptor 2017-2020
- For Instructions CLICK HERE
Other Part Numbers:
Wilwood #wil140-16808-D
