Yukon Chromoly Rear Axle Kit Dana 35 Jeep JL Non-Rubicon 29 Spline 2 Sides

Yukon Chromoly Rear Axle Kit Dana 35 Jeep JL Non-Rubicon 29 Spline 2 Sides

$892.01 CAD

Yukon Gear & Axle SKU: yukYA WAK-003

Earn [points_amount] when you buy this item.

Description Availability

YA WAK-003

Product Details

Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

  • Fits Dana 35 differential
  • 29 spline
  • LH and RH axle shafts measure 32.3” long
  • For both sides
  • Heavy duty 4340 chromoly construction

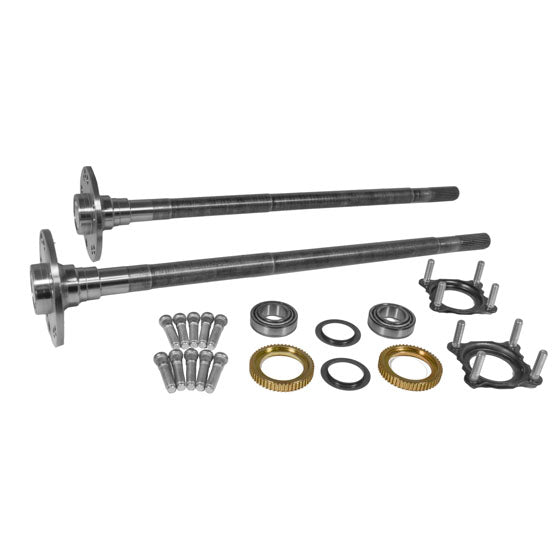

  • Includes two axle shafts, axle bearings, seals, bearing retainers, wheel studs, ABS ring, and dust shield

Technical Notes

  • Fits with Axle Code DRZ = D35/ M200 Rear; Both Left & Right Axles = 32.3" Long; Small Bearing (Set10) Axle = 1.562" ID / 2.875" OD Bearing; Double Drilled Flange 5 x 5" & 5 x 5.5" Bolt Pattern

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Upsell YESAXLE
Brand Yukon Gear & Axle
Prop65 Warning Not Applicable
Keywords ,32.3,4340,AXLE,BRG,BRGS,D35,DRZ,JL,KIT,LH,NON,REAR,RH,RUBICON,SMALL,wYA
Technical Notes
  • Fits with Axle Code DRZ = D35/ M200 Rear; Both Left & Right Axles = 32.3" Long; Small Bearing (Set10) Axle = 1.562" ID / 2.875" OD Bearing; Double Drilled Flange 5 x 5" & 5 x 5.5" Bolt Pattern
UPC 883584112266
ProxyNumber 11226
Width 9.00 in
Length 36.00 in
Depth 9.00 in
