V2 2.5TFSI JDY 7270/6870/7275 TTRS 8S/RS3 8V2 DAZA DNWA TURBO KIT-DIRECT FIT

New from JDY Performance!

Our Version 2 DAZA Full-Frame Turbo Kit is capable of making big power on your RS3 or TTRS.

Our kit utilizes only the best quality components to ensure your engine makes reliable power all day every day.

Select from one of three different Precision Gen2 CEA Turbochargers to determine your power level. (6870, 7270, or 7275)

Control boost with a TiAL MVR 44mm External Wastegate including all springs so you can tailor it to your setup! Available in 3 colors (Red, Silver and Purple)

Our Turbo kit includes everything you need to get your car up and running with no additional hardware or fabrication required!

This kit fits both Left Hand-Drive and Right-Hand Drive vehicles.

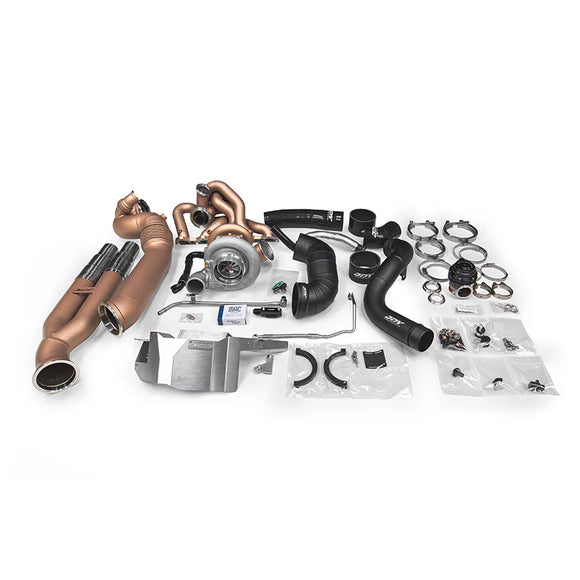

KIT INCLUDES:

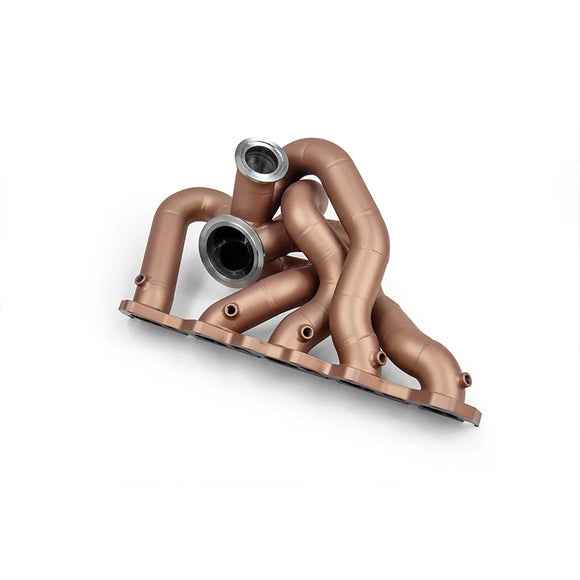

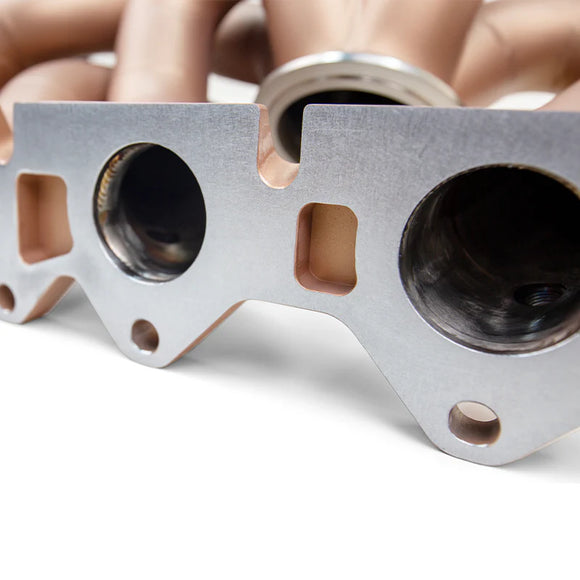

JDY V-Band Heat Shielded Turbo Manifold.

• Built in House.
• EGT Ports are added per cylinder for data acquisition and the best tune.
• 44mm External Wastegate Provision.
• Inconel Heat Shielding.

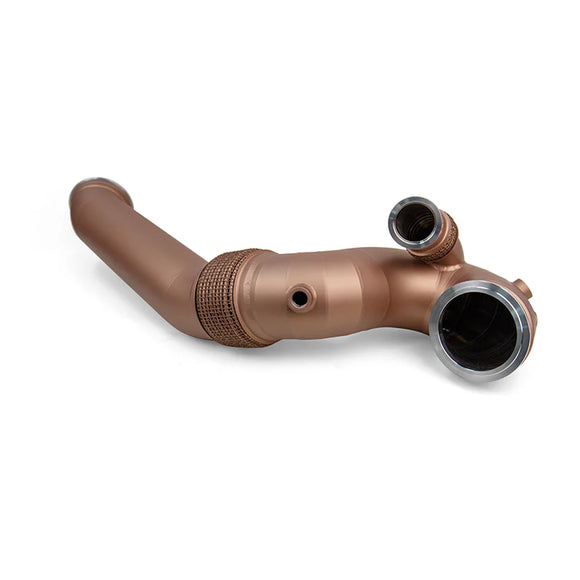

JDY V-Band Recirculated Downpipe

• 3.5" Diameter
• Inconel Heat Shielding
• Wastegate Dump Recirculated
• Flex Bellow for stress relief

JDY Midpipe

• 3.5" Diameter
• Inconel Heat Shielding
• Mates up to OEM Midpipes

JDY Installation Hardware

• JDY Turbo Inlet Pipe
• JDY Turbo Discharge pipe
• Includes Turbo Oil Fittings
• Oil Feed and Return Line
• Coolant Delete / Crossover pipe to loop the OE Water Lines
• V-Band Clamps
• Intake Clamps
• Turbo Manifold Studs + Nuts

TiAL MVR 44mm Wastegate

• Available in Red, Silver, and Purple
• Includes All Springs for the perfect boost control

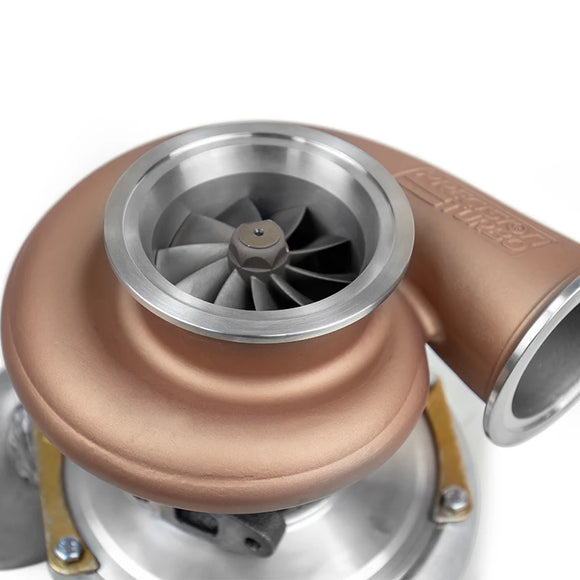

Precision Gen 2 CEA Turbocharger

• Exclusive GEN2 CEA®
  (Competition Engineered Aerodynamics) compressor wheel machined from a 2618 aluminum forging
• Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
• Higher efficiency and faster transient response for maximum power and performance

PICK ANY OF THE FOLLOWING DEPENDING ON YOUR POWER GOALS

PTE 6870 Gen 2 CEA

• Rated for 1000HP
• Ported S Compressor Cover. 4" Inlet, 2.5" Discharge
• 0.81 A/R V-Band 310 Stainless Steel Turbine Housing
• Welded Elbow for Plug 'n Play Use with our JDY KIT

PTE 7270 Gen 2 CEA

• Rated for 1100hp
• Ported H Compressor Cover. 4" Inlet, 3.0" Discharge
• 0.81 A/R V-Band 310 Stainless Steel Turbine Housing
• Welded Elbow for Plug 'n Play Use with our JDY KIT

PTE 7275 Gen 2 CEA

• Rated for 1200hp

• Ported H Compressor Cover. 4" Inlet, 3.0" Discharge
• 0.84 A/R V-Band 310 Stainless Steel Turbine Housing
• Welded Elbow for Plug 'n Play Use with our JDY KIT
