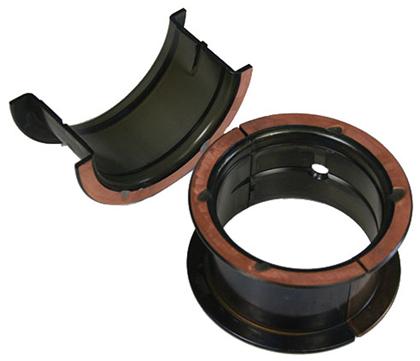

4M2737H-STD
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications.
Features:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
- Size: STD, .025, .25
- Oil Clearance: Standard
- Half Type: Identical Halves
- Material: Tri-metal Hardened Steel Backs
- Min Std Shaft Size: 2.4784 in / 62.951 mm
- Max Std Shaft Size: 2.4793 in / 62.974 mm
- Min Std Tunnel Size: 62.974in / 66.645 mm
- Max Std Tunnel Size: 2.6249 in / 66.672mm
- Max Wall at Crown: 0.072 in / 1.83 mm
- Max Overall Length: 0.748in / 19 mm
Other Part Numbers:
ACL #acl4M2737H-STD
1993-1997 INFINITI J30 Base V6.2960cc Engine Components::Bearings
1993-1997 INFINITI J30 T V6.2960cc Engine Components::Bearings
1990-1992 INFINITI M30 Base V6.2960cc Engine Components::Bearings
1997-2000 INFINITI QX4 Base V6.3275cc Engine Components::Bearings
1987-1988 Nissan 200SX SE V6.2960cc Engine Components::Bearings
1990-1996 Nissan 300ZX 2+2 V6.2960cc Engine Components::Bearings
1990-1996 Nissan 300ZX Base V6.2960cc Engine Components::Bearings
1984-1996 Nissan 300ZX Turbo V6.2960cc Engine Components::Bearings
1990-1994 Nissan D21 Base V6.2960cc Engine Components::Bearings
1990-1994 Nissan D21 SE V6.2960cc Engine Components::Bearings
1994 Nissan D21 XE V6.2960cc Engine Components::Bearings
1999-2003 Nissan Frontier SE V6.3275cc Engine Components::Bearings
1999-2004 Nissan Frontier XE V6.3275cc Engine Components::Bearings
1985-1986 Nissan Maxima GL V6.2960cc Engine Components::Bearings
1987-1994 Nissan Maxima GXE V6.2960cc Engine Components::Bearings
1985-1994 Nissan Maxima SE V6.2960cc Engine Components::Bearings
1994-1995 Nissan Pathfinder LE V6.2960cc Engine Components::Bearings
1996-2000 Nissan Pathfinder LE V6.3275cc Engine Components::Bearings
1987-1995 Nissan Pathfinder SE V6.2960cc Engine Components::Bearings
1996-2000 Nissan Pathfinder SE V6.3275cc Engine Components::Bearings
1987-1995 Nissan Pathfinder XE V6.2960cc Engine Components::Bearings
1996-2000 Nissan Pathfinder XE V6.3275cc Engine Components::Bearings
1995 Nissan Pickup SE V6.2960cc Engine Components::Bearings
1995 Nissan Pickup XE V6.2960cc Engine Components::Bearings
1999-2002 Nissan Quest GLE V6.3275cc Engine Components::Bearings
1993-1998 Nissan Quest GXE V6.2960cc Engine Components::Bearings
1999-2002 Nissan Quest GXE V6.3275cc Engine Components::Bearings
1999-2002 Nissan Quest SE V6.3275cc Engine Components::Bearings
1993-1998 Nissan Quest XE V6.2960cc Engine Components::Bearings
2000-2004 Nissan Xterra SE V6.3275cc Engine Components::Bearings
2000-2004 Nissan Xterra XE V6.3275cc Engine Components::Bearings
