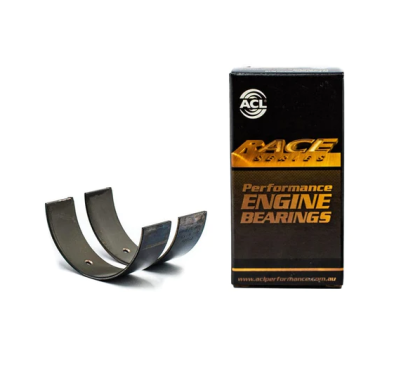

ACL Lexus V8 1UZFE/2UZFE/3UZFE Standard Size High Performance Rod Bearing Set

ACL Lexus V8 1UZFE/2UZFE/3UZFE Standard Size High Performance Rod Bearing Set

$199.99 CAD $302.91 CAD Save $102.92 CAD

ACL SKU: 8B8091H-STD

Earn [points_amount] when you buy this item.

Description Availability

8B8091H-STD

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications.

Features:
  • High strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Specifications:
  • Size: STD, 025, .25
  • Oil Clearance: Standard
  • Half Type: Identical Halves
  • Material: Tri-metal Hardened Steel Backs
  • Min Std Shaft Size: 1.889in / 47.98 mm
  • Max Std Shaft Size: 1.8898in / 48 mm
  • Min Std Tunnel Size: 2.008in / 51.004mm
  • Max Std Tunnel Size: 2.0088in / 51.024mm mm
  • Max Wall at Crown: 2.0088in / 51.024mm
  • Max Overall Length: 0.6063in / 15.40mm

Other Part Numbers:
ACL #acl8B8091H-STD

1998-2000 Lexus GS400 Base V8.3969cc Engine Components::Bearings
2003-2009 Lexus GX470 Base V8.4663cc Engine Components::Bearings
1990-2000 Lexus LS400 Base V8.3969cc Engine Components::Bearings
1998-2007 Lexus LX470 Base V8.4663cc Engine Components::Bearings
1992-2000 Lexus SC400 Base V8.3969cc Engine Components::Bearings
2003-2009 Toyota 4Runner Limited V8.4663cc Engine Components::Bearings
2003-2009 Toyota 4Runner Sport V8.4663cc Engine Components::Bearings
2003-2009 Toyota 4Runner SR5 V8.4663cc Engine Components::Bearings
1998-2007 Toyota Land Cruiser Base V8.4663cc Engine Components::Bearings
2001-2007 Toyota Sequoia Limited V8.4663cc Engine Components::Bearings
2001-2009 Toyota Sequoia SR5 V8.4663cc Engine Components::Bearings
2005-2009 Toyota Tundra Base V8.4663cc Engine Components::Bearings
2000-2009 Toyota Tundra Limited V8.4663cc Engine Components::Bearings
2000-2009 Toyota Tundra SR5 V8.4663cc Engine Components::Bearings
